Specifications Appendix A
Maximum output voltage – 24V DC operation
Maximum output currrent per point – 5V DC operation
Maximum output current per point – 24V DC operation
-20
-10 0
10
20
30 40 50 60
70
0
5
10
15
20
25
30
35
Volts (DC)
Ambient Temperature (°C)

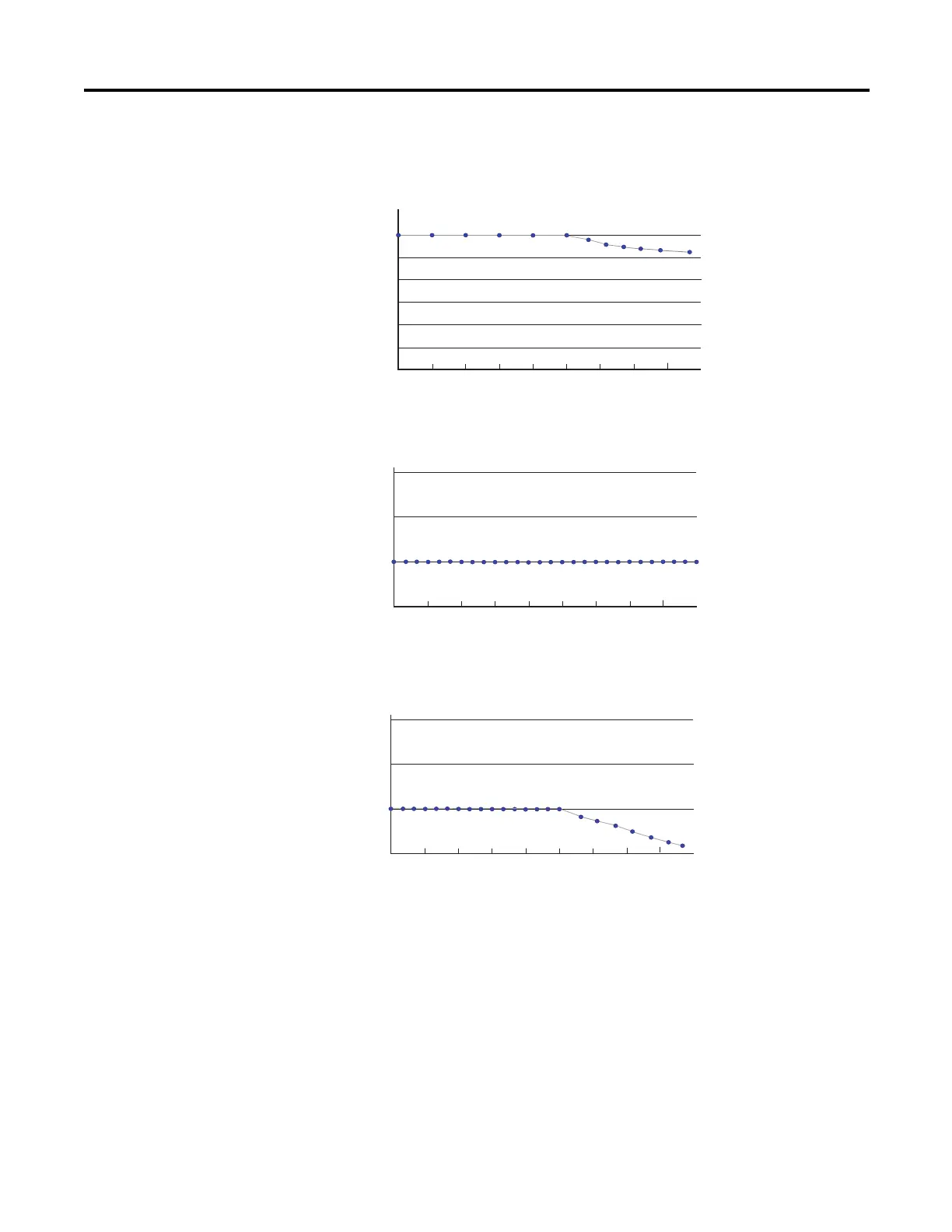

Voltage Derating Based on Temperature
26.4V DC @ 65 °C
-20
-10 0
10
20
30 40 50 60
70
0
0.5
1
1.5
Current per points (A)
Ambient Temperature (°C)
Current Derating Based on Temperature
-20
-10 0
10
20
30 40 50 60
70
0
0.5
1
1.5
Current per points (A)
Ambient temperature (°C)
Current derating based on temperature
