Quickstart Appendix B
Setup and Wiring

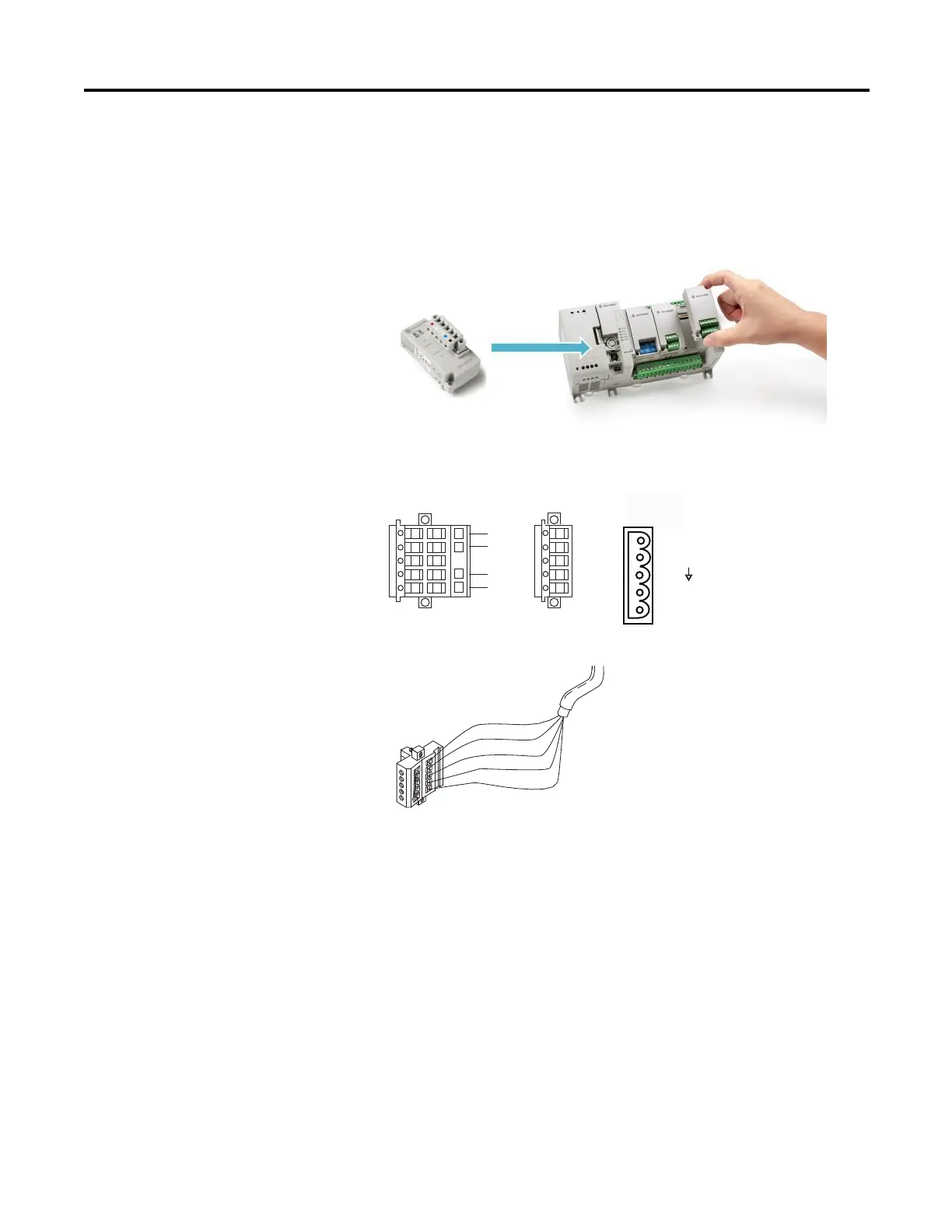

1. Insert your 2080-DNET20 module into the designated plug-in slot in your
Micro800 controller.
2. Next, wire your 2080-DNET20 plug-in following the diagram
shown below.
Color Chips (dots)
Red Dot
Black Dot
Blue Dot
White Dot
10-position Plug
5-position Plug
D
D
D
D
D
Linear Plug
10-position
Drop Line or
DeviceNet
Trunk Cable
Red
White
Bare
Blue
Black
DeviceNet
Port Pinout
V+ (RED)
CANH (WHITE)
SHIELD
CANL (BLUE)
V- (BLACK)
20474
