Chapter 1
Micro800 Plug-in Modules
Plug-in modules enhance the functionality of a base unit controller. With these
modules, you can:
• Extend the functionality of embedded I/O without increasing the
footprint of your controller.
• Improve performance by adding additional processing power or
capabilities.
• Add additional communication functionality.

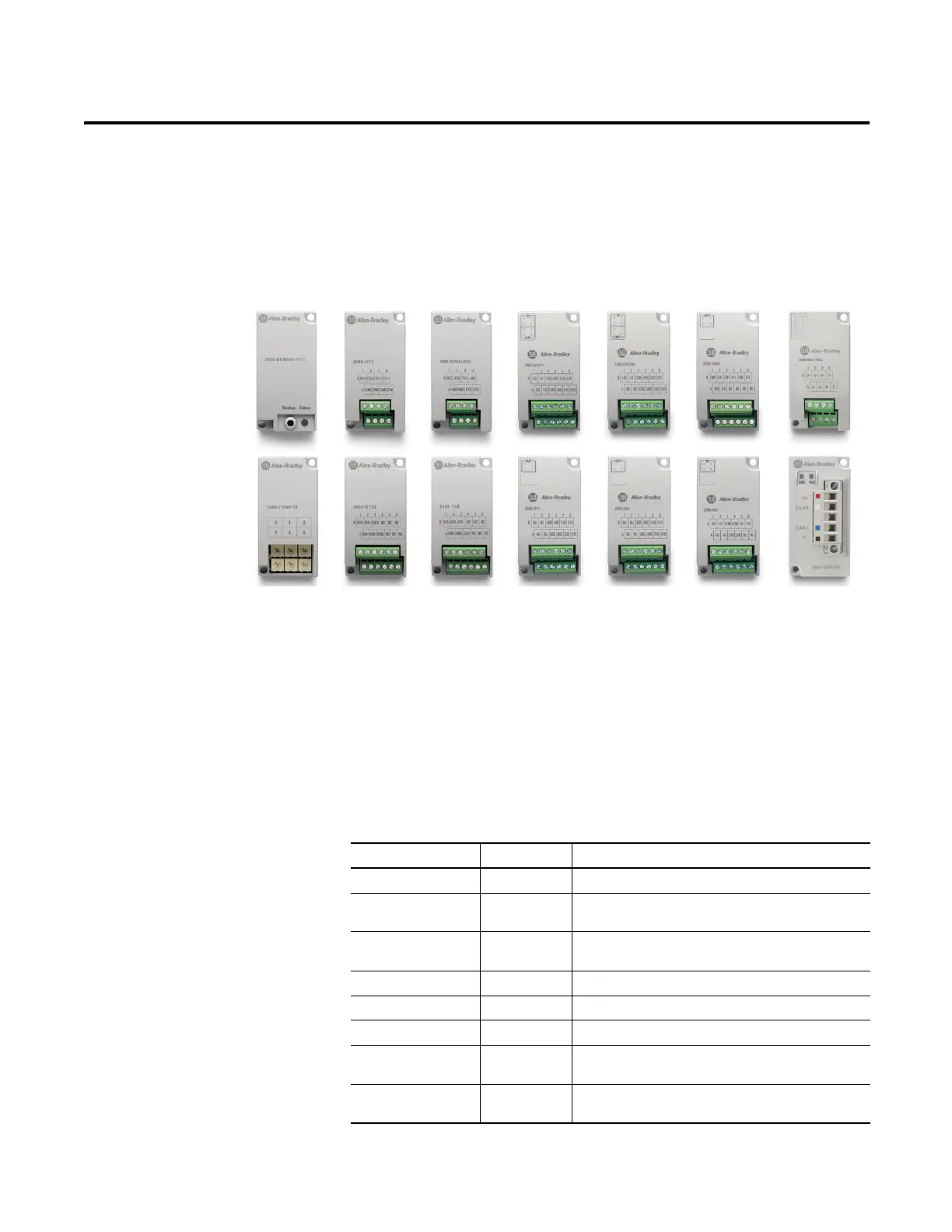

Micro820, Micro830, and Micro850 support the following plug-in modules:
Micro800 Plug-in Modules
Module Type Description
2080-IQ4 Digital 4-point, 12/24V DC Sink/Source input
2080-IQ4OB4 Digital 8-point, Combo, 12/24V DC Sink/Source input
12/24V DC Source output
2080-IQ4OV4 Digital 8-point, Combo, 12/24V DC Sink/Source input
12/24V DC Sink output
2080-OB4 Digital 4-point, 12/24V DC Source output
2080-OV4 Digital 4-point, 12/24V DC Sink output
2080-OW4I Digital 4-point, AC/DC Relay output
2080-IF2 Analog 2-channel, Non-isolated unipolar voltage/current
analog input
2080-IF4 Analog 4-channel, Non-isolated unipolar voltage/current
analog input
