Allen-Bradley ArmorBlock 1732E - Interpret LED Indicators

1732E ArmorBlock 2 Port Ethernet Module 13
Publication
1732E-IN004A-EN-E - November 2009

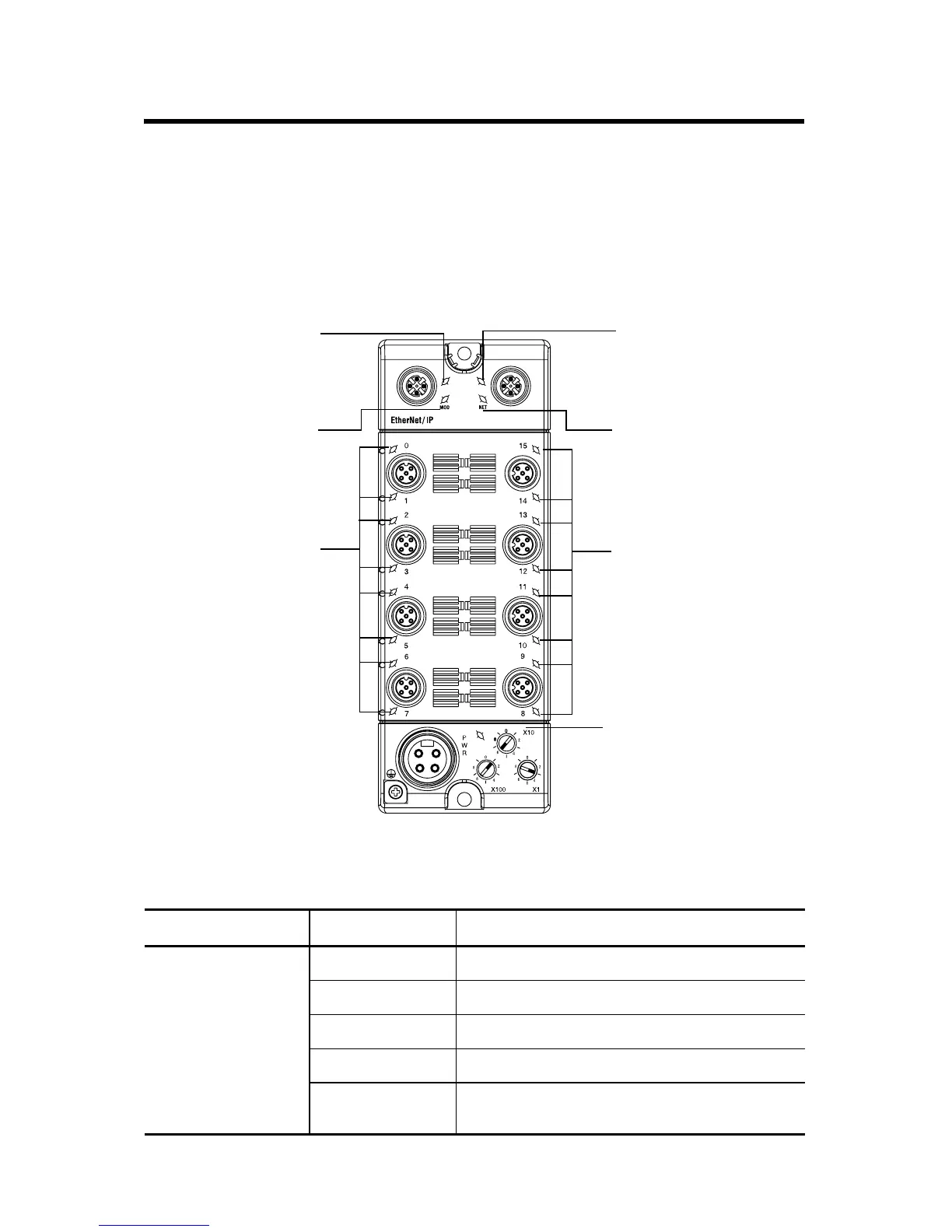

Interpret LED Indicators
This module has the following indicators:
• Network, Module, and Link status indicators for EtherNet/IP
• Auxiliary Power indicator
• Individual I/O status indicators for inputs and outputs
Indicator Status for Modules
Status Description
Module status Off No power applied to device.
Flashing red/green Device is in self-test.
Green Device operating normally.
Flashing red Recoverable fault.
Red Unrecoverable fault – may require device
replacement.
LINK 1 LINK 2
Link
status
indicator
Auxiliary power
status indicator
Module
status
indicator
44945
I/O status
indicators
Link
status
indicator
Network
status
indicator
I/O status
indicators
