4 1732E ArmorBlock 2 Port Ethernet Module
Publication
1732E-IN004A-EN-E - November 2009
About the ArmorBlock 2 Port Ethernet Module
The EtherNet/IP ArmorBlock is a 24V DC I/O module that communicates
via EtherNet/IP. The sealed IP65, IP67 and IP69K housing of these modules
requires no enclosure. Note that environmental requirements other than IP65,
IP67 and IP69K may require an additional appropriate enclosure. I/O
connectors are sealed M12 style.
EtherNet/IP networks use advanced network technology, for example,
producer/consumer communication, to increase network functionality and
throughput.

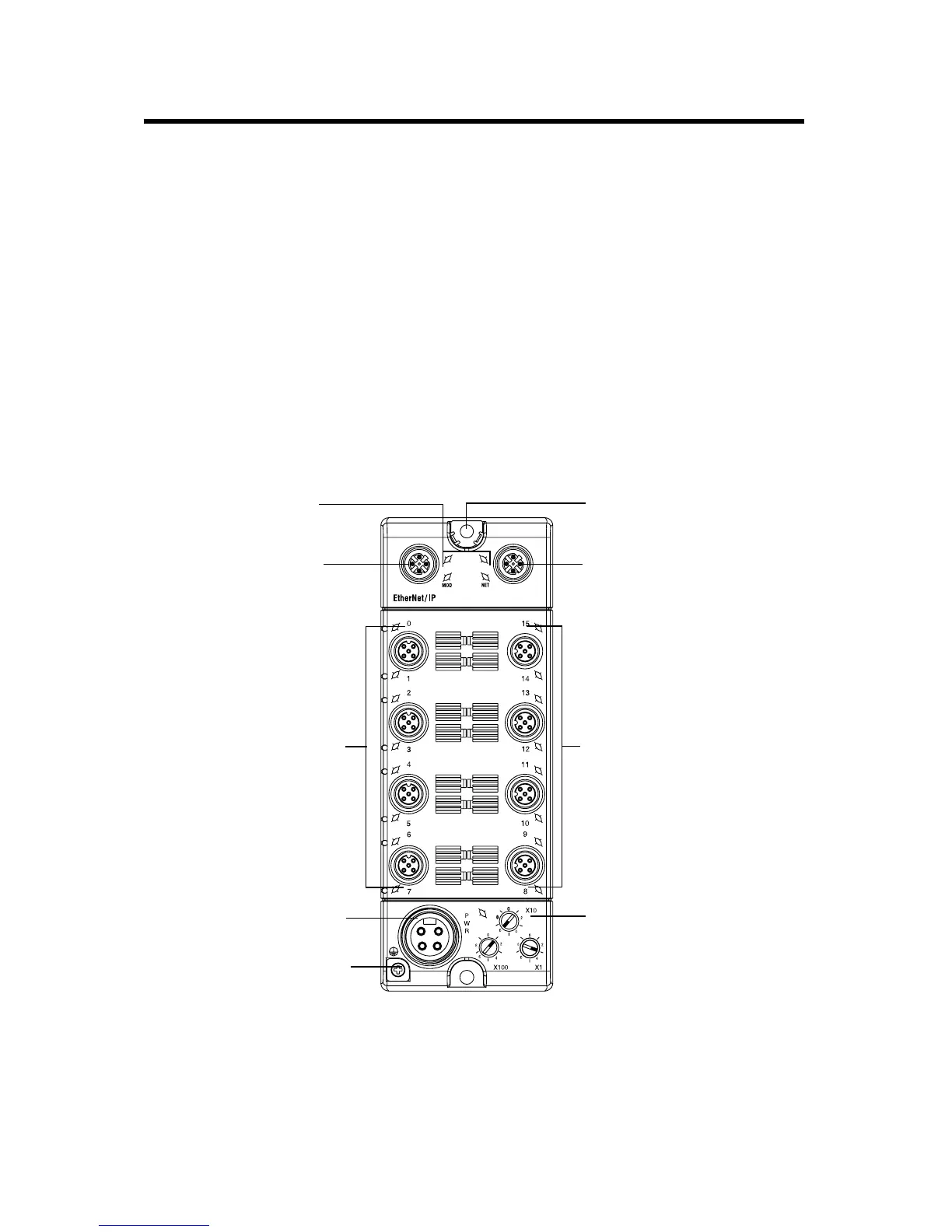

EtherNet/IP ArmorBlock 16-Point I/O Module
(1)
Functional Earth grounds the I/O block’s EtherNet/IP communication circuitry which is designed to
mitigate the effect of noise on the network. Refer to EtherNet/IP Connectors on page 9 for
connections.
(2)
Protective Earth is provided for the grounding of field devices and is internally connected to each Pin 5 of
the M12 I/O connectors. Refer to I/O Connectors on page 8 for connections.
LINK 1 LINK 2
44945
Status LEDs
Auxiliary power
Functional Earth
(1)
Node address
switches
Protective Earth
(2)
EtherNet/IP D-Code
M12 connector
EtherNet/IP D-Code
M12 connector
M12 I/O connectors M12 I/O connectors
