8 1732E ArmorBlock 2 Port Ethernet Module
Publication
1732E-IN004A-EN-E - November 2009
Mount the Module in High Vibration Areas
If you mount the module in an area that is subject to shock or vibration, we
recommend you use a flat and a lock washer to mount the module. Mount the
flat and the lock washer as shown in the mounting illustration. Torque the
mounting screws to 1.13 Nm (10 in-lb).

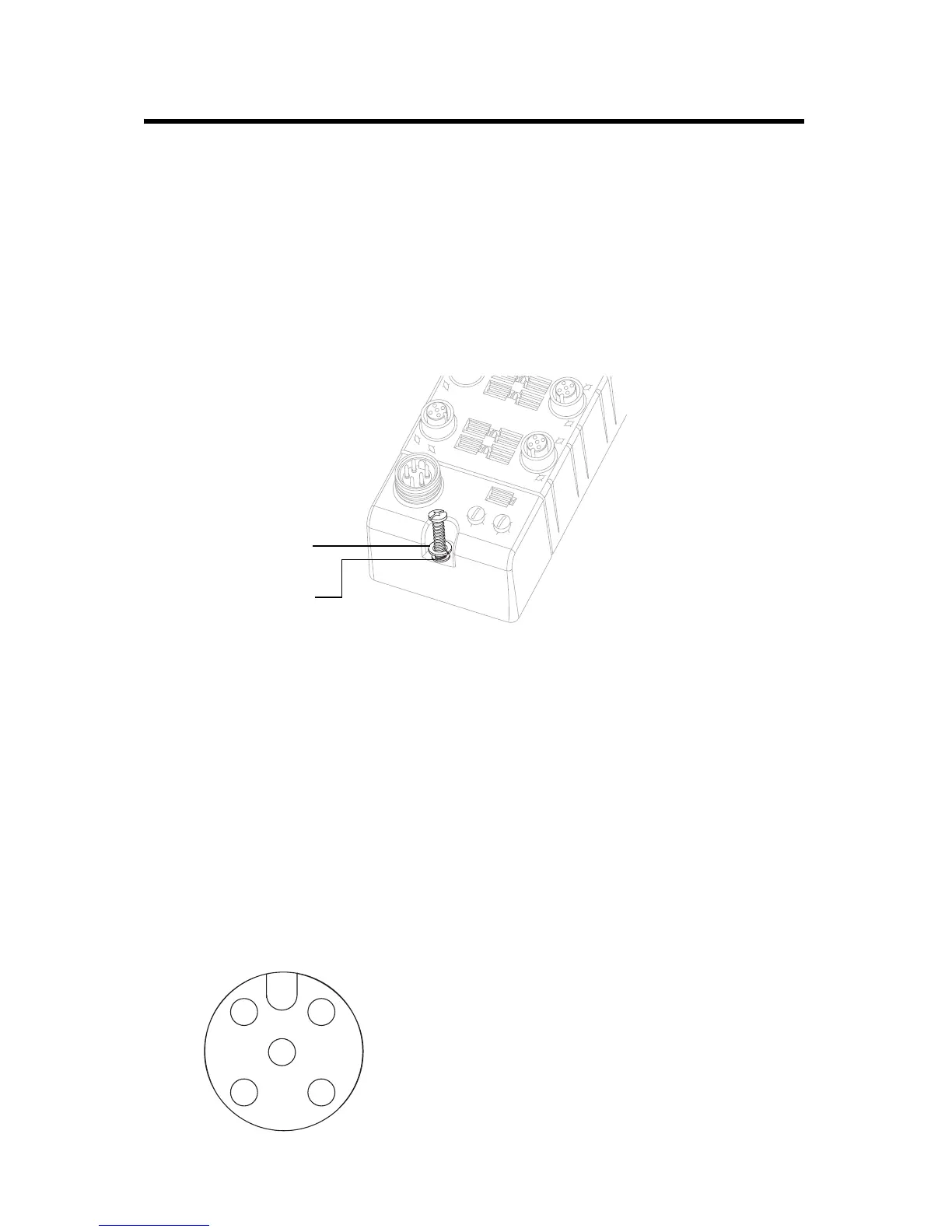

High Vibration Area Mounting
Connect the I/O, Network and Auxiliary Cables to the ArmorBlock Module
The ArmorBlock EtherNet/IP family has 5-pin micro-style connectors. We
provide caps to cover the unused connectors on your module. Connect the
quick-disconnect cord sets you selected for your module to the appropriate
ports.
I/O Connectors
Refer to the pinout diagrams for the I/O connectors.
44766
Lock washer
Flat washer
1 2
4
5
3
Micro-style 5-Pin Input Female Connector
(View into connector)
Pin 1 Sensor source voltage
Pin 2 Input B
Pin 3 Return
Pin 4 Input A
Pin 5 PE
