Allen-Bradley CompactLogix 5370 L1 Quick Start

24 Rockwell Automation Publication IASIMP-QS024C-EN-P - August 2014
Chapter 1 Prepare the CompactLogix 5370 L1 Controller Hardware

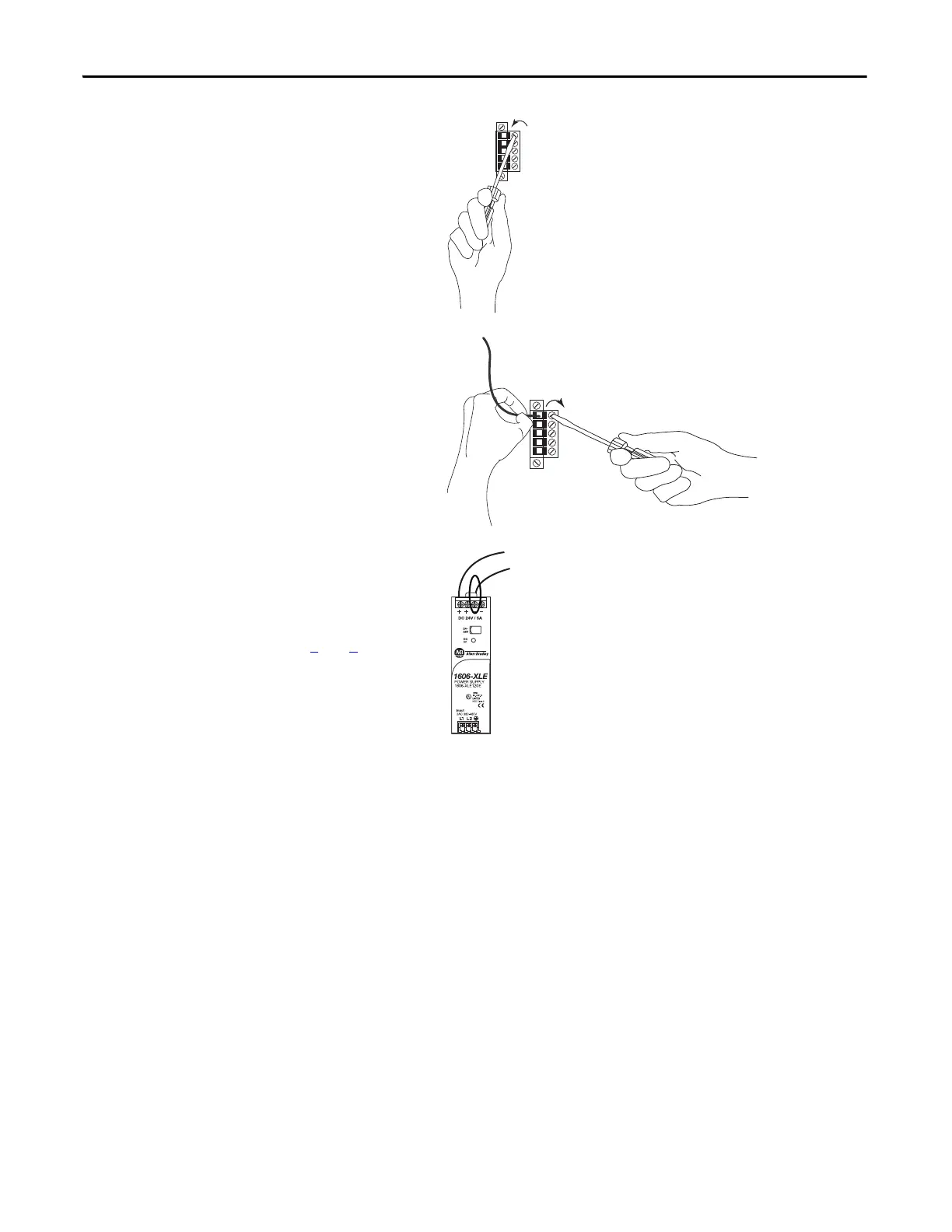

6. Open the top terminal on the removable
connector.
7. Insert the wire that is connected to the
24V DC+ terminal on the external power
supply to the VDC + terminal on the
removable connector and close the terminal.
8. Connect a wire to a 24V DC- terminal on
the power supply.
9. Connect the other end of the wire to the
VDC - terminal on the removable
connector by repeating steps 6
and 7.
10. Plug the removable connector into the
controller.
