Chapter 2 Install the CompactLogix 5370 L2 Controller

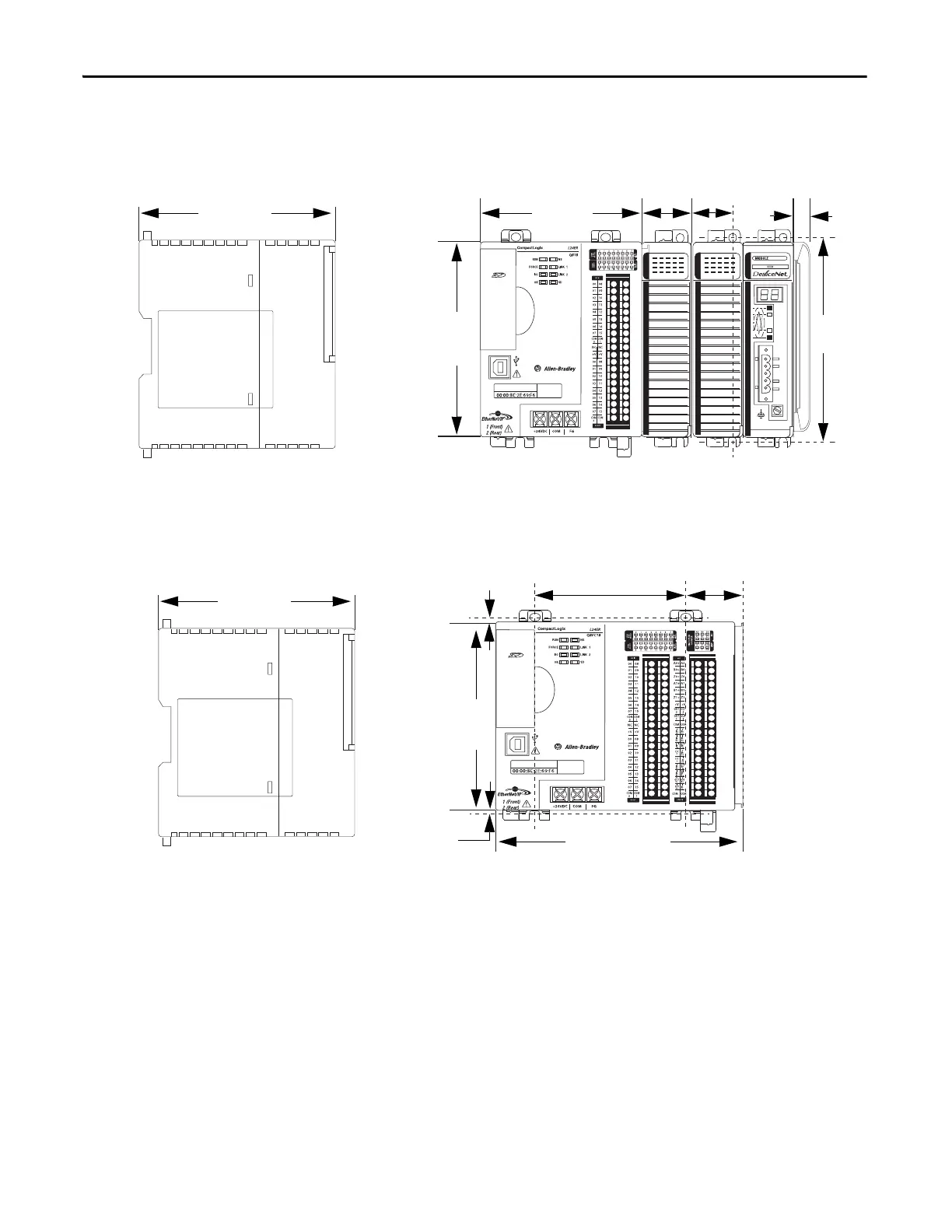

This graphic shows the system dimensions for the 1769-L24ER-QB1B controller
with expansion modules installed.
This graphic shows the system dimensions for the
1769-L24ER-QBFC1B controller.
118.00 mm
(4.65 in.)
115.00 mm
(4.53 in.)
35.00 mm
(1.38 in.)
105 mm
(4.13 in.)
18.00 mm
(0.71 in.)
25.00 mm
(0.98 in.)
126.6 mm
(4.98 in.)
118.00 mm
(4.65 in.)
105 mm
(4.13 in.)
140.00 mm
(5.51 in.)
27.65 mm
(1.09 in.)
84.70 mm
(3.33 in.)
3.06 mm
(0.12 in.)
2.8 mm
(0.12 in.)
