Install the CompactLogix 5370 L3 Controller Chapter 3
Before you mount a CompactLogix 5370 L3 control system, consider
the following:
• Minimum Spacing
• System Dimensions
• Power Supply Distance Rating
Minimum Spacing

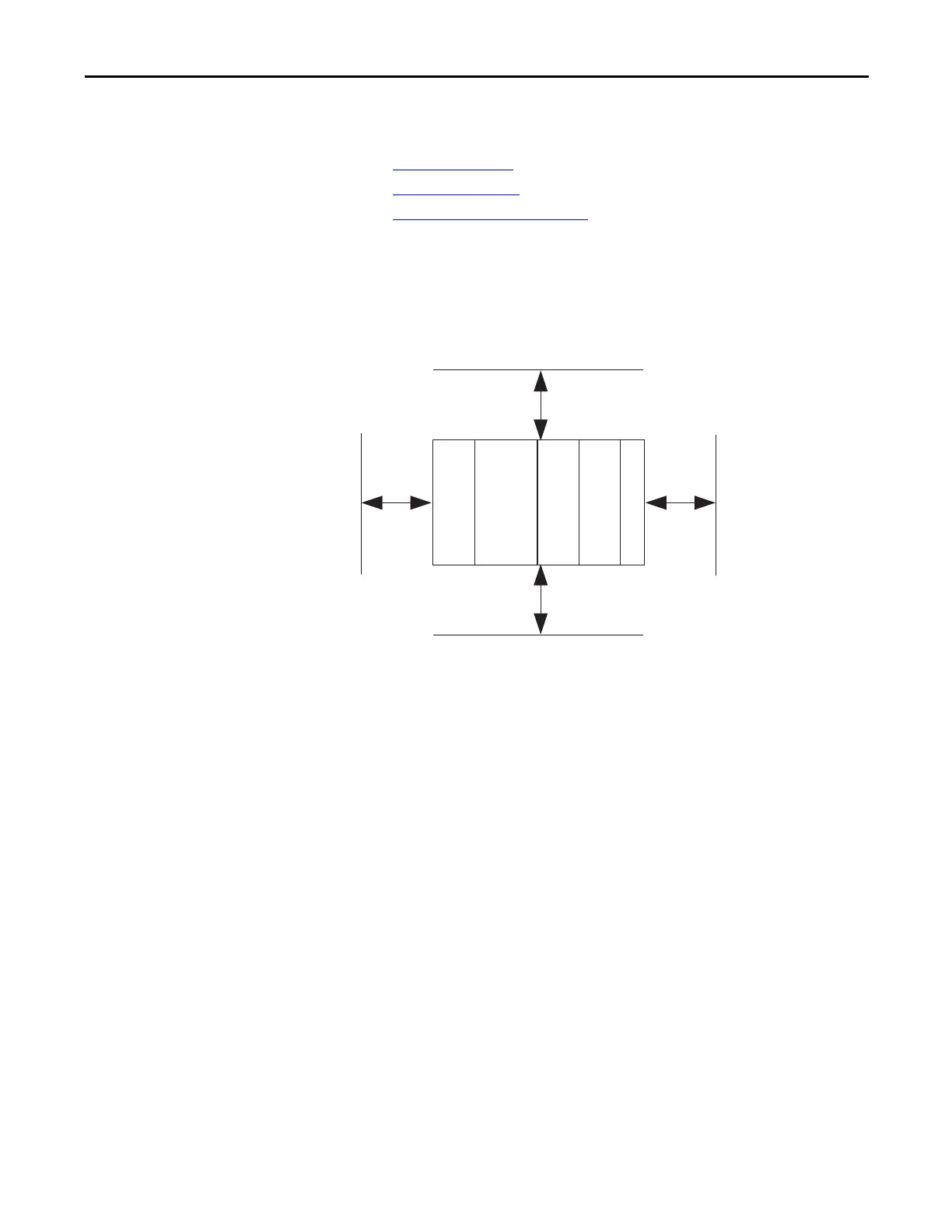

Maintain spacing from enclosure walls, wireways, and adjacent equipment. Allow
50 mm (2 in.) of space on all sides, as shown. This spacing provides ventilation
and electrical isolation.
Bottom
Side Side
Top
CompactLogix 5370 L3 Controller
Power Supply
Compact I/O Module
End Cap
50 mm
(2 in.)
50 mm
(2 in.)
50 mm
(2 in.)
50 mm
(2 in.)
Compact I/O Module
