Rockwell Automation Publication 193-UM013B-EN-P - December 2019 17
Troubleshooting Chapter 3
Tab le 5 lists the fault and status codes for the remote indication and display
modules.

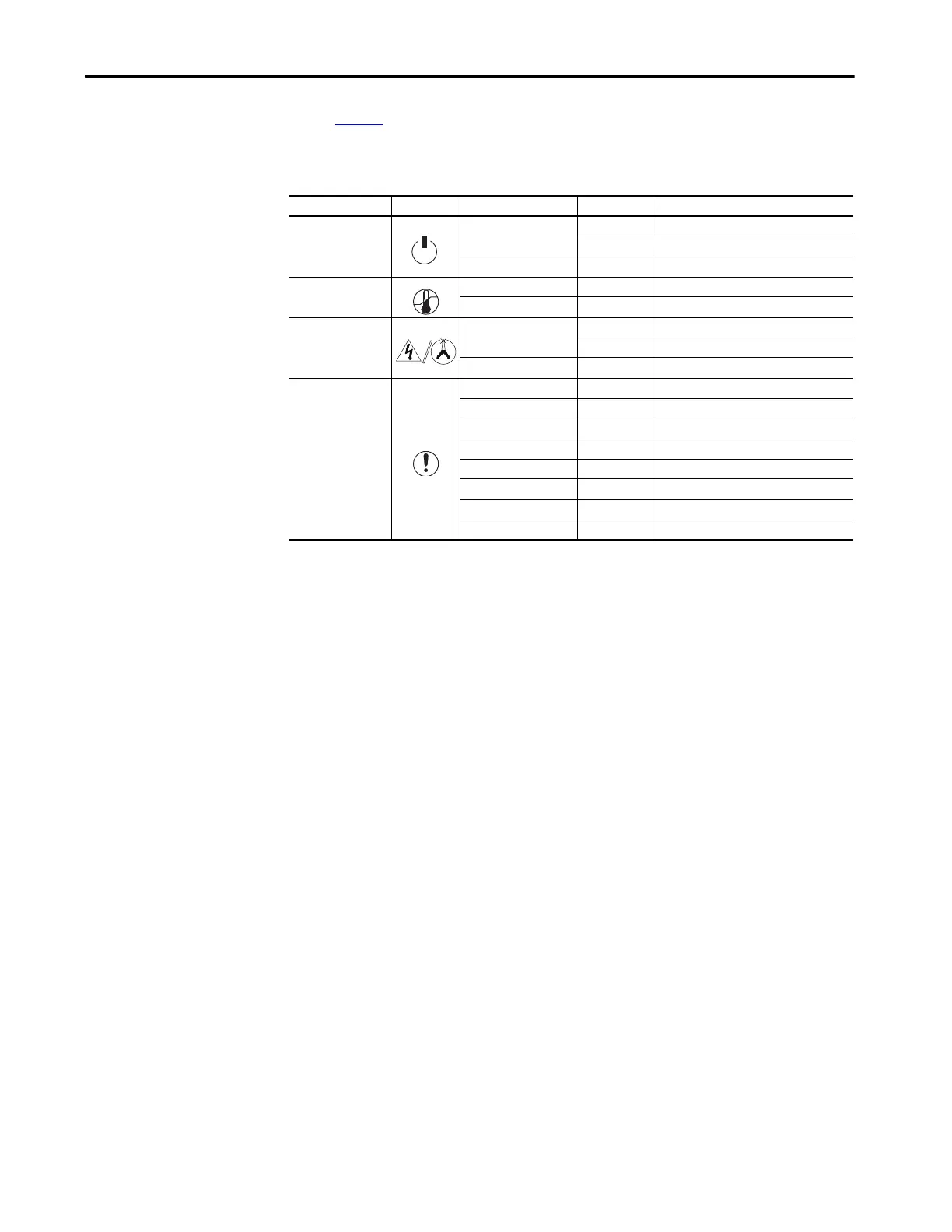

Table 5 - 193-ERID and 193-E1ERIDN Remote Indication and Display Module Fault/Status Codes
Status Indicator Symbol Status Indicator Color Solid/Flashing Description
Module Power/Status
Green
Flashing Module powered
Solid Module powered and motor current present
Red Solid Hardware fault
Overload
Red Solid Overload trip
Amber Flashing Overload warning
(1)
Phase Loss
Red
Solid Short Circuit Trip
Flashing Phase Loss Trip
Amber Flashing Phase Loss Warning
(2)
Fault Status
Red 3 Flashing Ground Fault Trip
(3)
Amber 3 Flashing Ground Fault Warning
Red 5 Flashing Jam Trip
Amber 5 Flashing Jam Warning
(4)
Red 9 Flashing Welded Contact
(5)
Red 10 Flashing Comm Loss
Amber 10 Flashing Comm Warning
Red 11 Flashing Test Trip
(1) An Overload warning occurs when the E100 overload reaches 90% thermal capacity utilization (TCU ). The overload trips at 100% TCU.
(2) Phase Loss warning is active if the overload detects a Phase Loss condition. The warning is maintained for 3 seconds before a Phase
Loss Trip occurs.
(3) A Ground Fault trip occurs if the configured Ground Fault Level is reached for 100 ms.
(4) A Jam warning is active if the measured FLA is greater than the set Jam Level. The warning is active until the Jam Delay is reached. At this point,
the overload relay trips.
(5) Does not apply to the E100 relay.
