Rockwell Automation Publication 440C-WD001C-EN-P - June 2015 47

Single-wire Safety Chapter 8

Connected Components

Workbench Software

The Connected Components Workbench software shows two safety functions:

• SWS In #1 & Gate #1 → SWS Out #1 (Immediate OFF)

• SWS In #2 & Gate #2 → SWS Out #2 (Delayed OFF)

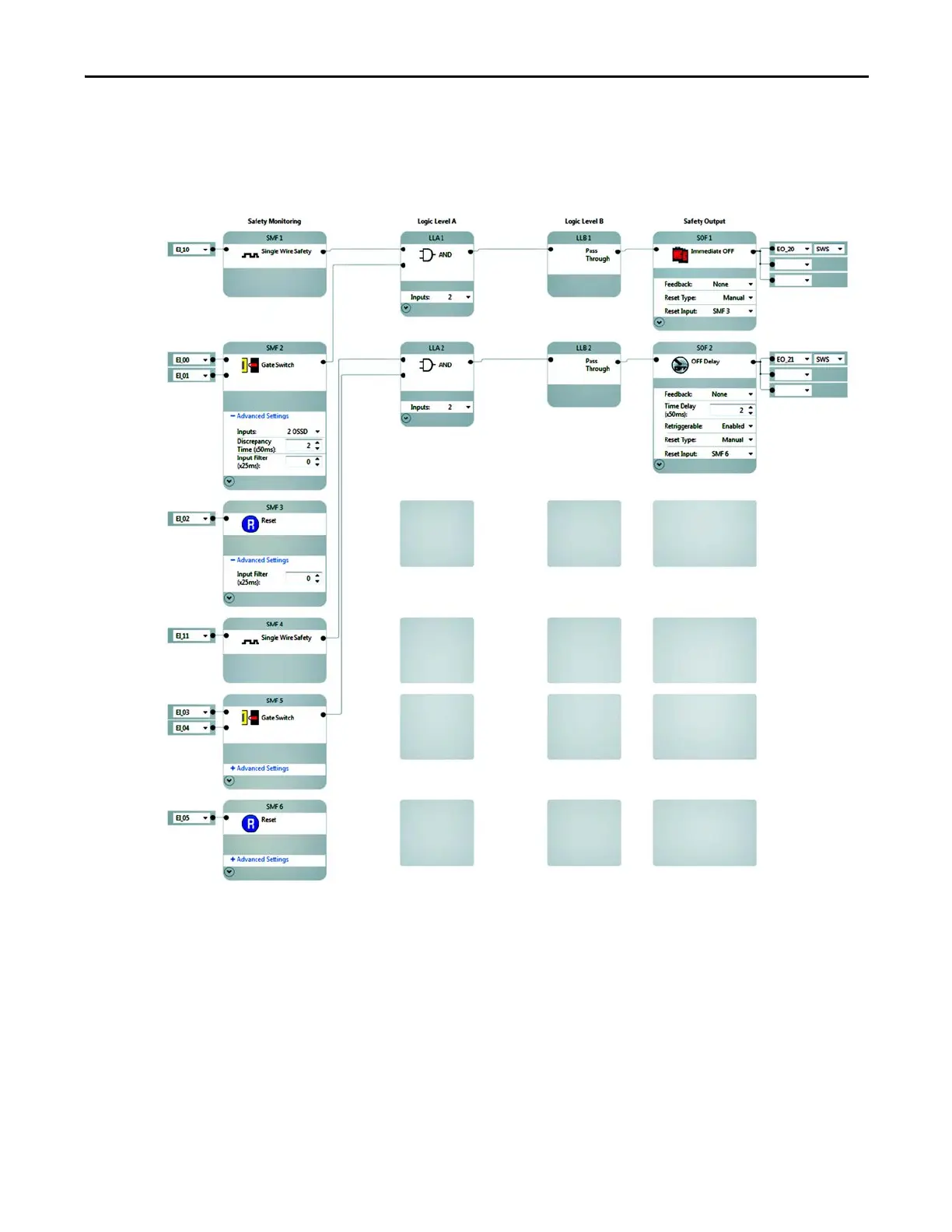

Figure 30 - Connected Components Workbench Example

Circuit Status

The safety gates are closed and the SWS safety inputs are active.
