Appendix E Use the Scope Function in KNX5100C Software

Use Popup Menu for Save

Options

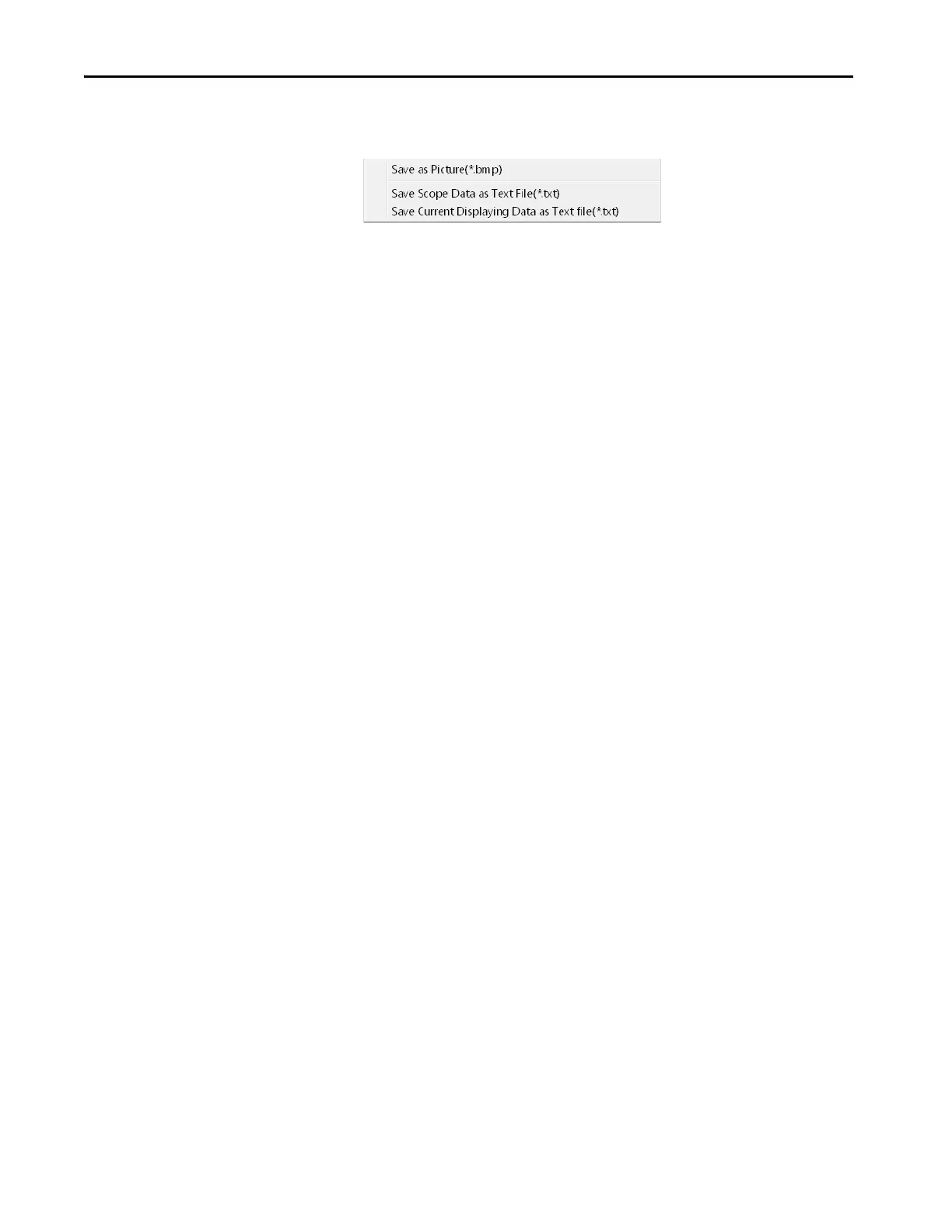

When you right-click the mouse on the screen, the following popup menu

appears.

• Save as a picture(*.bmp) Save the signal data as a picture (*.bmp file).

• Save Scope Data as Text File (*.txt) Save all signal data as a text file (*.txt

file).

• Save Data of Current Display as Text (*.txt) Save the signal data on the

current display as a text file (*.txt file).
