Micro820 20-Point Programmable Controllers 7
Publication 2080-IN009B-EN-P - April 2014
Overview
The Micro820 20-point controller is an economical brick style controller with embedded inputs
and outputs. It can accommodate up to two plug-in modules, any 24V DC output power supply
that meets minimum specifications such as the optional Micro800 power supply,
2080-PS120-240VAC.
The Micro820 controller can also support a remote LCD (2080-REMLCD) through an
RS232 port. This remote LCD can be mounted on the same DIN rail as the controller.

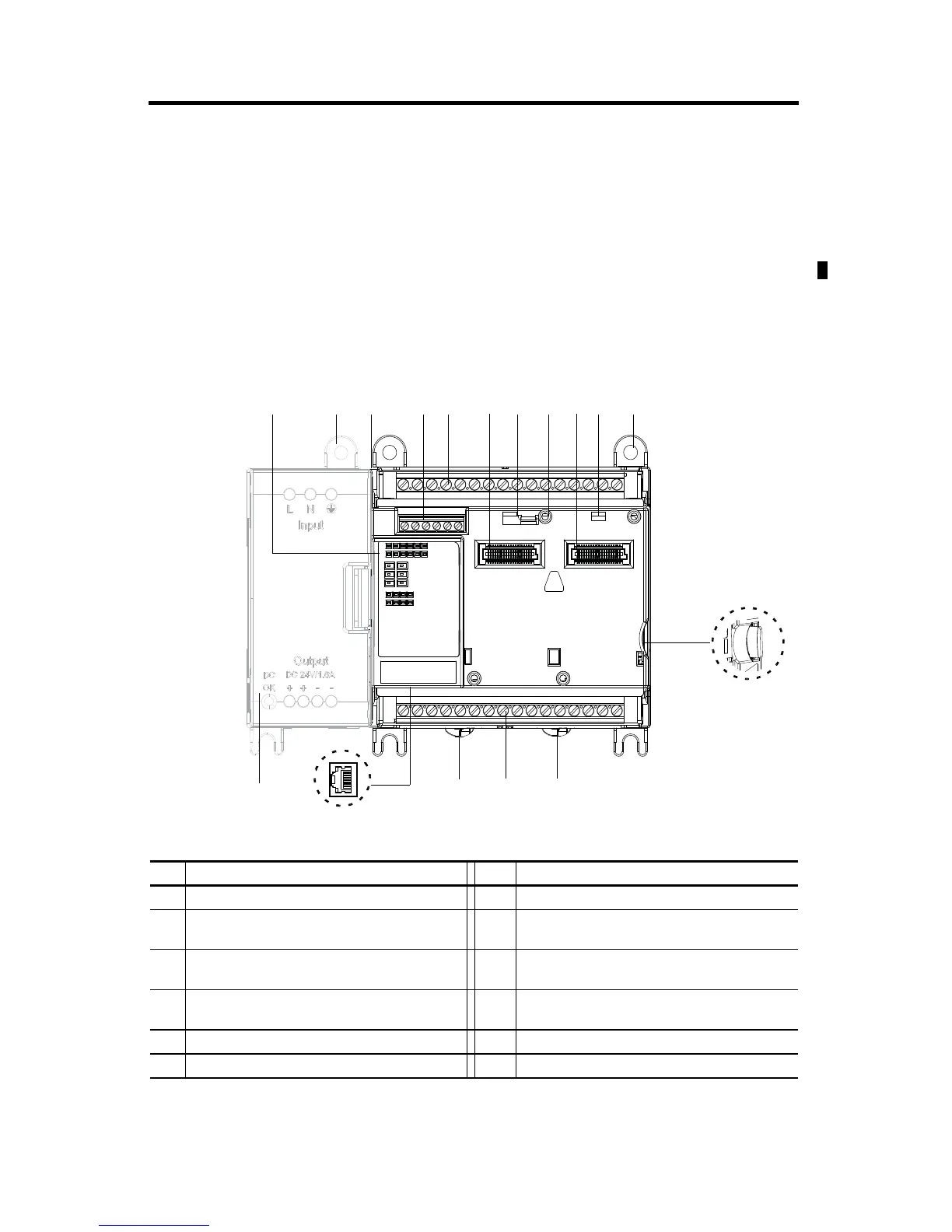

Controller Overview
Controller Description
Description Description
1 Status indicators 7 Plug-in latch
2 Optional power supply panel mounting latch
hole
8 Plug-in screw hole
3 Optional power supply slot 9 microSD™ (Micro Secure Digital)
card slot
4 RS232/RS485 non-isolated combo
serial port
10 DIN rail mounting latch
5 Removable/fixed
(1)
terminal block
(1)
Removable terminal blocks are available on modules with catalog numbers that end in R. Catalog numbers
that do not end in R have fixed terminal blocks.
11 RJ-45 Ethernet connector port
6 40-pin high speed plug-in connector 12 Optional power supply
46206
11
1
2
3
4
5
6
7
8
6
7
2
9
10
5
10
12
