Allen-Bradley Micro820 User Manual

Rockwell Automation Publication 2080-UM005B-EN-E - March 2015 79
Using the Micro800 Remote LCD Chapter 8
User-defined Screens

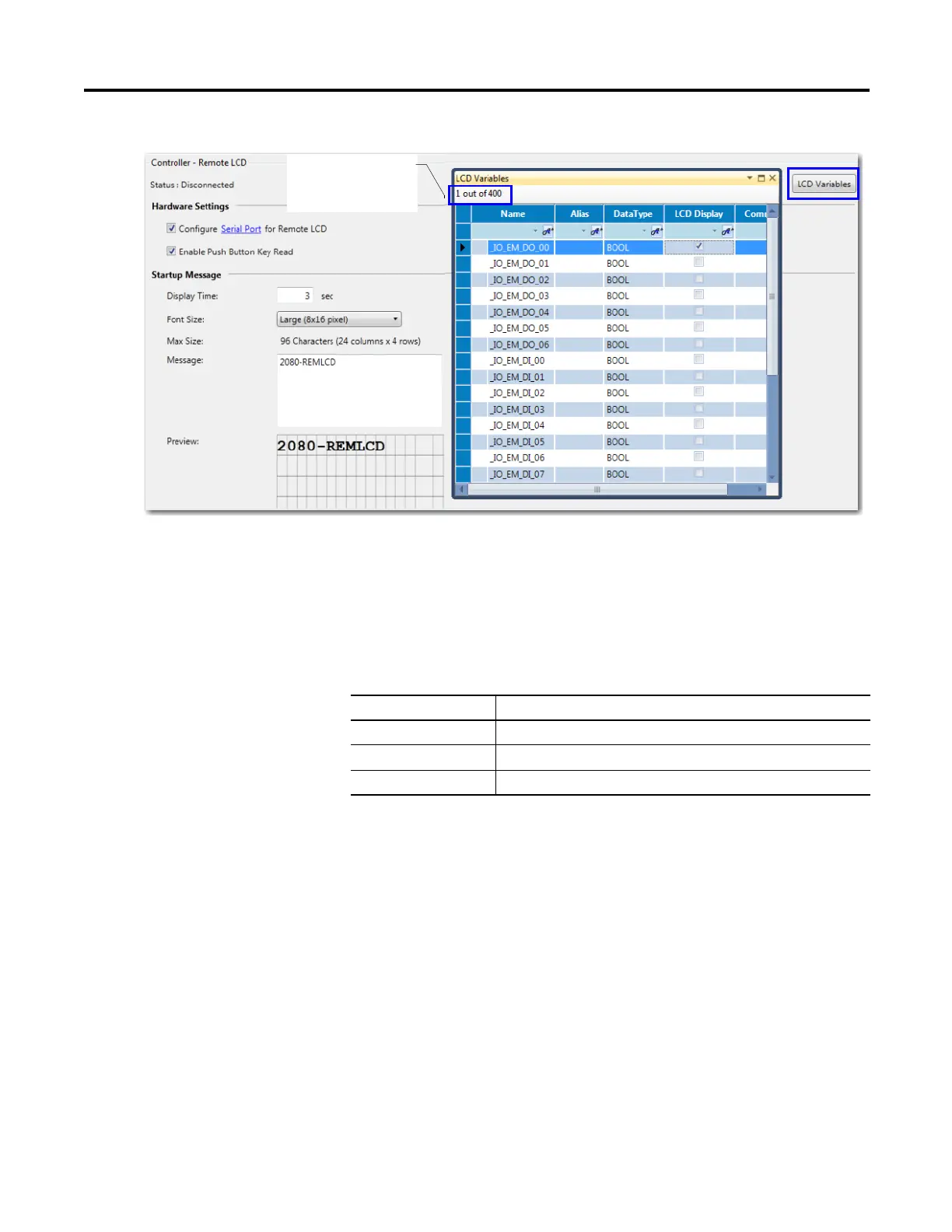

To create user-defined screens through Connected Components Workbench, you
can program the Remote LCD module using the following function blocks.
When the instructions are executing, the user-defined screen is shown, but when
in the Main Menu, the Remote LCD instructions are disabled. For example, the
KEY_READ_REM instruction will no longer read keypad input.
Shows how many bytes
(out of 400 allowed)
have been used up
2080-REMLCD Function Blocks
Function Block Name Description
LCD_REM Used to display string or numbers on the Remote LCD.
KEY_READ_REM Used to read keypad input on the Remote LCD.
LCD_BKLT_REM Used to change the backlight color and mode of the Remote LCD screen.

Allen-Bradley Micro820 Specifications

General

Processor	32-bit
Power Supply	24V DC
Programming Software	Connected Components Workbench
Series	Micro800
Mounting	DIN Rail
Memory	Embedded
Expansion	Yes
Controller Type	Programmable Logic Controller (PLC)
Communication	Ethernet/IP
Programming Language	Ladder Diagram, Function Block Diagram, Structured Text
I/O	Embedded
