Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 9

Hardware Overview Chapter 1

Micro850 and Micro870 controllers support Ethernet crossover cables

(2711P-CBL-EX04).

Ethernet Status Indication

Micro850 and Micro870 controllers also support two LEDs for EtherNet/IP™ to

indicate the following:

• Module status

• Network status

See Troubleshooting

on page 303 for descriptions of Module and Network status

indicators.

yellow LED

green LED

RJ-45 connector

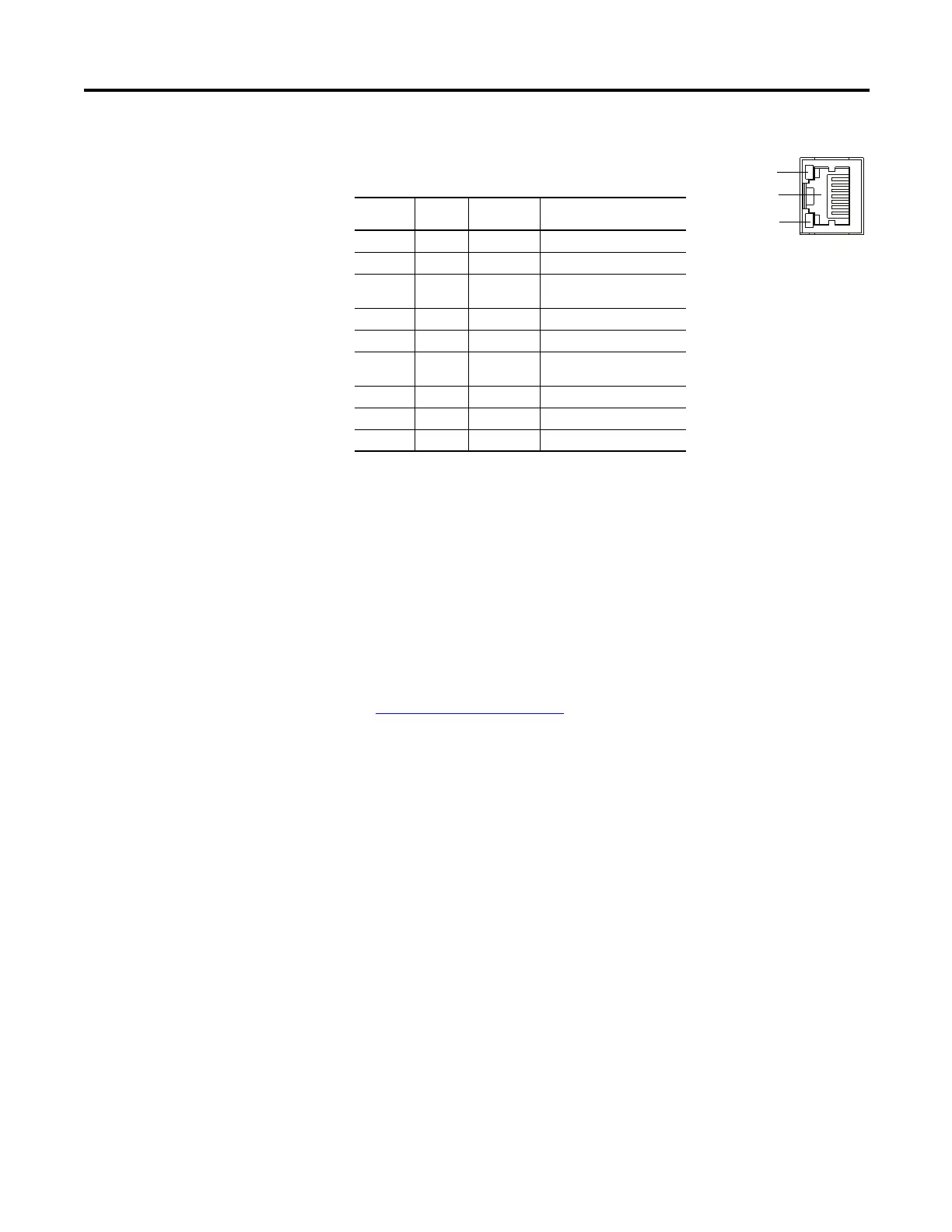

RJ-45 Ethernet Port Pin Mapping

Contact

Number

Signal Direction Primary Function

1 TX+ OUT Transmit data +

2 TX- OUT Transmit data -

3 RX+ IN Differential Ethernet Receive

Data +

4 Terminated

5 Terminated

6 RX- IN Differential Ethernet Receive

Data -

7 Terminated

8 Terminated

Shield Chassis Ground

45920

The yellow status LED

indicates Link (solid yellow)

or No Link (off).

The green status LED

indicates activity (blinking

green) or no activity (off).

Default Chapter3
