70 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019

Chapter 5 Communication Connections

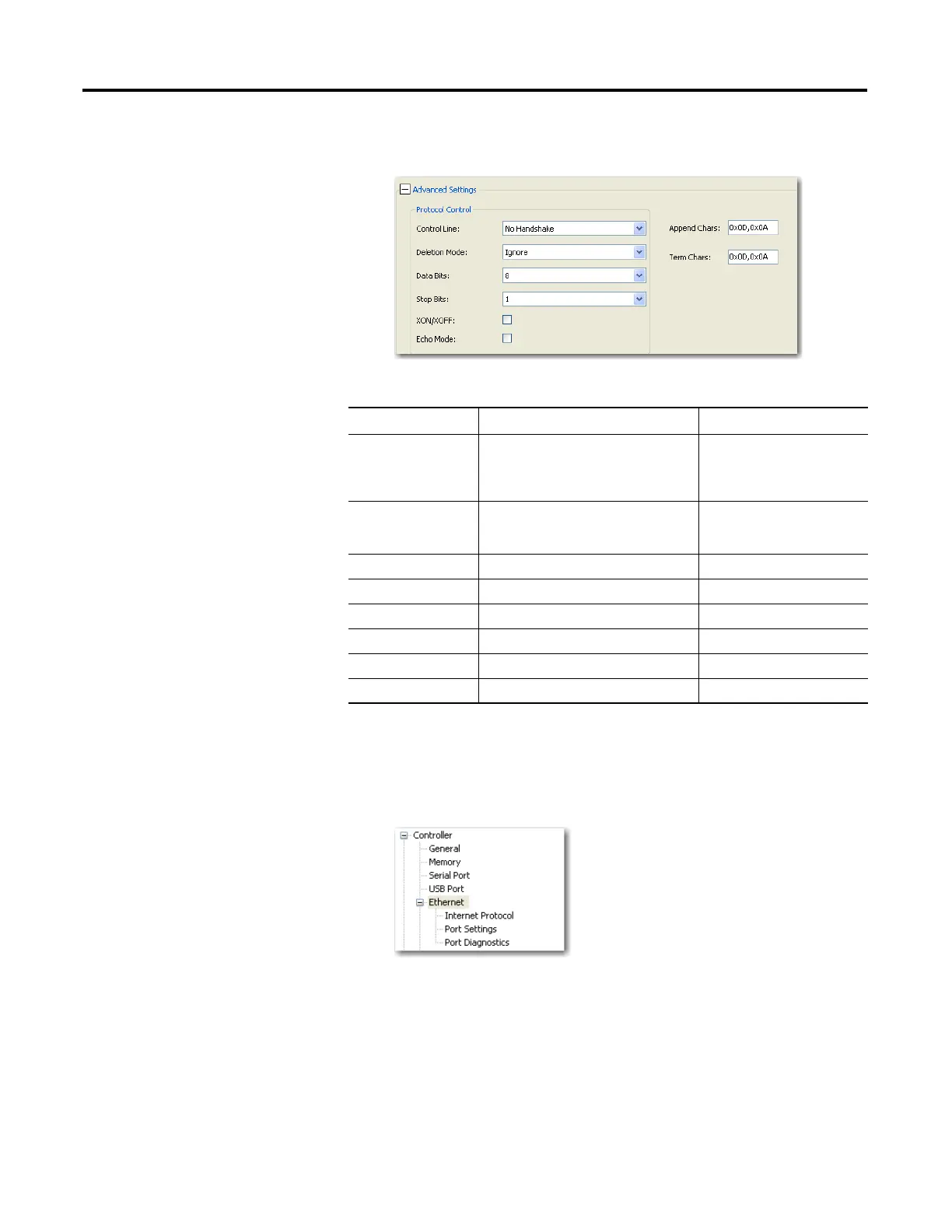

4. Click Advanced Settings to configure advanced parameters.

Configure Ethernet Settings

1. Open your Connected Components Workbench project (for example,

Micro850). On the device configuration tree, go to Controller properties.

Click Ethernet.

ASCII Advanced Parameters

Parameter Options Default

Control Line Full Duplex

Half-duplex with continuous carrier

Half-duplex without continuous carrier

No Handshake

Deletion Mode CRT

Ignore

Printer

Ignore

Data bits 7, 8 8

Stop bits 1, 2 1

XON/XOFF Enabled or Disabled Disabled

Echo Mode Enabled or Disabled Disabled

Append Chars 0x0D,0x0A or user-specified value 0x0D,0x0A

Term Chars 0x0D,0x0A or user-specified value 0x0D,0x0A
