264 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019
Appendix C Quickstarts
Clear Password
With an authorized session, you can clear the password on a target controller
through the Connected Components Workbench software.

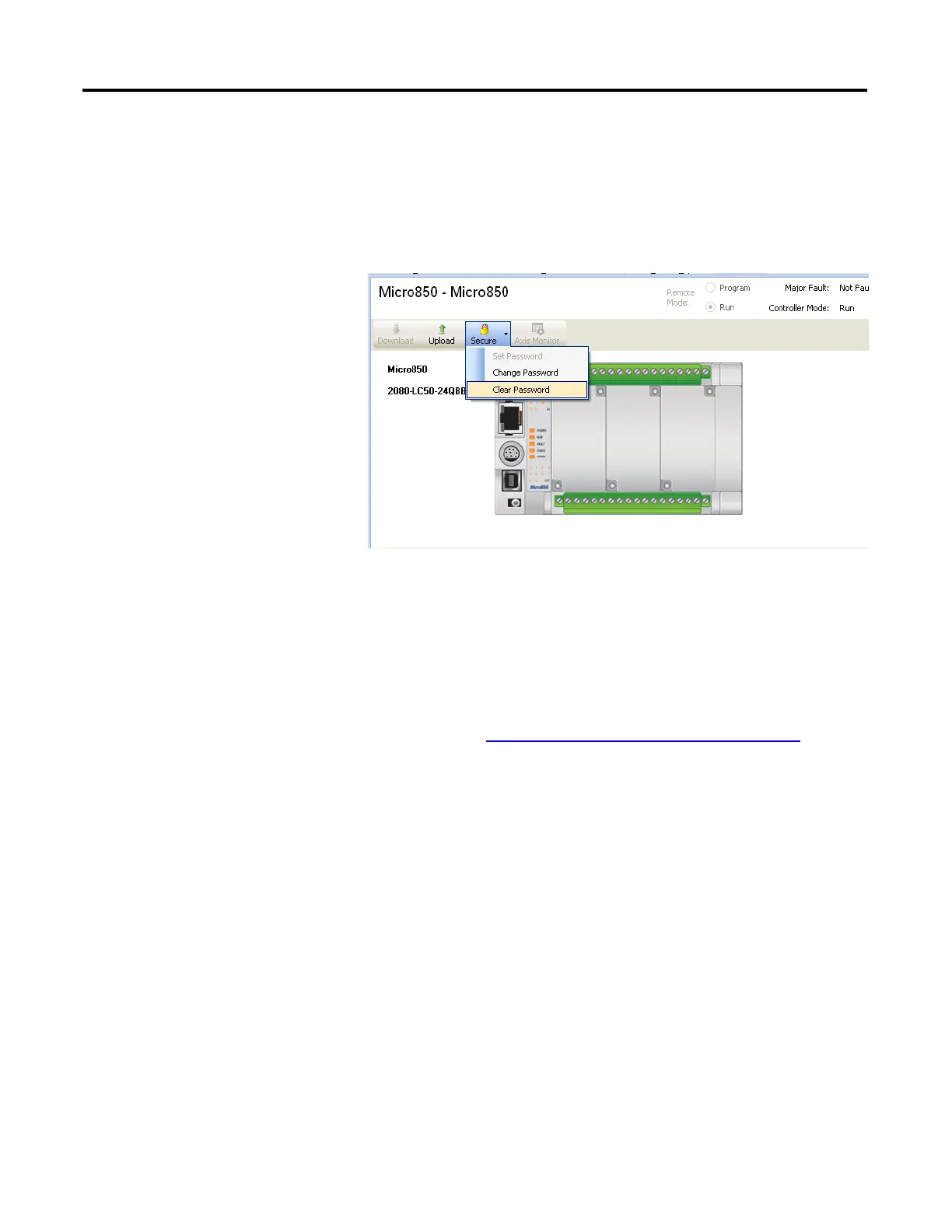

1. On the Device Details toolbar, click Secure button. Select Clear Password.
2. The Clear Password dialog appears. Enter Password.
3. Click OK to clear the password.
The controller will require no password on any new session.
Use the High Speed Counter
To use HSC, you first need to establish the HSC counting mode required by
your application. See HSC Mode (HSCAPP.HSCMode)
on page 140 for
available modes on Micro800 controllers.
The following sample project guides you through the creation of a project which
uses HSC mode 6, a quadrature counter with phased inputs A and B. It shows
you how to write a simple ladder program with the HSC function block, create
variables, and assign variables and values to your function block. You will also be
guided through a step-by-step process on how test your program, and enable a
Programmable Light Switch (PLS).
This sample project makes use of a quadrature encoder. The quadrature encoder
is used for determining direction of rotation and position for rotating, such as a
lathe. The Bidirectional Counter counts the rotation of the Quadrature Encoder.
The figure below shows a quadrature encoder connected to inputs 0 and 1. The
count direction is determined by the phase angle between A and B. If A leads B,
the counter increments. If B leads A, the counter decrements.
