Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 39

Install Your Controller Chapter 3

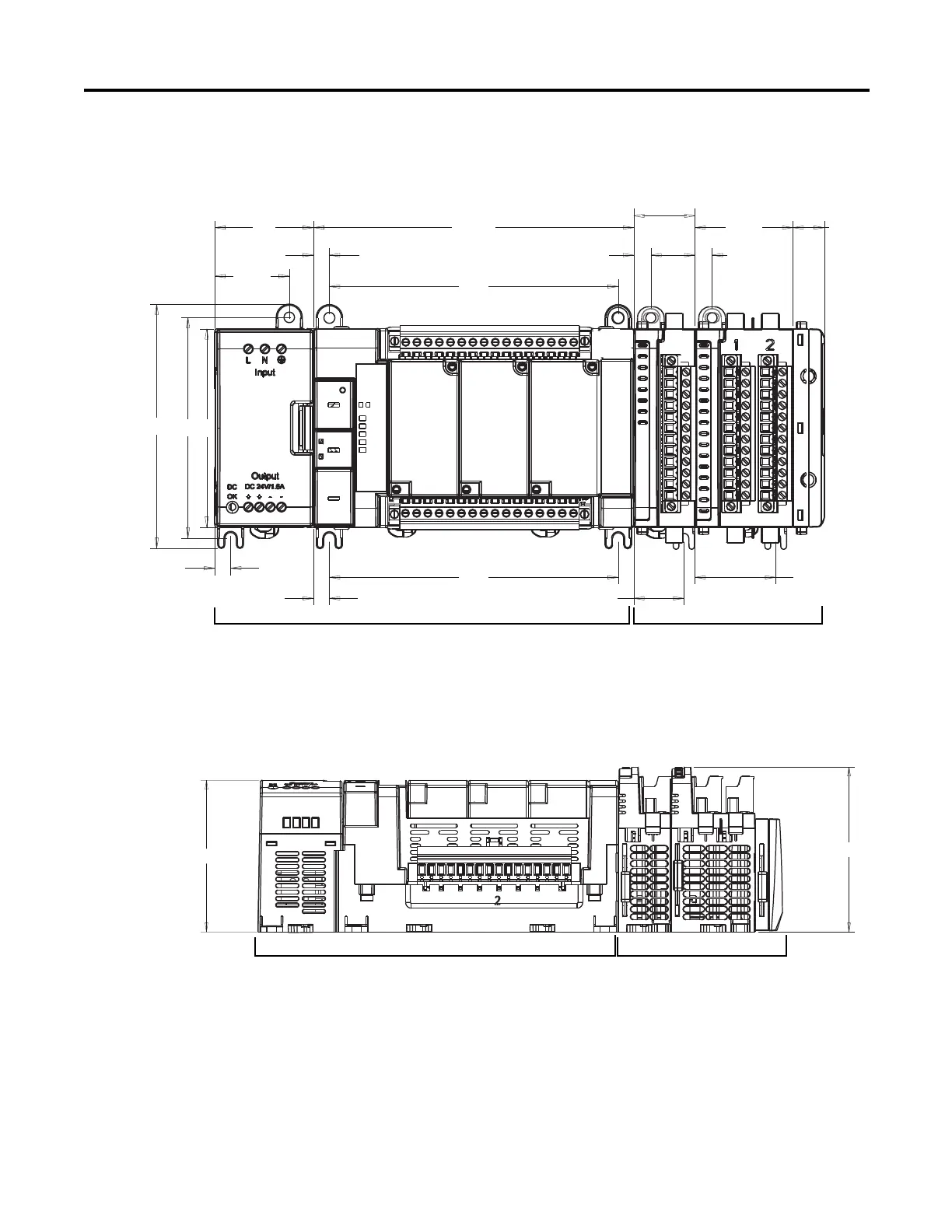

System Assembly

Micro830, Micro850, and Micro870 24-point Controllers (Front)

Micro830, Micro850, and Micro870 24-point Controllers (Side)

45 145.2

27.8

44.4 14.4

7.2

131

7.8 7.8

7.2

131

22.8

36.6

100

110.8

33.8

7.2

Expansion I/O Slots

(Applicable to Micro850 and Micro870 only)

Single-width (1st slot)

Double-width (2nd slot)

2085-ECR (terminator)

Micro830/Micro850/Micro870 24pt Controller

with Micro800 Power Supply

Measurements in millimeters

Expansion I/O Slots

(Applicable to Micro850 and Micro870 only)

Single-width (1st slot)

Double-width (2nd slot)

2085-ECR (terminator)

Micro830/Micro850/Micro870 24pt Controller

with Micro800 Power Supply

Measurements in millimeters
