Chapter 1 Hardware Overview
Hardware Features
Micro830, Micro850, and Micro870 controllers are economical brick style
controllers with embedded inputs and outputs. Depending on the controller
type, it can accommodate from two to five plug-in modules. The Micro850 and
Micro870 controllers have expandable features and can additionally support up
to eight expansion I/O modules.
The controllers also accommodate any class 2 rated 24V DC output power
supply that meets minimum specifications such as the optional Micro800 power
supply.
See Troubleshooting
on page 303 for descriptions of status indicator operation
for troubleshooting purposes.
Micro830 Controllers
For information on supported plug-in modules and expansion I/O, see the
following publications:
• Micro800™ Expansion I/O Modules User Manual,
publication 2080-UM003
• Micro800 Plug-in Modules User Manual, publication 2080-UM004
12 3 4 5 6 7 8
79610111213
45031
45030

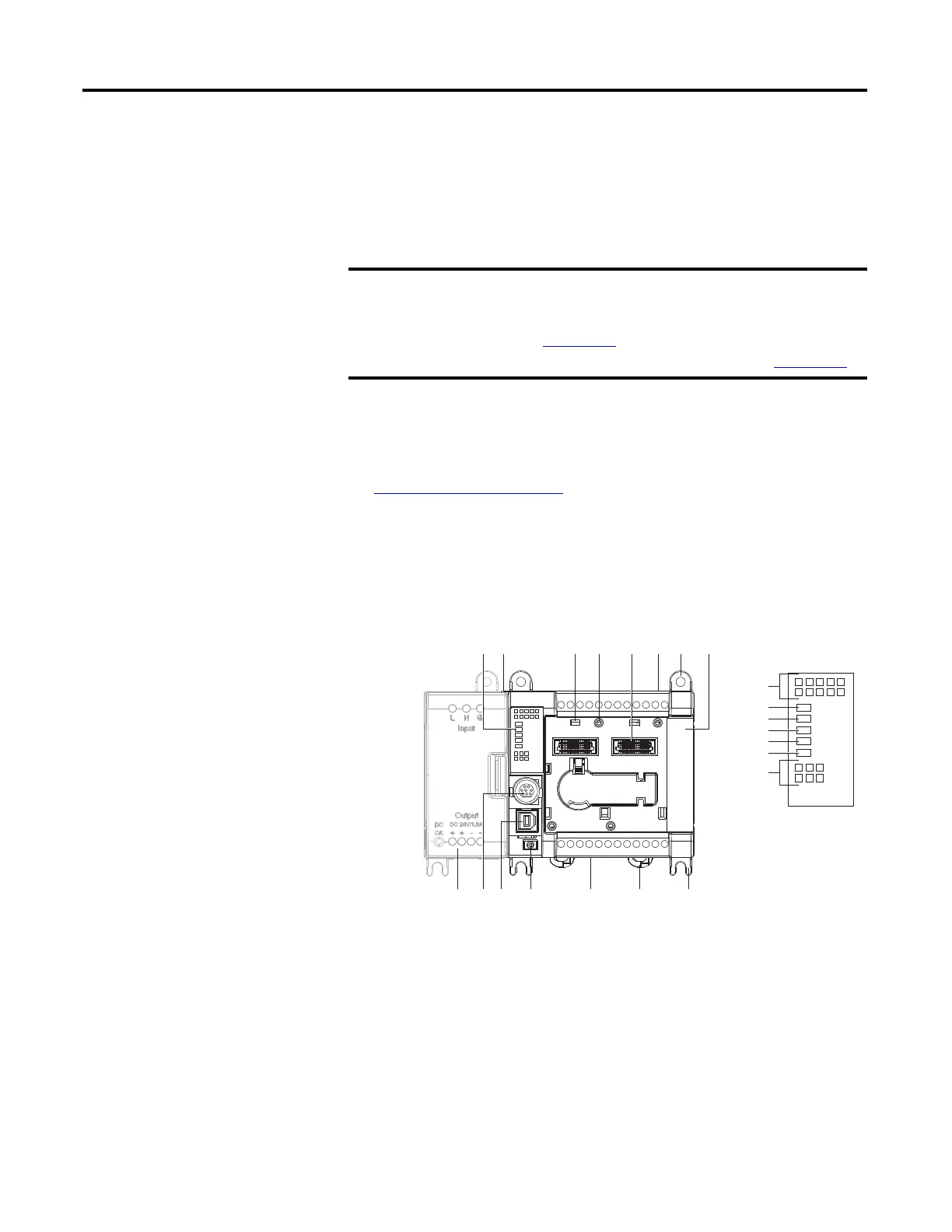

Micro830 10/16-point controllers and status indicators
Controller
Status indicator
