Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 237

Specifications Appendix A

Data Log Performance

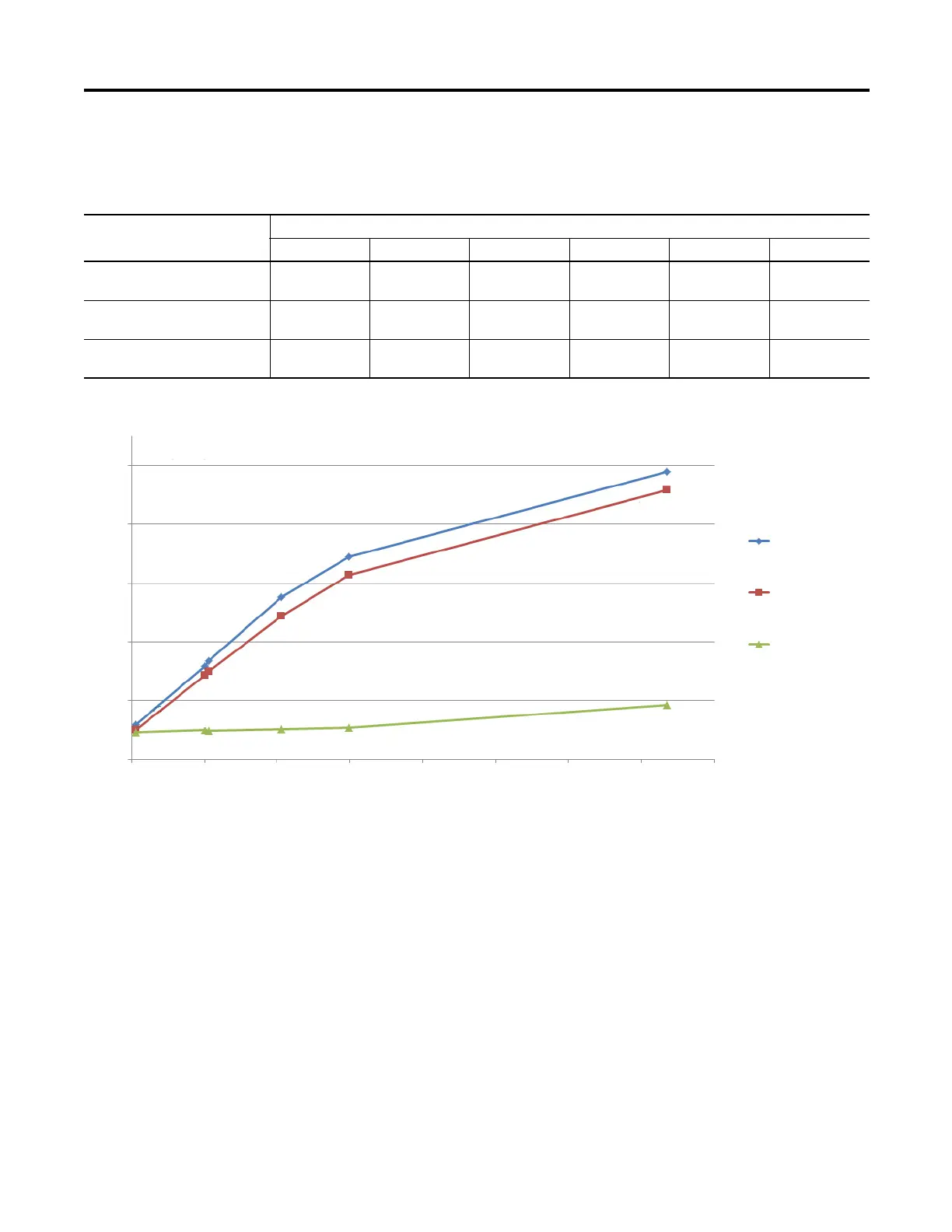

Data Log – Data Payload vs. Performance Time

Parameter Number of Characters

28 502 518 1028 1493 3676

Average write time per data log

file including all overheads

541.77 ms 1043.75 ms 1086.67 ms 1632.36 ms 1972.9 ms 2696.22 ms

Average write time excluding first

sample

500.40 ms 963.86 ms 999.14 ms 1472.36 ms 1818.33 ms 2545.92 ms

Average write time excluding all

overheads

479.10 ms 502.78 ms 493.03 ms 505.54 ms 519.91 ms 715.68 ms

Time (msec)

Data Payload

2750

2250

1750

1250

750

250

500

1000

1500

2000

2500

3000

3500

4000

715.68

519.9090909

505.5405405

493.0344828

502.7840909

541.75

963.858859

999.1414141

1043.75

1086.67

1472.367347

1632.36

1818.326531

1972.9

2545.918367

2692.22

Average write time

per data log including

all overheads

Average write time

excluding first sample

Average write time

excluding all

overheads
