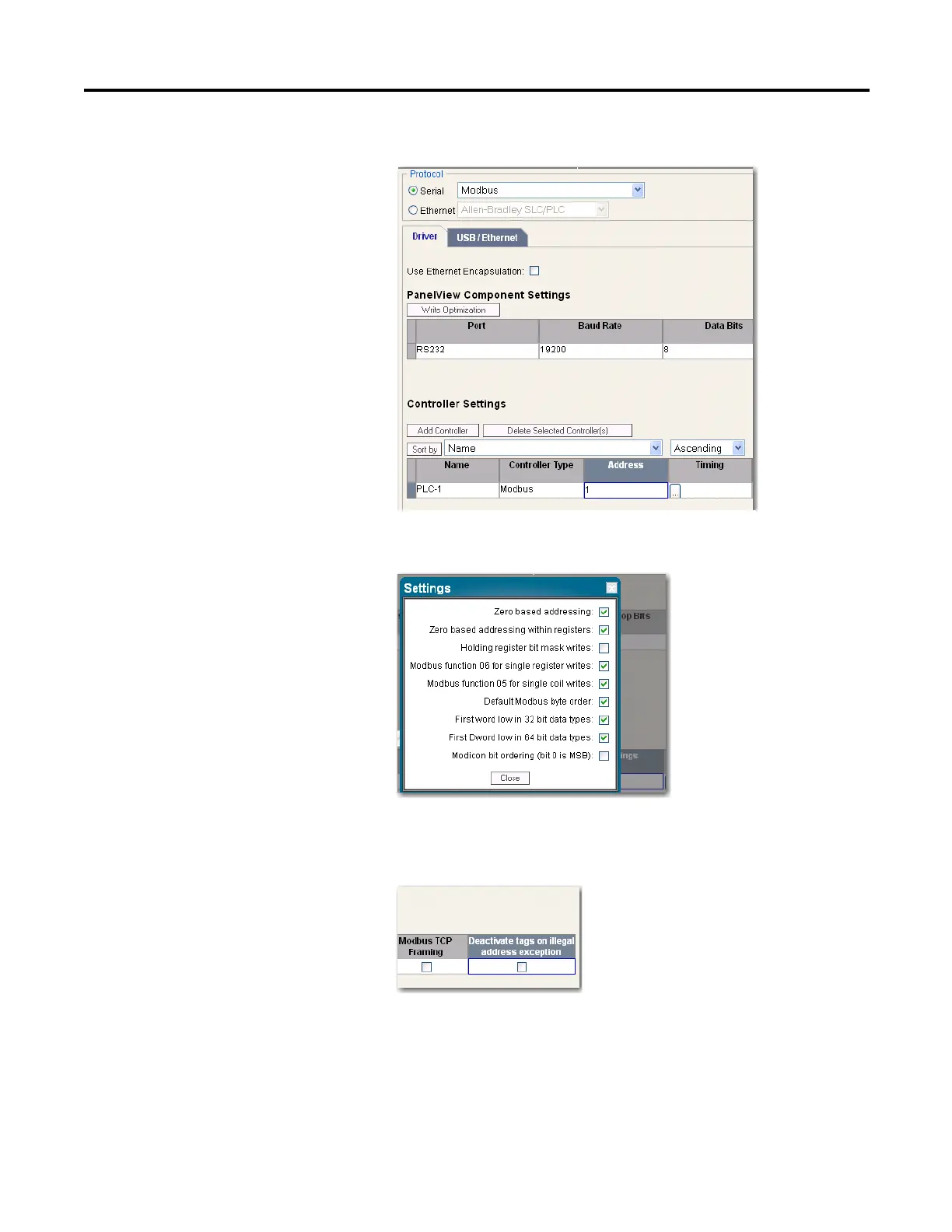

Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 243

Modbus Mapping for Micro800 Appendix B

1. Change from DF1 to Modbus protocol.

2. Set the Address of Micro800 slave to match the serial port configuration

for the controller.

3. Deactivate Tags on Error. This is to prevent the requirement of power

cycling PVC when new Modbus Mappings are downloaded from

Connected Components Workbench to Micro800 controller.
