Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 63

Communication Connections Chapter 5

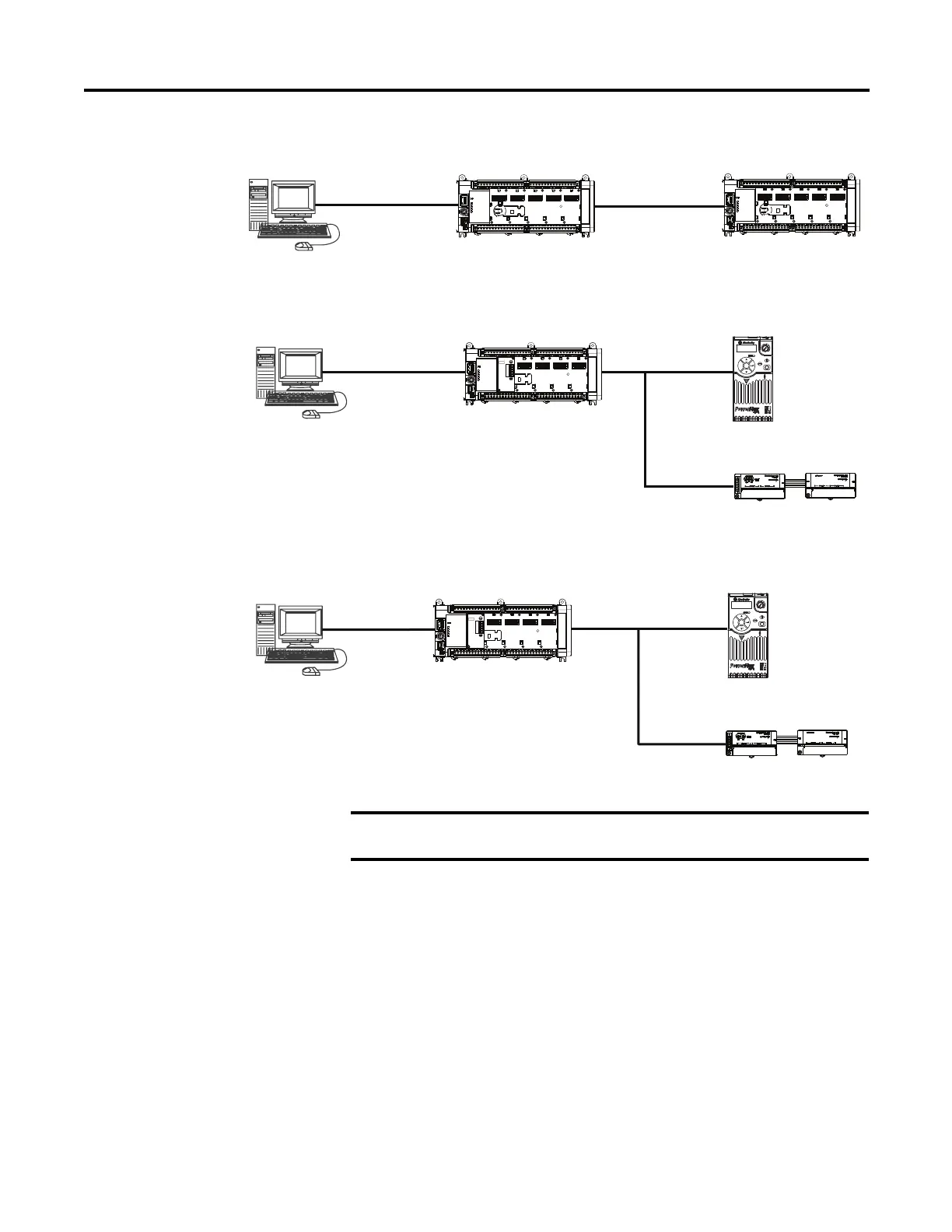

EtherNet/IP to CIP Serial

USB to DeviceNet

EtherNet/IP to DeviceNet

Micro850

controller1

Micro830

controller2

EtherNet/IP

CIP Serial

For program download

Micro850 controller

with

2080-DNET20 plug-in scanner

(Address 0)

USB

DeviceNet

PowerFlex 525 drive

with

25-COMM-D adapter

(Address 1)

CompactBlock LDX I/O

(Address 2)

Esc

Sel

For program download

DeviceNet

PowerFlex 525 drive

with

25-COMM-D adapter

(Address 1)

EtherNet/IP

Esc

Sel

Micro850 controller

with

2080-DNET20 plug-in scanner

(Address 0)

CompactBlock LDX I/O

(Address 2)

The user can use Connected Components Workbench

software to configure the PowerFlex

drives.

For program download

IMPORTANT

Micro800 controllers do not support more than one hop (for example,

from EtherNet/IP → CIP Serial → EtherNet/IP).
