Publication 1762-RM001C-EN-P
6-6 Using High-Speed Outputs
Pulse Train Outputs
(PTO) Function File

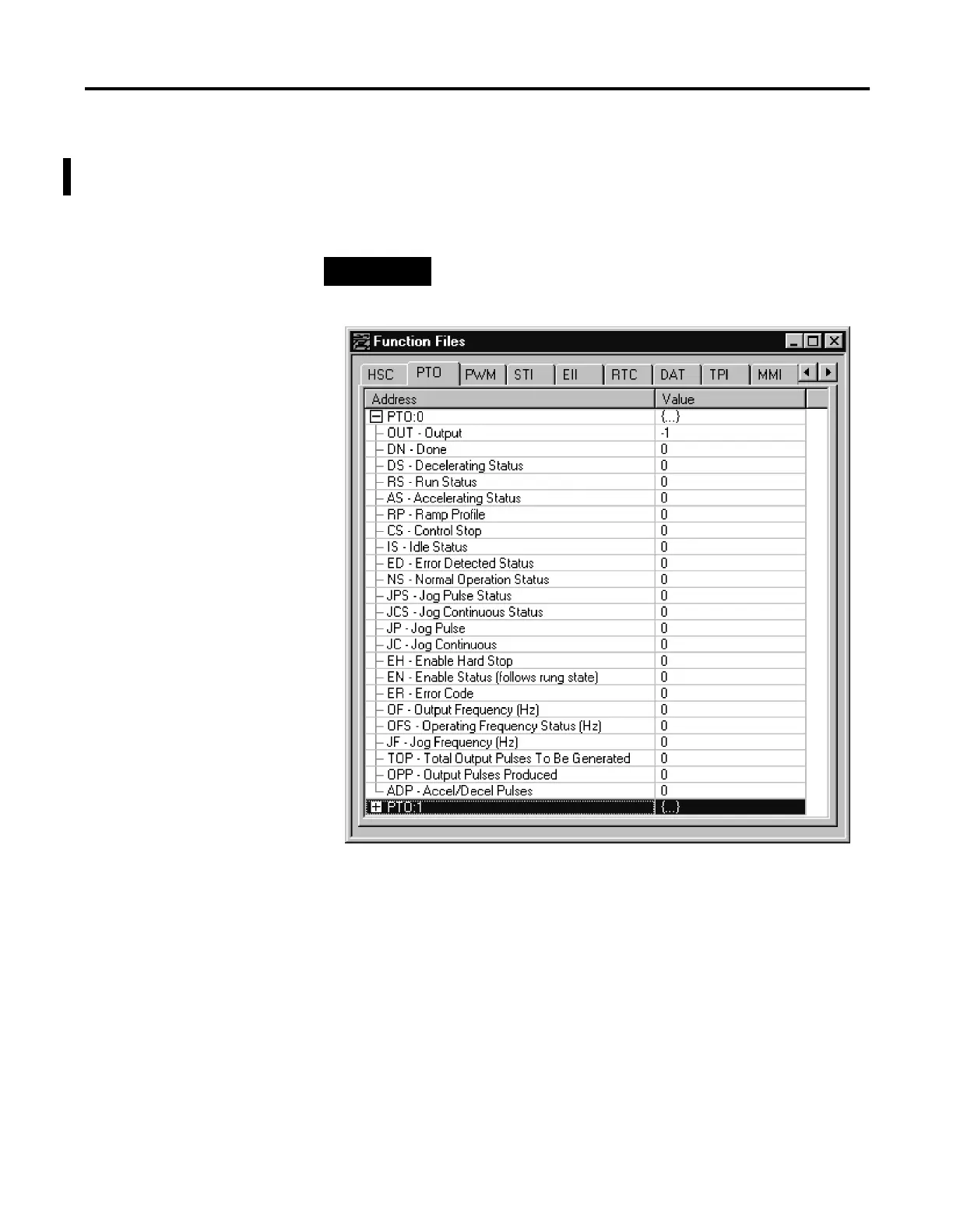

Within the RSLogix 500 Function File Folder, you see a PTO Function File
with two elements, PTO0 (1762-L24BXB, 1762-L40BXB, and 1764-28BXB)
and PTO1 (1764-28BXB only). These elements provide access to PTO
configuration data and also allow the control program access to all
information pertaining to each of the Pulse Train Outputs.
NOTE
If the controller mode is run, the data within sub-element
fields may be changing.
