Publication 1762-RM001C-EN-P
21-18 Communications Instructions
Configuring a Remote
Message
You configure for remote capability in the RSLogix 500 Message Setup
screen.

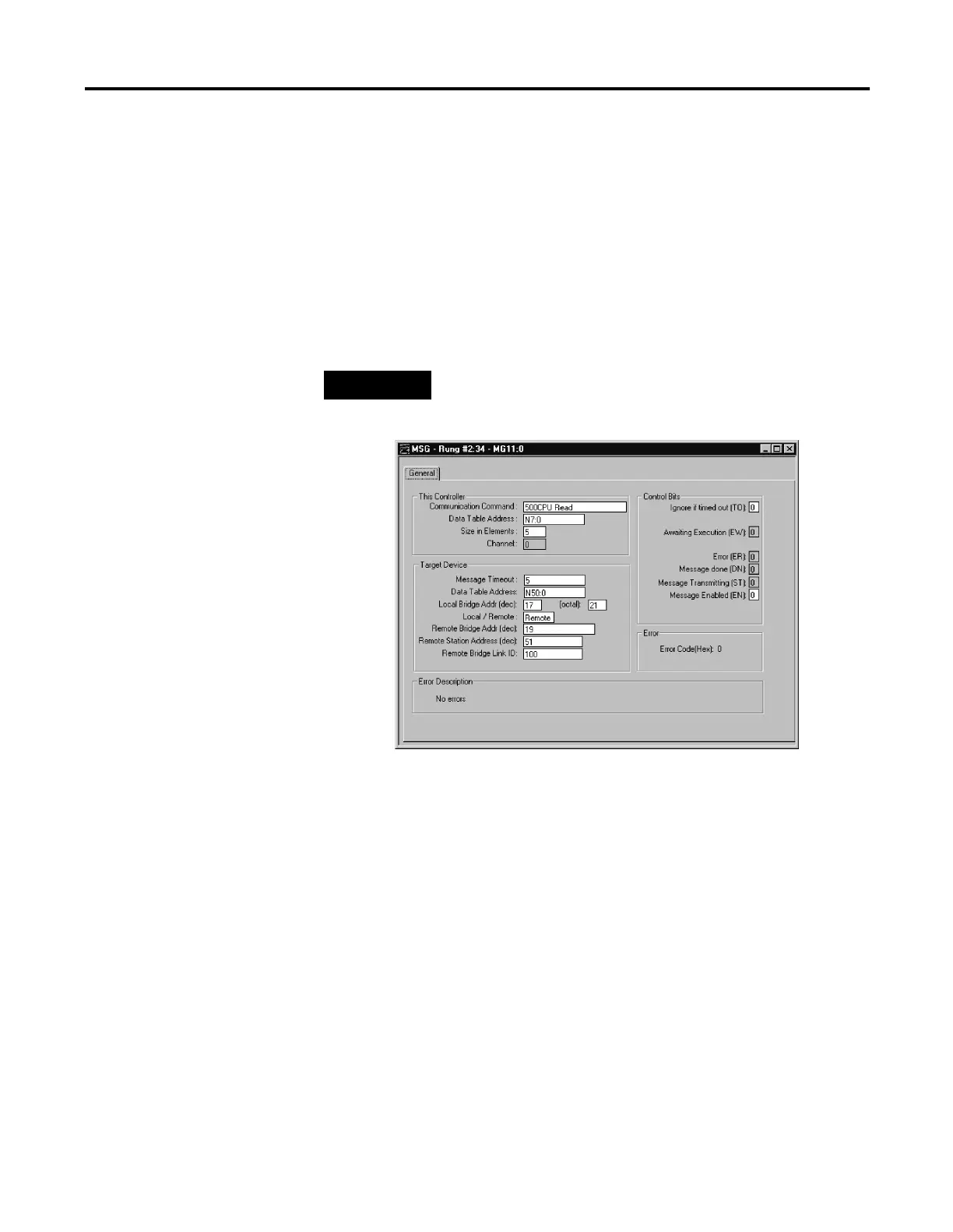

Example Configuration Screen and Network
The message configuration shown below is for the MicroLogix 1500 at
node 12 on the DH-485 network. This message reads five elements of
data from the SLC 5/04 (node 51 on the DH+ network) starting at address
N:50:0. The SLC 5/04 at Node 23 of the DH+ network is configured for
passthru operation.
NOTE
The MicroLogix 1200 capabilities are the same as the
MicroLogix 1500 in this example.
