22-6 Data Logging (MicroLogix 1500 1764-LRP Processor only)
Configuring Data Log
Queues
Data Logging is configured using RSLogix 500 programming software
version V4.00.00 or later.
1. Open a 1764-LRP application. The first step in using Data Logging is
to configure the data log queue(s). Access to this function is provided
via the RSLogix 500 Project tree:
2. The Data Log Que window appears. Double-click on Data Log
Configuration.
3. The Data Log Que dialog box appears as shown below. Use this
dialog box to enter the queue information.

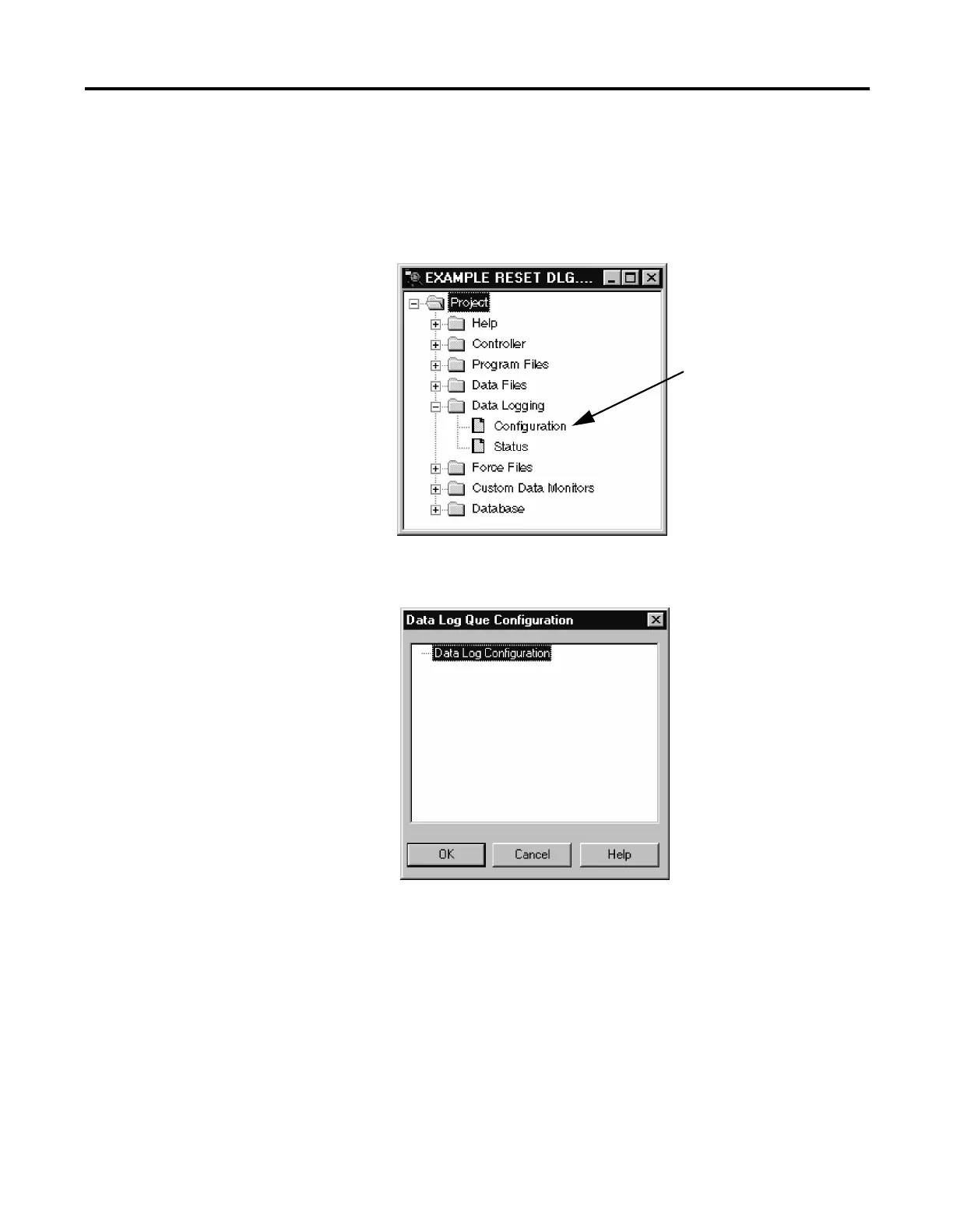

Double-click
Configuration to
access Data Log
Configuration.
Appearance of Data
Log Que Configuration
window before
creating a queue.
