Publication 1762-RM001C-EN-P
1-16 I/O Configuration

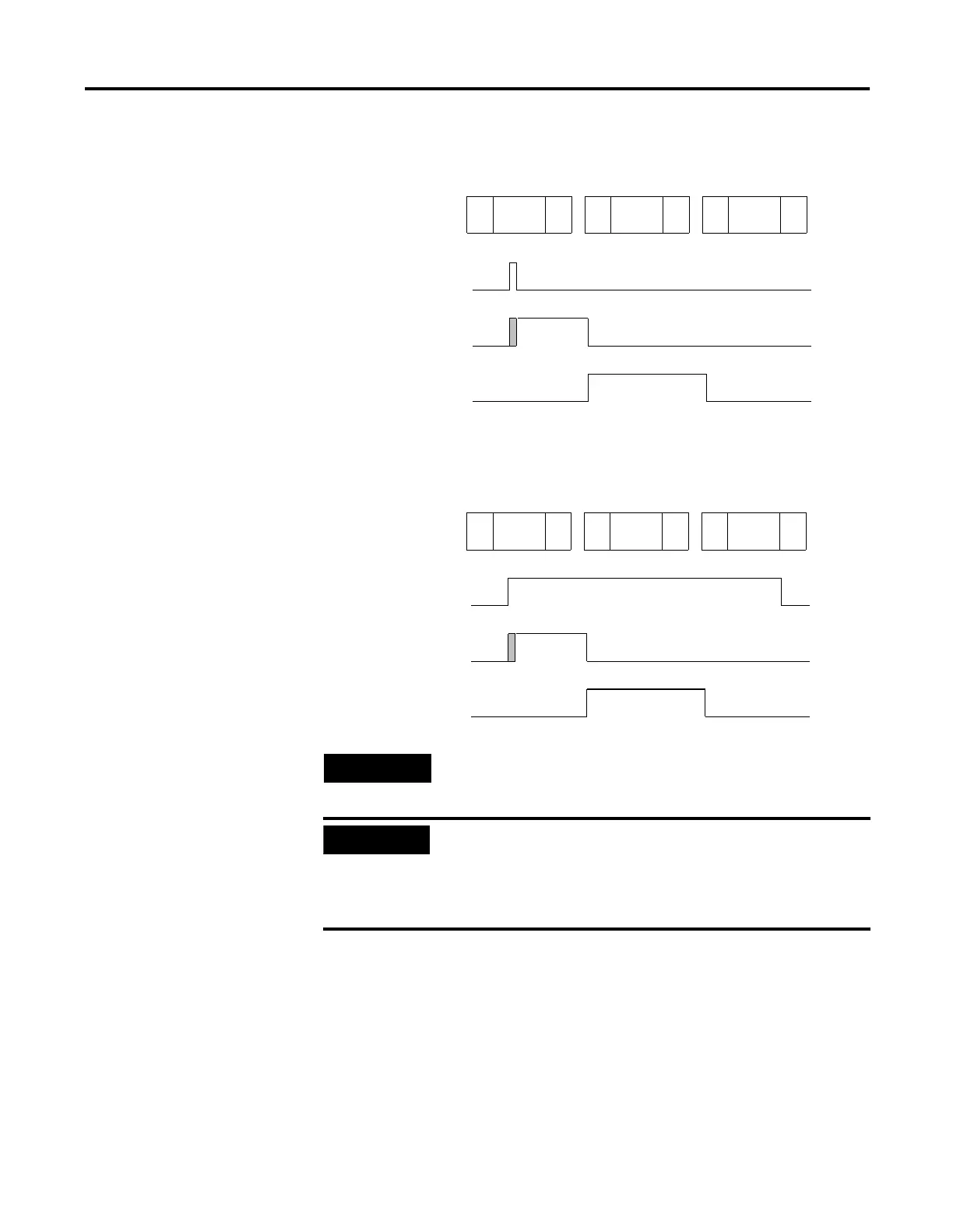

Rising Edge Behavior - Example 1
Rising Edge Behavior - Example 2
The previous examples demonstrate rising edge behavior. Falling edge
behavior operates exactly the same way with these exceptions:
The detection is on the falling edge of the external input.
The input image is normally on (1), and changes to off (0) for one
scan.
NOTE
The gray area of the Latched Status waveform is the input
filter delay.
IMPORTANT
The input file value does not represent the external input
when the input is configured for latching behavior. When
configured for rising edge behavior, the input file value is
normally off (on for 1 scan when a rising edge pulse is
detected).
Scan Number (X) Scan Number (X+1) Scan Number (X+2)
External
Input
Latched
Status
Input File
Value
Input
Scan
Ladder
Scan
Output
Scan
Input
Scan
Ladder
Scan
Output
Scan
Input
Scan
Ladder
Scan
Output
Scan
Scan Number (X) Scan Number (X+1) Scan Number (X+2)
External
Input
Latched
Status
Input File
Value
Input
Scan
Ladder
Scan
Output
Scan
Input
Scan
Ladder
Scan
Output
Scan
Input
Scan
Ladder
Scan
Output
Scan
