Type in the desired IP address using the on-screen keypad, then press
Enter.
Change Port Settings
You can control access to the terminal through Ethernet or Serial communication
by enabling or disabling the respective port.
Follow these steps to enable or disable the communication port on the terminal.

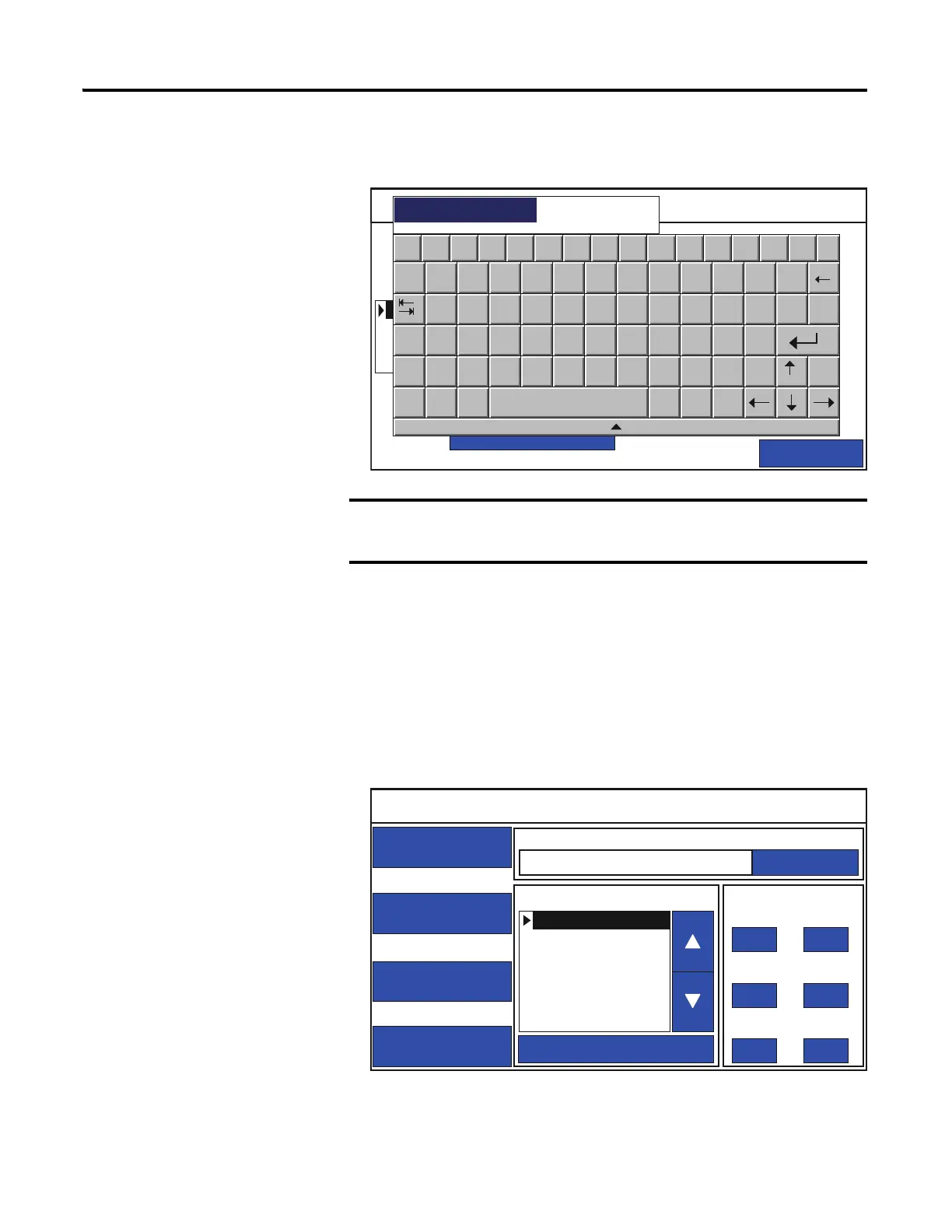

1. Go to the main configuration screen.
You cannot change the controller setting for an application that
is running.
Controller Settings
Back
Application Name: PVcApplication1
Protocol: Ethernet | Allen-Bradley MicroLogix/ENI
Type: MicroLogix 1400
Address:
PLC-1 : 10.116.37.12
10.116.37.12
`
