PanelView 800 HMI Terminals 11
Publication 2711R-IN001A-EN-P - January 2015

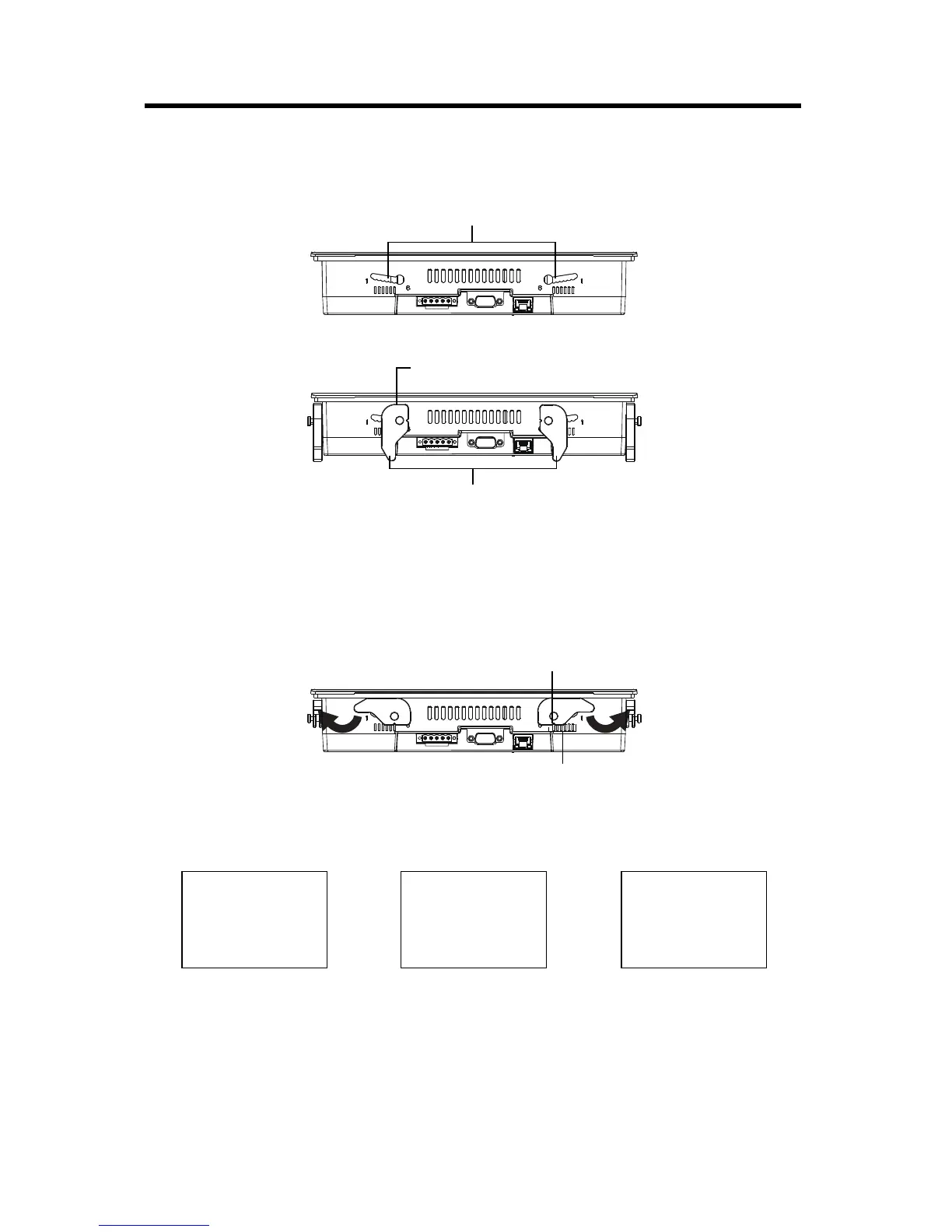

4. Insert all mounting levers into the mounting slots on the terminal.
Slide each lever until the short, flat side of lever touches the surface of the panel.
5. When all levers are in place, slide each lever an additional notch or two until you hear a click.
6. Rotate each lever in direction indicated until it is in the final latch position.
Follow the latching sequence for the optimum terminal fit.
Mounting slots
Short, flat side of mounting lever
Mounting levers
Rotate until notch in lever aligns with
proper alignment mark on terminal.
Notch
Six alignment marks
Latching sequence for 2711R-T4T Latching sequence for 2711R-T7T Latching sequence for 2711R-T10T
14
32
14
32
56
14
32
57
86
