12 PanelView 800 HMI Terminals
Publication 2711R-IN001A-EN-P - January 2015

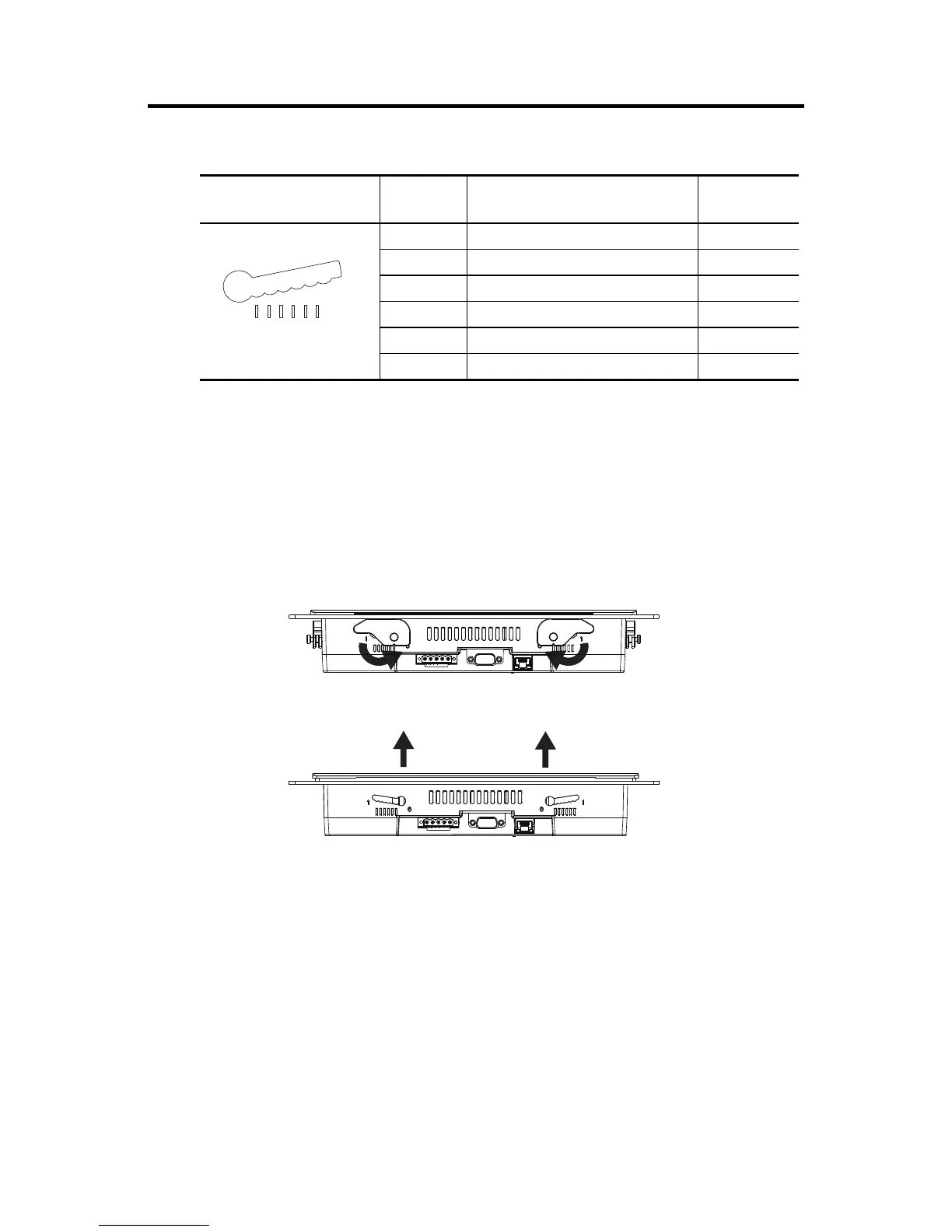

Use this table as a guide to provide an adequate gasket seal between the terminal and the panel.
Remove the PanelView 800 Terminal from the Panel
Follow these steps to remove the terminal from the panel.
1. Disconnect power to the terminal.
2. Release the mounting lever by rotating it in the direction indicated, slide it to the bottom of the
mounting slot, and remove it.
3. Grip the sides of the bezel and gently pull the terminal out of the panel opening.
Terminal Markings for
Alignment
Lever
Position
Panel Thickness Range
Typical
Gauge
1 1.52…2.01 mm (0.060…0.079 in.) 16
2 2.03…2.64 mm (0.08…0.104 in.) 14
3 2.67…3.15 mm (0.105…0.124 in.) 12
4 3.17…3.66 mm (0.125…0.144 in.) 10
5 3.68…4.16 mm (0.145…0.164 in.) 8/9
6 4.19…4.75 mm (0.165…0.187 in.) 7
