Allen-Bradley PowerFlex 70 Installation Guide

Publication 20A-IN009C-EN-P
24 PowerFlex® 70 Adjustable Frequency AC Drive Installation Instructions
B B
D
E
JP2/JP3
Installed
JP5/JP6
Not Installed
Important: The Internal EMC Filter
(input filter) is a factory installed option
on Frame B drives. If the option is
installed, the drive cannot
be used on a
non-solid ground power source.
To verify: an extra “R, S, T” terminal
block will be present if the option is
installed (as shown). Additionally, the
13th character of the nameplate catalog
number will be an “A” (see page 23
).
Solid Ground
Jumpers should be installed at both
locations (JP2/JP3 and JP5/JP6).
Non-Solid Ground
Remove the jumper at “JP2/JP3.” Verify
that the jumper at “JP5/JP6” is also
removed. In addition, verify that the
Input Filter option is not installed.
CJP2/JP3
Installed
JP5/JP6
Installed
Frame Voltage Code

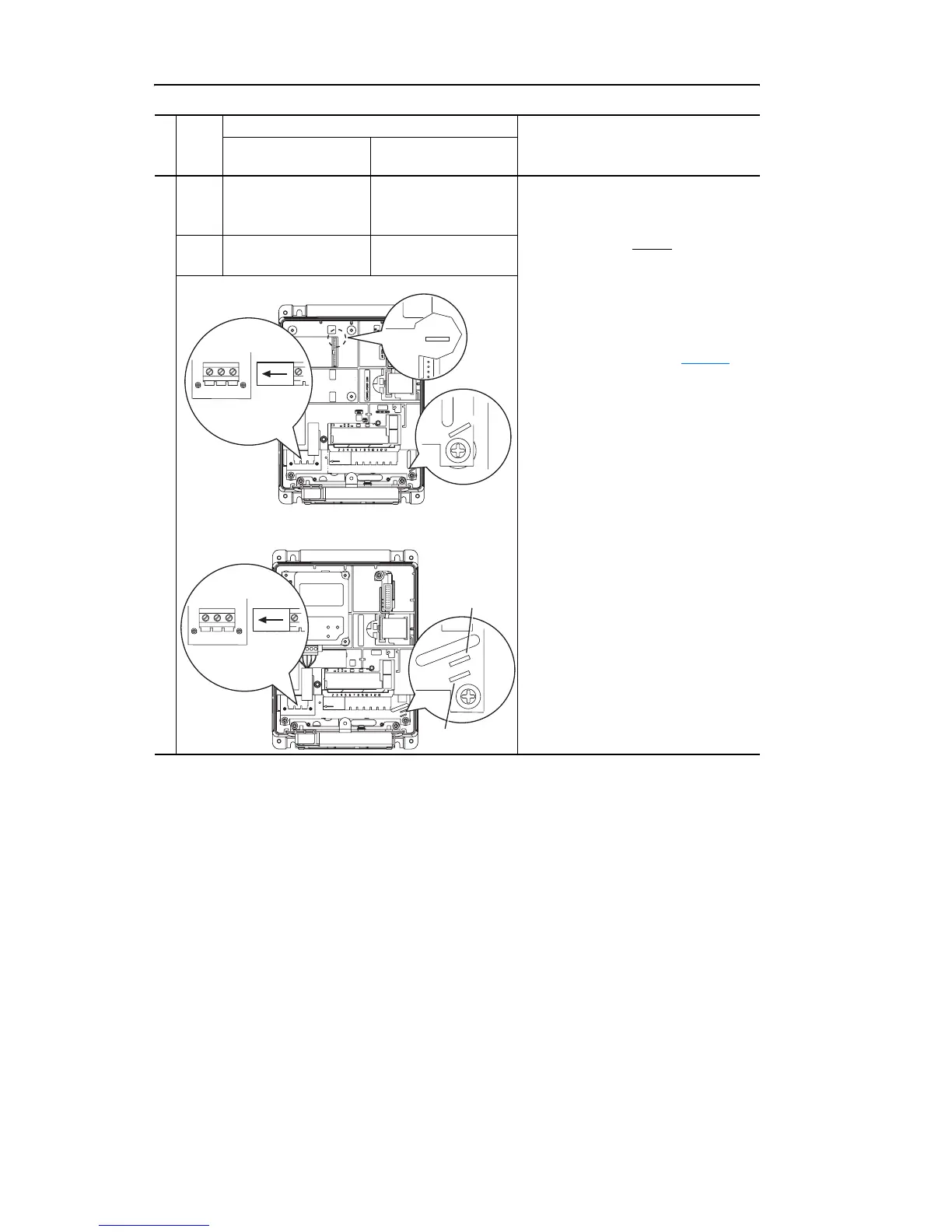

Factory Default Jumper Settings
Power Source TypeMOV/Input Filter Caps
DC Bus Common
Mode Caps
JP3
JP2
JP5
JP6
MOV
CM Cap
L1
R
L2
S
L3
T
BR1
+DC
L1
R
L2
S
L3
T
Input Filter
Option
JP6 JP5
JP3
JP2
MOV
CM Cap
L1
R
L2
S
L3
T
BR1
+DC
L1
R
L2
S
L3
T
Input Filter
Option
or

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
