Allen-Bradley PowerFlex 70 Installation Guide

Publication 20A-IN009C-EN-P
PowerFlex® 70 Adjustable Frequency AC Drive Installation Instructions 25
C B
D
E
JP2/JP3
Installed
JP3A/JP3B
Not Installed
Solid Ground
Jumpers should be installed at both
locations (JP2/JP3 and JP3A/JP3B).
Non-Solid Ground
Remove the jumper at “JP2/JP3.” Verify
that the jumper at “JP3A/JP3B” is also
removed.
CJP2/JP3
Installed
JP3A/JP3B
Installed
D B
D
E
JP2/JP3
Installed
JP3A/JP3B
Not Installed
Solid Ground
Jumpers should be installed at both
locations (JP2/JP3 and JP3A/JP3B).
Non-Solid Ground
Remove the jumper at “JP2/JP3.” Verify
that the jumper at “JP3A/JP3B” is also
removed.
CJP2/JP3
Installed
JP3A/JP3B
Installed

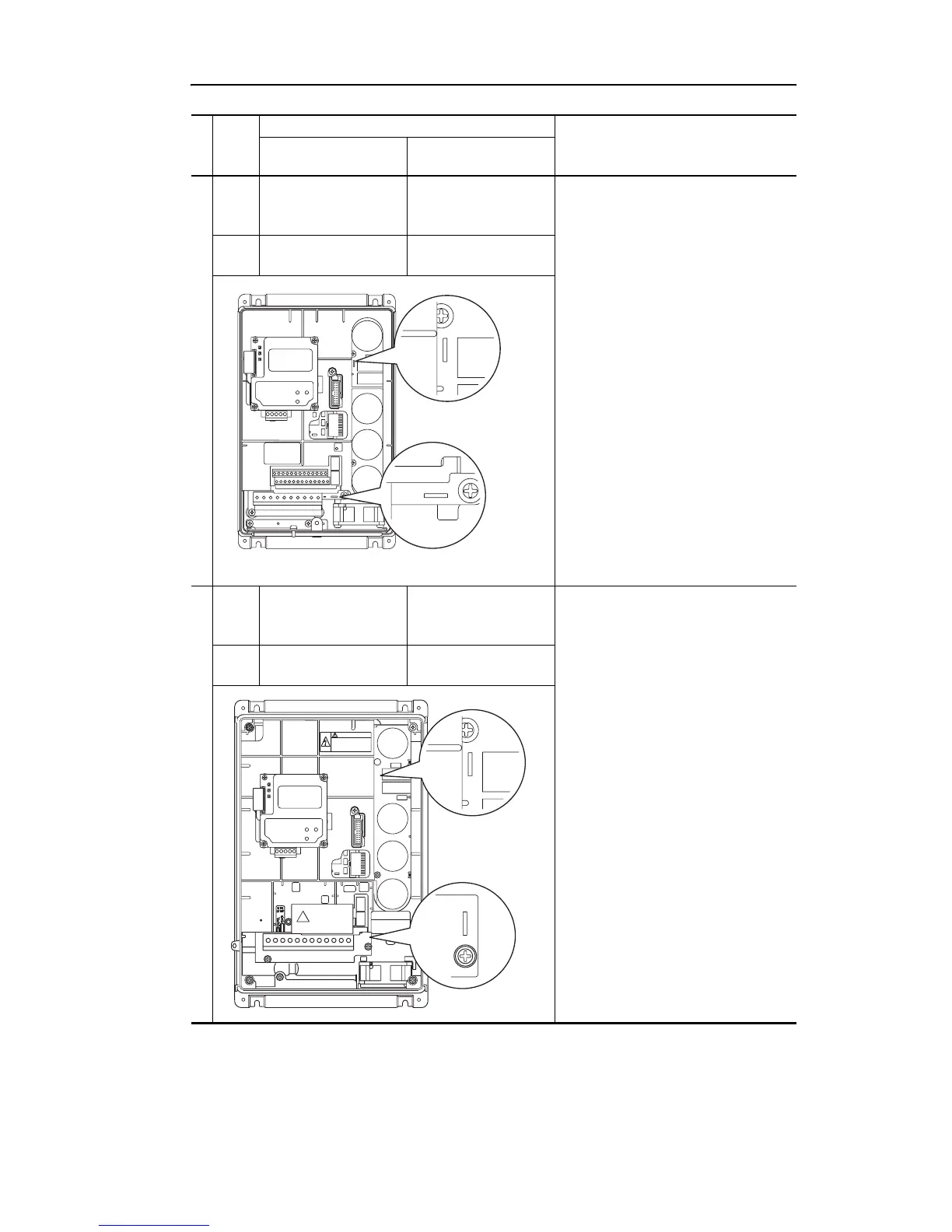

Frame Voltage Code
Factory Default Jumper Settings
Power Source TypeMOV/Input Filter Caps
DC Bus Common
Mode Caps
JP3 JP2
JP3A
JP3B
MOV / Filter Cap
CM Cap
JP3
JP2
JP3A
JP3B
MOV / Filter Cap
CM Cap
SHLD

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
