Allen-Bradley PowerFlex 70 Reference Manual

Start-Up 2-183

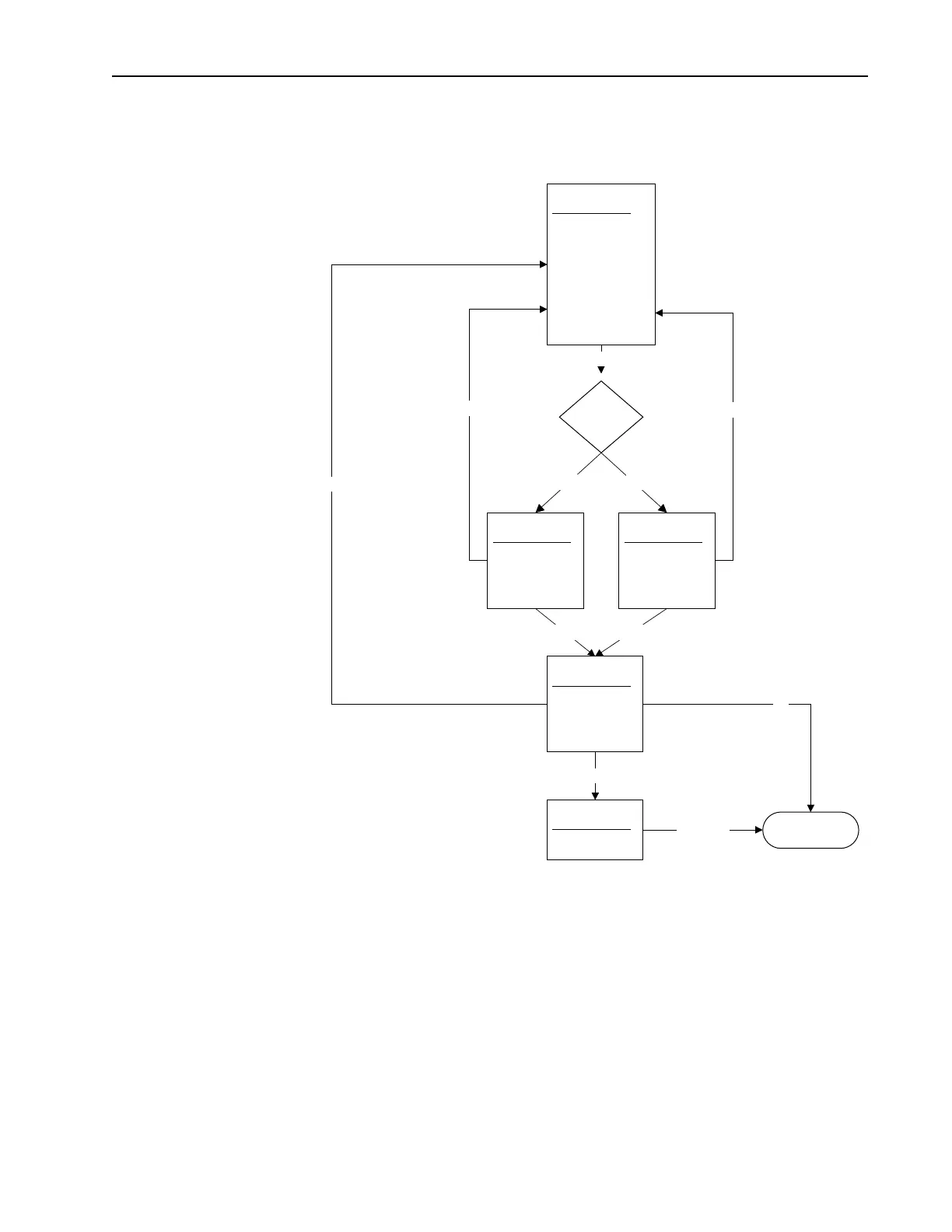

Figure 2.39 PowerFlex 70 & 700 Standard Control Option Startup (1)
Basic Start Up (Input Voltage)
StartUp
1. Input Voltage
Enter choice for
Input Supply
400V, 50 Hz
<480V, 60 Hz>
StartUp
1. Input Voltage
Reset all
parameters to
their defaults?
<Yes>
No
StartUp
1. Input Voltage
This step should
be done only
when "alternate
voltage" is
needed (see user
manual). It will
reset all drive
parameters with
specific choice
of Volts and Hz.
Enter
1-0
1-1
StartUp
1. Input Voltage
Enter choice for
Input Supply
208V, 60 Hz
<240V, 60 Hz>
1-2
Enter Enter
Backup
1-3
Go to 0-1 (2)
Yes
Rated Volts
>300?
Yes No
StartUp
1. Input Voltage
Clear fault to
continue.
1-4
Fault Clear
Backup
Backup
No

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
