Allen-Bradley PowerFlex 70 Reference Manual

1-14 PowerFlex 700 Dimensions

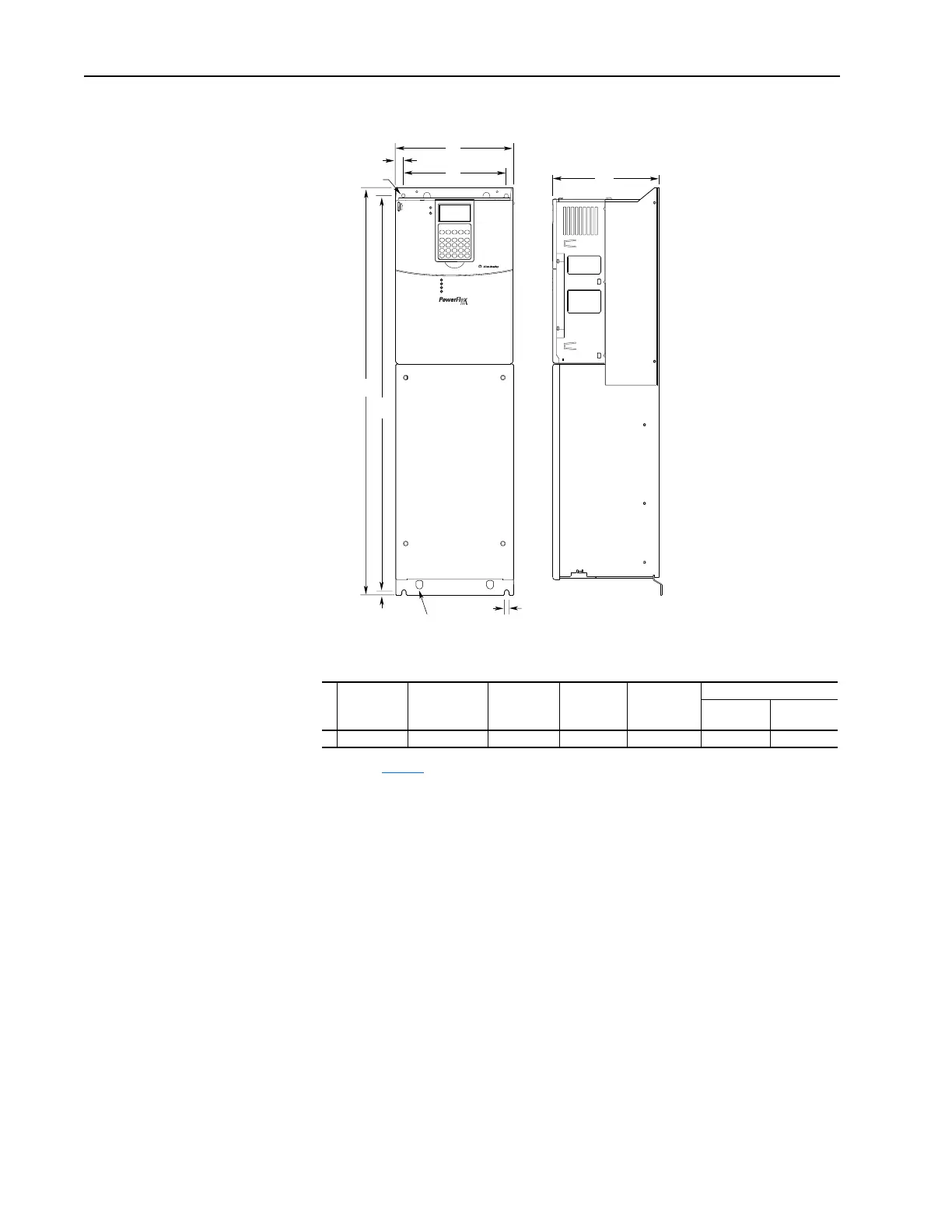

Figure 1.8 PowerFlex 700 Frame 4
Dimensions are in millimeters and (inches)
Frame
(1)
(1)
Refer to Ta ble 1. B for frame information.
A (Max.) BC (Max.) DE
Approx. Weight
(2)
kg (lbs.)
(2)
Weights include HIM and Standard I/O.
Drive
Drive &
Packaging
4 220.0 (8.66) 758.8 (29.87) 201.7 (7.94) 192.0 (7.56) 738.2 (29.06) 24.49 (54.0) 29.03 (64.0)
C
E
8.0
(0.31)
B
7.0 (0.28) dia.
7.0 (0.28)
3 Places
A
D
15.0 (0.59)
Lifting Holes
4 Places

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
