Allen-Bradley PowerFlex 70 Reference Manual

2-194 Start-Up

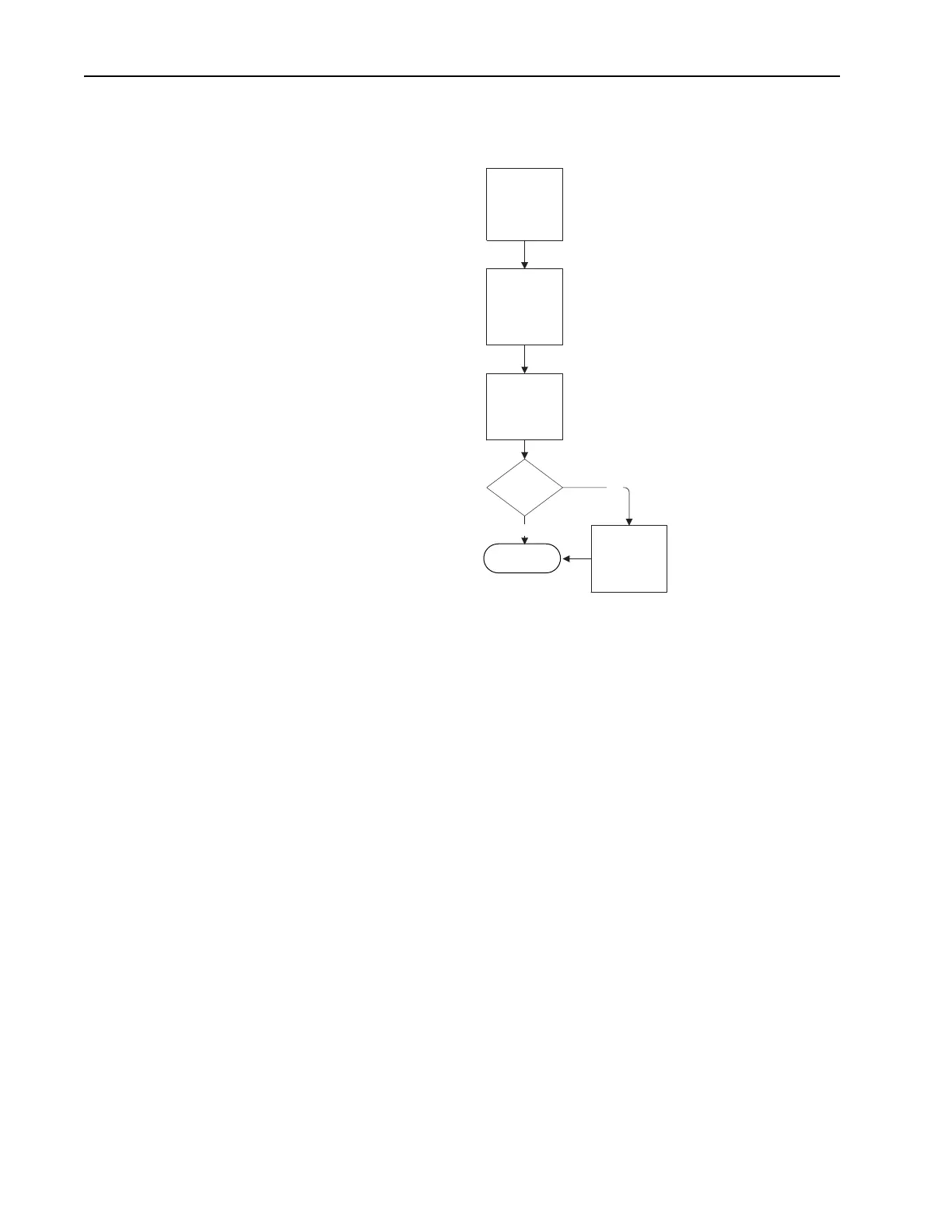

Figure 2.40 PowerFlex 700 Vector Control Option Startup (4)
Flux Vector Start Up (Speed Limits)
Start-Up
4. Speed Limits
This section
defines min/max
speeds and
direction method
4-0
4-1
4-2
Start-Up
4. Speed Limits
Enter value for
Maximum Speed
+60.00 Hz
xxx.xx <> yyy.yy
Start-Up
4. Speed Limits
Enter value for
Minimum Speed
+5.78 Hz
xxx.xx <> yyy.yy
Go to 0-1 (5.
Speed Control)
FOC
Mode?
Start-Up
4. Speed Limits
Enter value for
Rev Speed Lim
+5.78 Hz
xxx.xx <> yyy.yy
No
Ye s
4-3
B
B
B
B

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
