Allen-Bradley PowerFlex 70 Reference Manual

Analog Outputs 2-23
This example shows that you can have [Analog Out1 Lo] greater than
[Analog Out1 Hi]. The result is a negative slope on the scaling from original
quantity to analog output voltage. Negative slope could also be applied to
any of the other examples in this section.

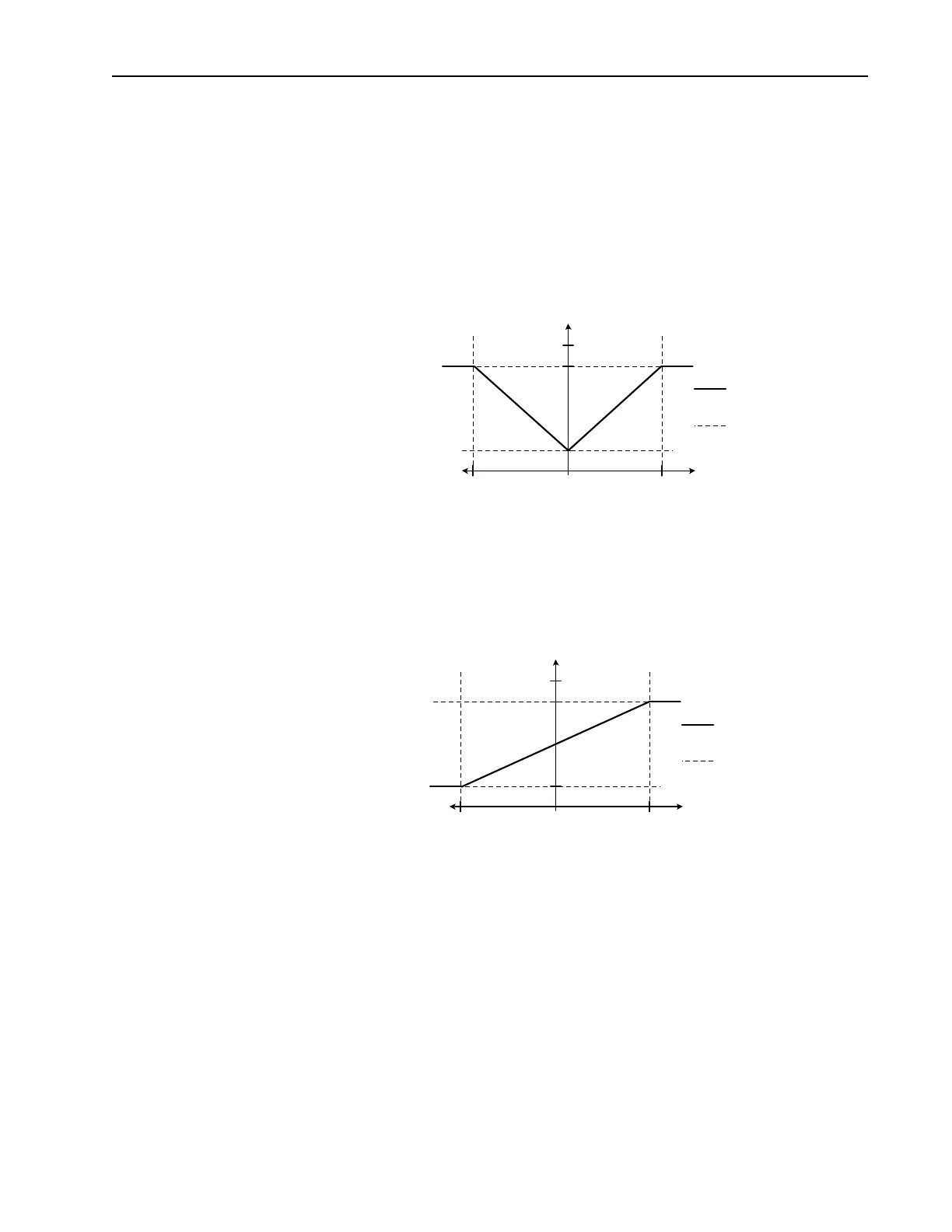

Example 3 – Signed Output Quantity, Absolute Value Enabled
• [Analog Out1 Sel] = “Output Torque Current”
• [Analog Out1 Lo] = 1 volt
• [Analog Out1 Hi] = 9 volts
• [Anlg Out Absolut] set so that absolute value is enabled for output 1.
Example 4 – Signed Output Quantity, Absolute Value Disabled
• [Analog Out1 Sel] = “Output Torque Current”
• [Analog Out1 Lo] = 1 volt
• [Analog Out1 Hi] set to 9 volts
• [Anlg Out Absolut] set so that absolute value is disabled for output 1.
10V
[Analog Out1 Hi]
[Analog Out1 Lo]
0V
0% 200%–
200%
Output Torque Current
Analog
Output Voltage
Output Torque Current vs.
Analog Output Voltage
Marker Lines
10V
[Analog Out1 Hi]
[Analog Out1 Lo]
0V
0% 200%–
200%
Output Torque Current
Analog
Output Voltage
Output Torque Current vs.
Analog Output Voltage
Marker Lines

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
