8-6 Installing the PV550 Terminal
PV550 Keypad, Keypad & Touch Screen Terminals
PV550 Touch Screen Terminal
8. Alternately tighten the self-locking nuts until the terminal is held
firmly against the panel. Tighten nuts to a torque of 10
inch-pounds. Do not over-tighten.
9. Remove protective installation label from top vents of terminal.
ATTENTION
!
Mounting nuts must be tightened to a torque of
10 inch-pounds to provide a proper seal and to
prevent potential damage to the terminal.
Allen-Bradley assumes no responsibility for
water or chemical damage to the terminal or
other equipment within the enclosure because
of improper installation.
ATTENTION
!
Failure to remove the protective installation
label covering the top vents could result in
overheating and damage to the terminal.

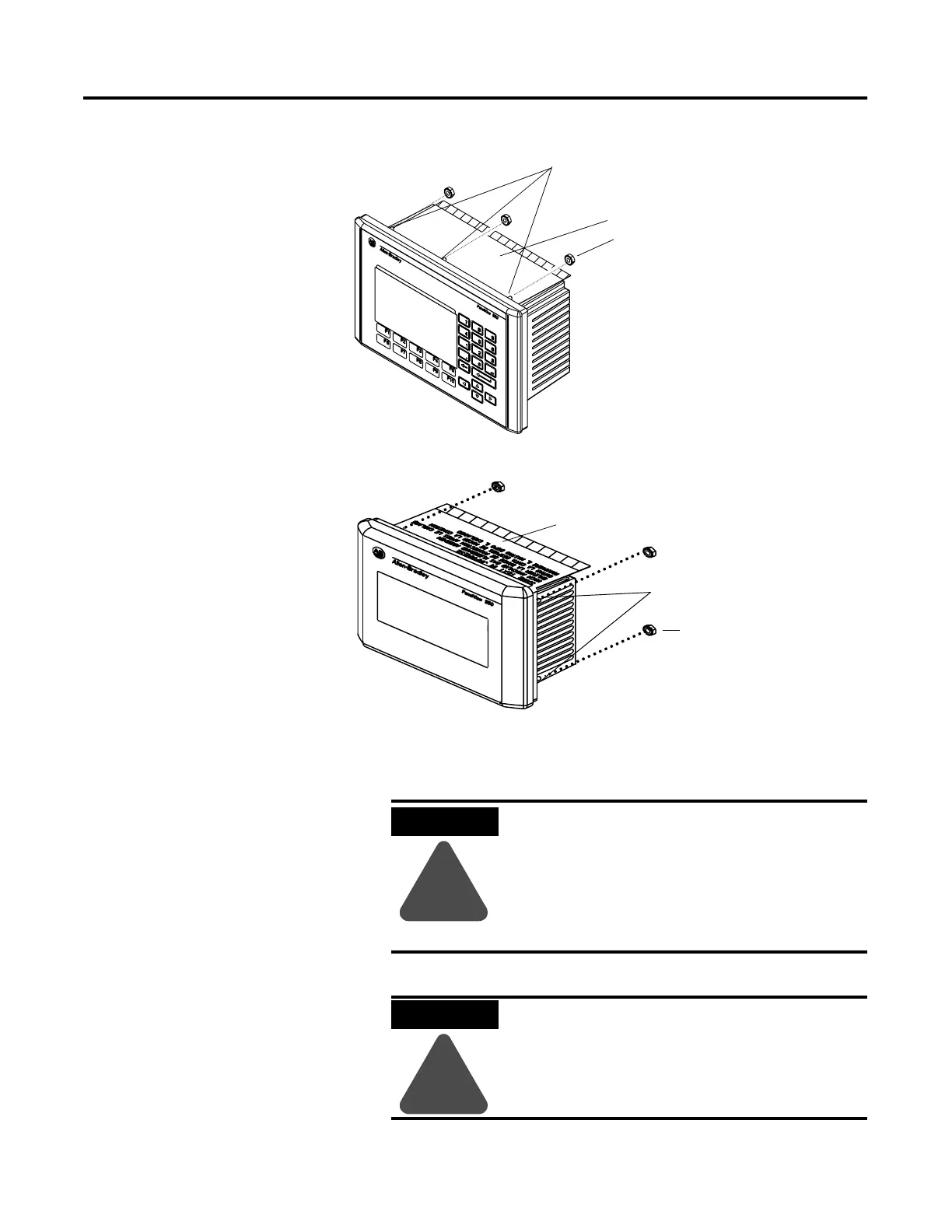

Self-locking nuts
(6 used, 8 provided)
Protective installation label
Mounting Studs (3 Top, 3 Bottom)
Protective installation label
Mounting Studs (2 Left, 2 Right)
Self-locking nuts
(4 used, 8 provided)
