Section 5 Service Procedures
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

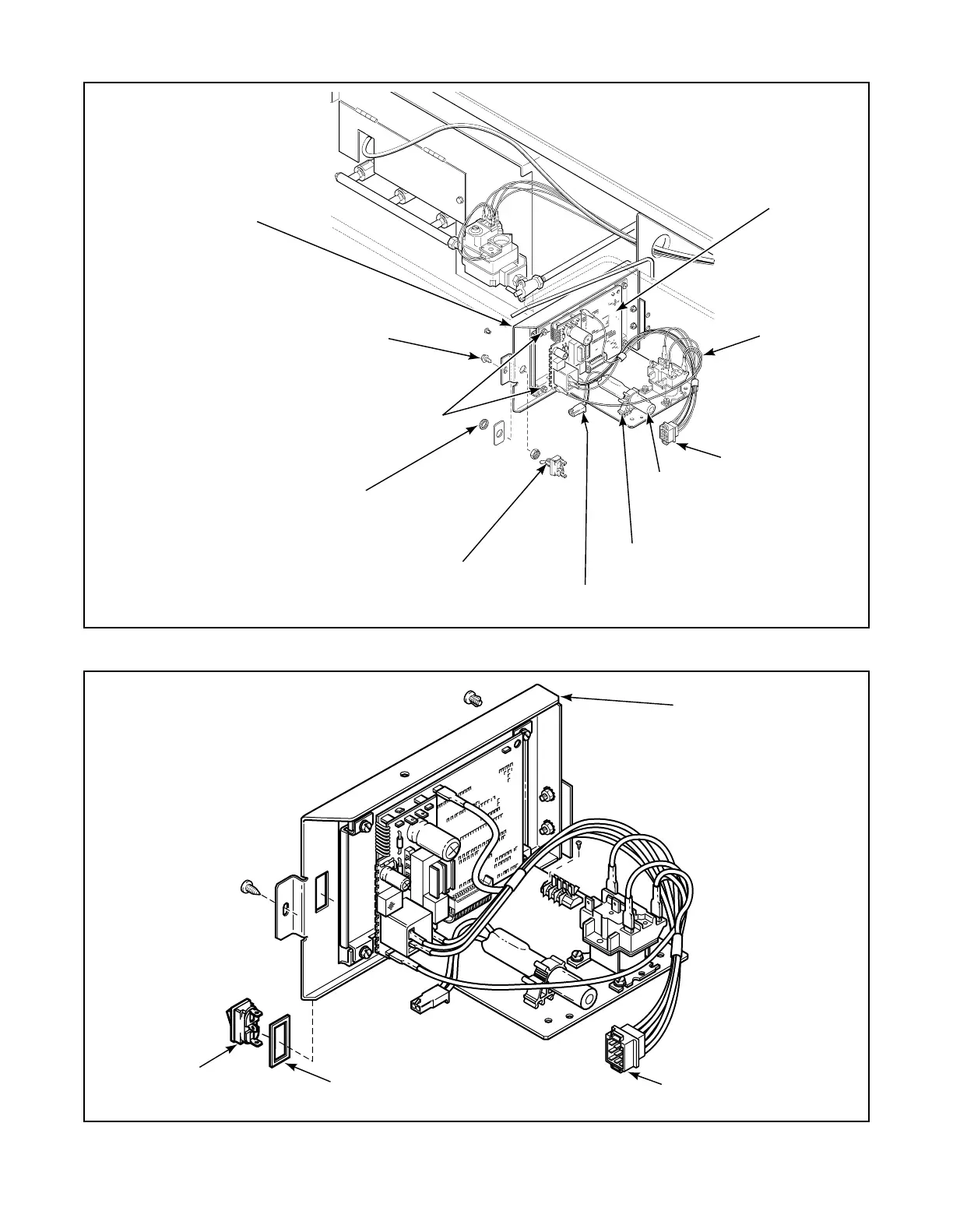

Figure 8
Figure 9
PLASTIC
CLAMP
T094SE3C
BATTERY
REVERSING/
NON REVERSING
SWITCH
BATTERY
PLUG
RETAINING
SCREW
MOUNTING
SCREWS
(4)
ELECTRONIC
CONTROL
WIRE
HARNESS
NUT
ELECTRONIC
CONTROL BRACKET
CONTROL
PLUG
SWITCH PLATE
(Reversing)
CONTROL
PLUG
T332PE3C
SWITCH
(Reversing)
ELECTRONIC
CONTROL
BRACKET
