Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

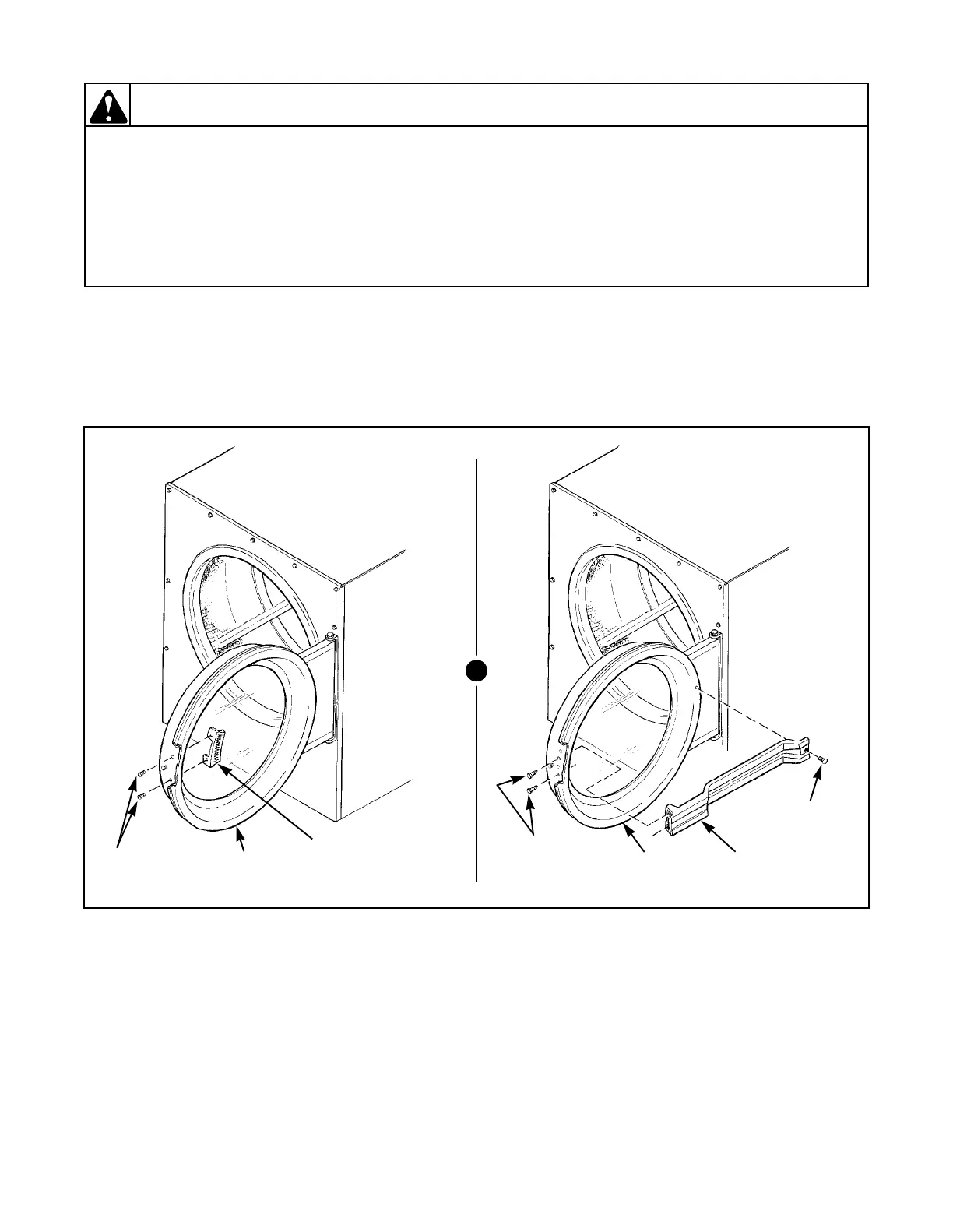

57. LOADING DOOR HANDLE
Refer to Figure 23.
a. Open loading door.
b. Remove screws holding door handle to door
frame.
Figure 23
SCREWS
LOADING
DOOR
DOOR
HANDLE
TU030-SV TU031-SV
LOADING
DOOR
BAR
ATTACHING
SCREW
BAR
ATTACHING
SCREW
DOOR
BAR
BAR STYLE
HANDLE STYLE
