Section 5 Service Procedures
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

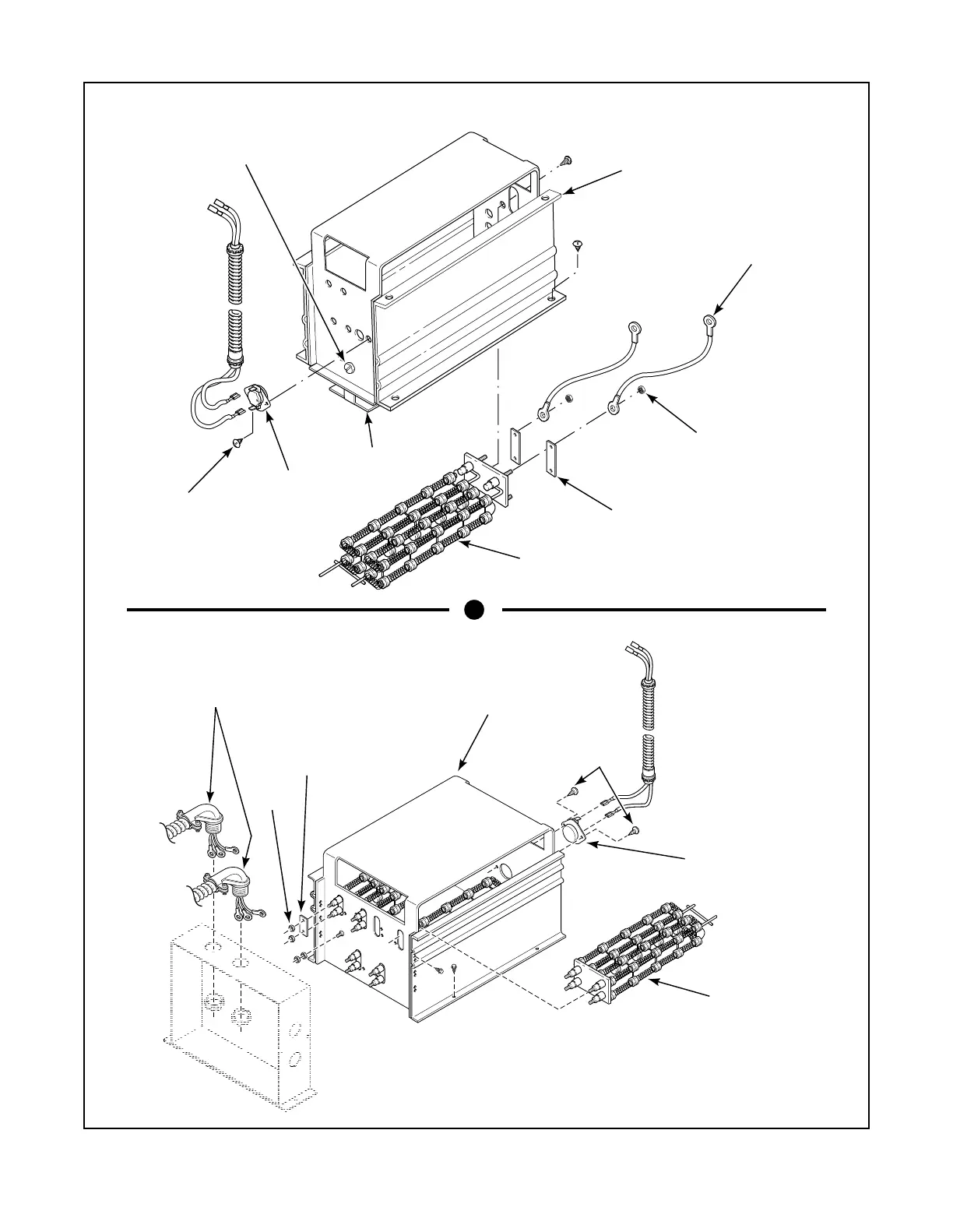

Figure 17
T231PE3D
NUT
BUS BAR
HEATER
ELEMENT
SCREW
HIGH LIMIT
THERMOSTAT
WIRES
HEATER
HOUSING
BOTTOM
GUARD
BOTTOM GUARD
ATTACHING SCREW
Older Models:
T422PE3A
NUT
BUS BAR
HEATER
ELEMENT
SCREW
HIGH LIMIT
THERMOSTAT
JUMPER
WIRES
HEATER
HOUSING
Newer Models:
