ALLIANCE UM202 series User Manual

Machine Capacity Dimensions [Refer to Figure 3 ]
E 16.5 in. [419 mm]
F 29.5 in. [749 mm]
G 21.5 in. [546 mm]
H 40.5 in. [1029 mm]
Table 3

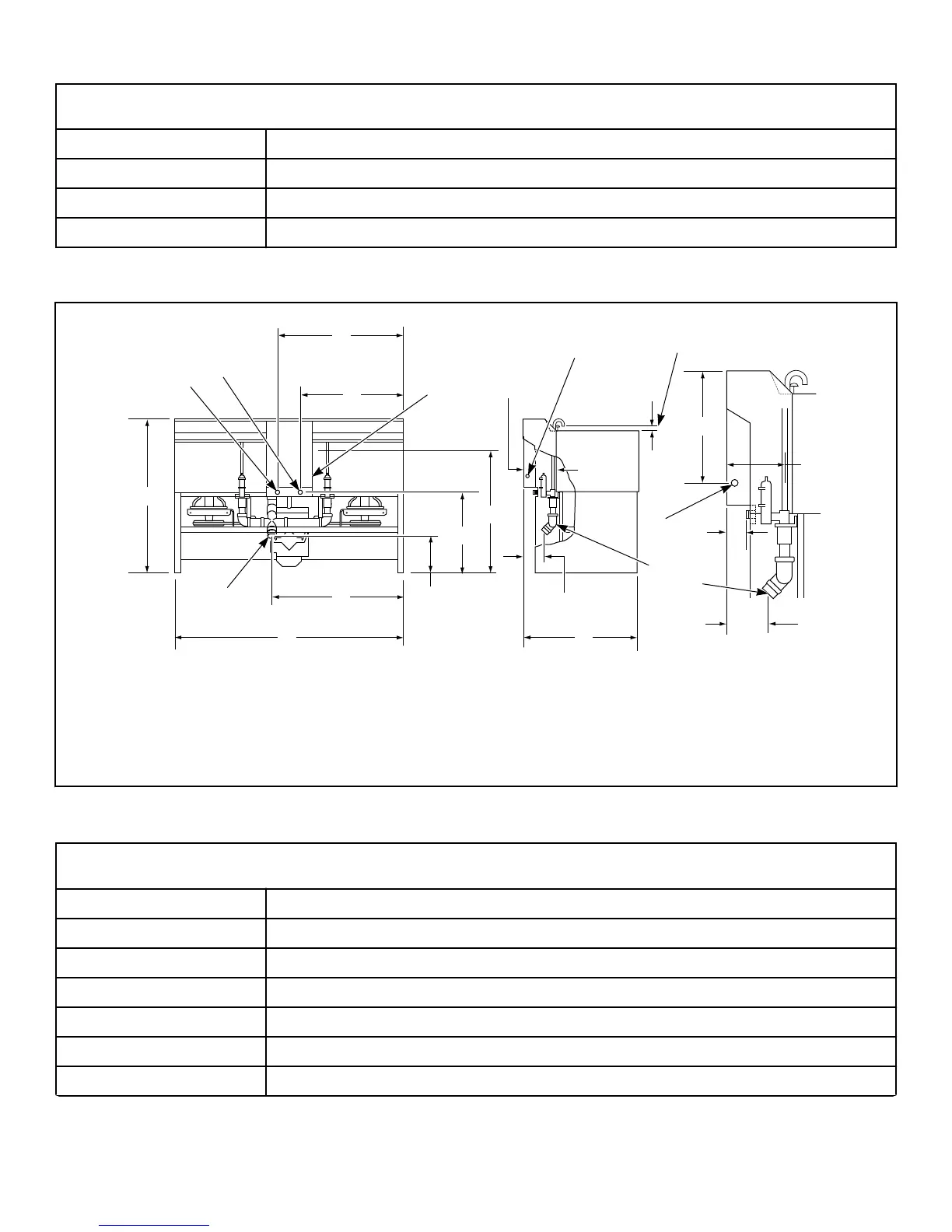

Plumbing Dimensions
CAR21N_SVG
P
O
N
M
L
K
J
I
H
G
F
E
D
C
B
A
5
4
4
4
3
2
1
1
1
1. Drain Outlet
2. Hot Water Inlet
3. Cold Water Inlet
4. Electrical Connection
5. Overflow Level
Figure 4
Plumbing Dimensions [Refer to Figure 4 ]
A 40 in. [1016 mm]
B 33.47 in. [852 mm]
C 26.47 in. [675 mm]
D 34.5 in. [876 mm]
E 60 in. [1524 mm]
F 9.75 in. [248 mm]
G 21 in. [533 mm]
Table 4 continues...
Specifications and Dimensions
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 F8221501ENR4
