Operation
Control Panel

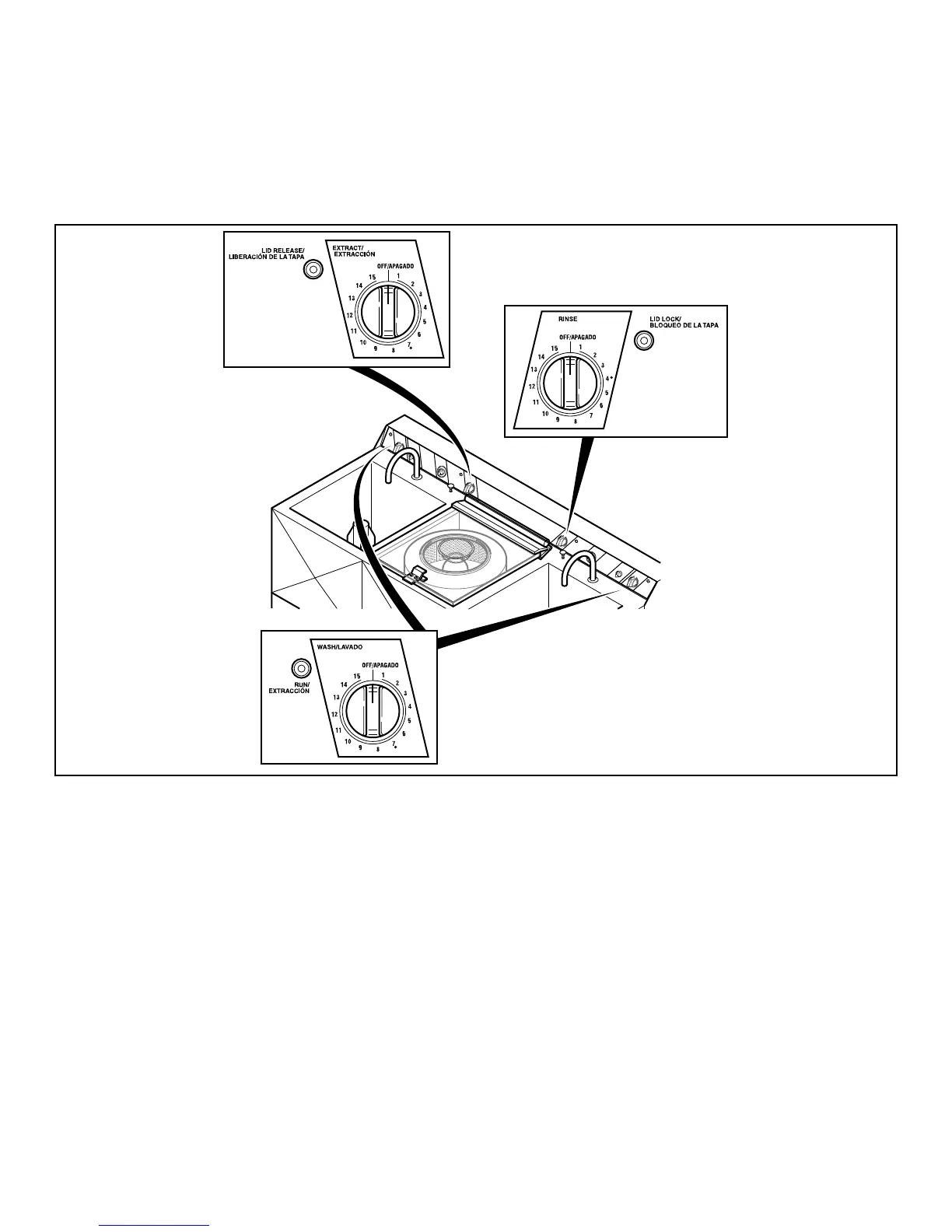

Figure 10 shows the control panel for both standard and car wash
top-loading machines.
Figure 10
The RUN indicator light indicates a wash cycle is in progress.
The WASH timer can be set to up to 15 minutes for wash cycle
times. Machine will start automatically after timer is set. Agita-
tion will begin when selected water level is reached.
The LID LOCK indicator light indicates when the lid is proper-
ly closed when the extract-rinse compartment is rotating.
After extract-rinse basket stops spinning, pressing the LID RE-
LEASE button unlocks the extract-rinse compartment’s lid.
The EXTRACT and RINSE timers allow operator to set the
amount of time for extract and rinse cycles. Machine will start
automatically after timers are set. The rinse will begin 30 seconds
after basket begins to spin.
Operating Instructions
1. Turn on the main power source [circuit breaker].
2. Close drain of wash compartment to be used. Refer to Figure
11 .
