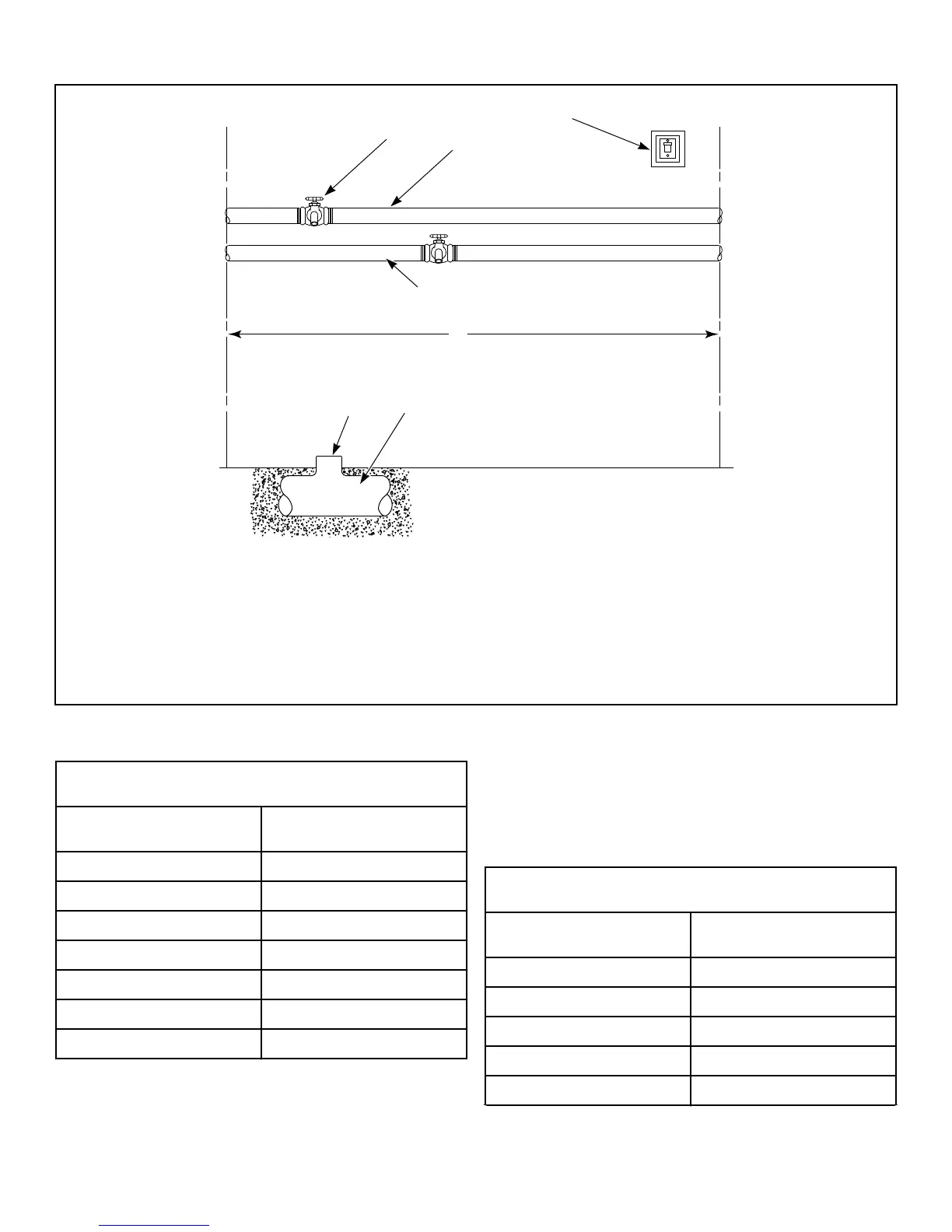

Rear View of Wall
1. 15 Amp – Three-Phase Circuit Breaker
2. 0.75 in. [19 mm] Water Outlet
3. 0.75 in. [19 mm] min. Cold Water Supply Line
4. 0.75 in. [19 mm] min. Hot Water Supply Line
5. 60 in. [152 mm] Required
6. 2 in. [51 mm] min. Waste Line Tee
7. 4 in. [102 mm] min. Waste Line
Figure 6
Drain Line Sizing / Minimum Drain ID
Number of Machines Drain Line Size
1 2 in. [51 mm]
2 3 in. [76 mm]
3 4 in. [102 mm]
4 4 in. [102 mm]
5 4 in. [102 mm]
6 4 in. [102 mm]
7 – 10 6 in. [152 mm]
Table 9
Water Connection
Connections should be supplied by a hot and a cold water line of
at least the sizes shown in the Water Supply Line Sizing table.
Refer to Table 10 .
Water Supply Line Sizing
Number of Machines Drain Line Size
1 0.75 in. [19 mm]
2 1 in. [25 mm]
3 1.25 in. [32 mm]
4 1.5 in. [38 mm]
5 1.5 in. [38 mm]
Table 10 continues...
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 F8221501ENR4
