Water Supply Line Sizing
Number of Machines Drain Line Size
6 – 10 2 in. [51 mm]
Table 10
To connect water service to machine with rubber hoses, use the
following procedure:
1. Before installing hoses, flush the water system for at least two
minutes.
2. Check filters in the machine’s inlet hoses for proper fit and
cleanliness before connecting.
3. Hang hoses in a large loop; do not allow them to kink.
If additional hose lengths are needed, use flexible hoses with
screen filters.
WARNING
To prevent personal injury, avoid contact with inlet
water temperatures higher than 125° Fahrenheit [51°
Celsius] and hot surfaces.
W748
Install vacuum breakers and check valves when required by local
codes.

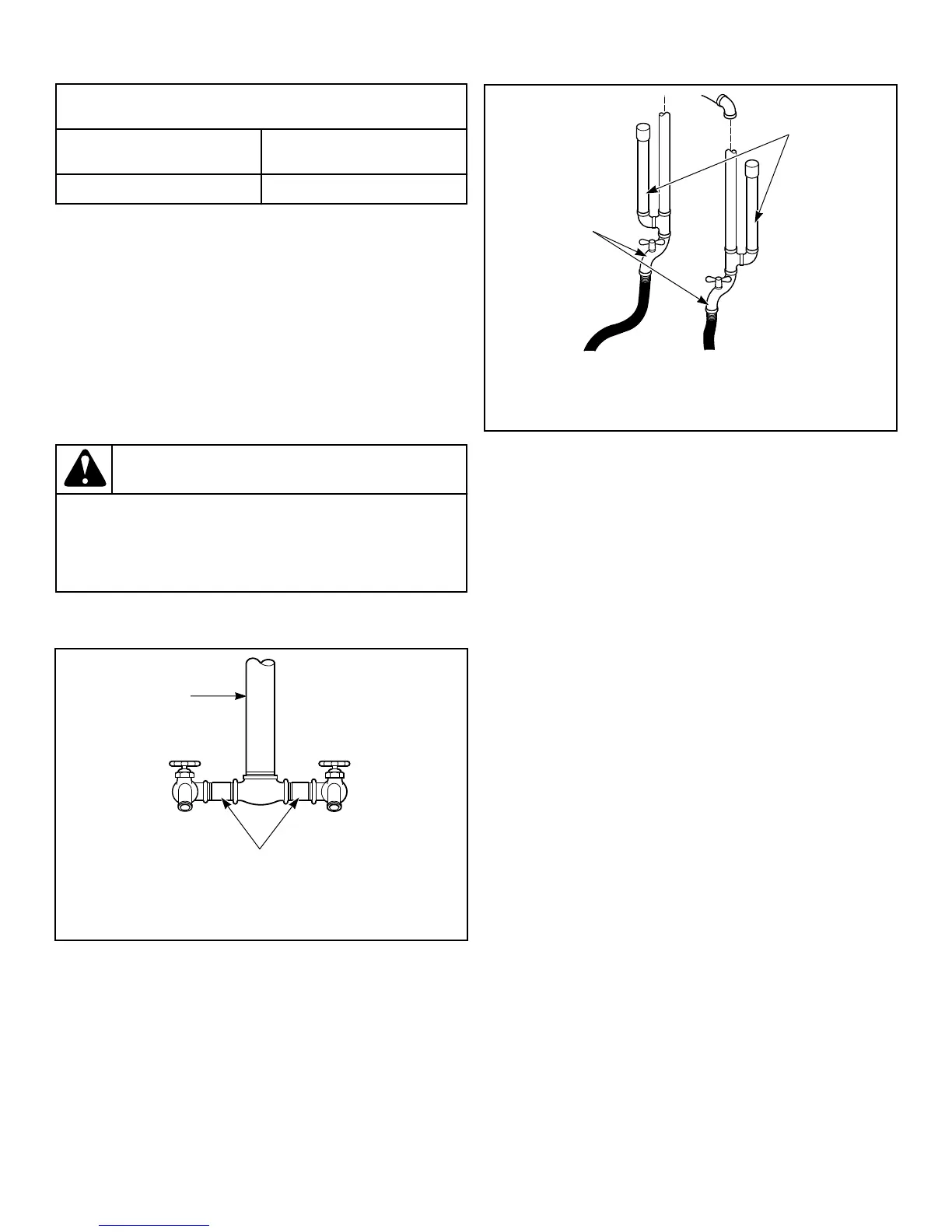

1. 0.75 in. [19 mm] Cold and Hot Water Supply Line
2. 0.5 in. [13 mm] Faucet Lines
Figure 7
Install a screen filter in each hose to keep rust and other foreign
particles out of the solenoid valves.
Suitable air cushions should be installed in supply lines to pre-
vent “hammering” Refer to Figure 8 .
1. Water Supply Faucets
2. Risers [Air Cushions]
Figure 8
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 F8221501ENR4
