AT-8012M-QS The AT-8012M-QS is a 12-port 10/100Base-TX managed Fast Ethernet
switch with one module expansion slot and operates without a fan. The
expansion slot is compatible with 100Base and 1000Base fiber optic and
twisted pair port expansion modules and the AT-STACKM stacking
module. The 10/100Base-TX twisted pair ports feature RJ-45 connectors
with a maximum operating distance of 100 meters (328 feet). Refer to
”10/100Base-TX Twisted Pair Ports” on page 24 and ”Module Expansion
Slots” on page 29 for additional information.
Figure 1 illustrates the front and back panels of the AT-8012M-QS switch.

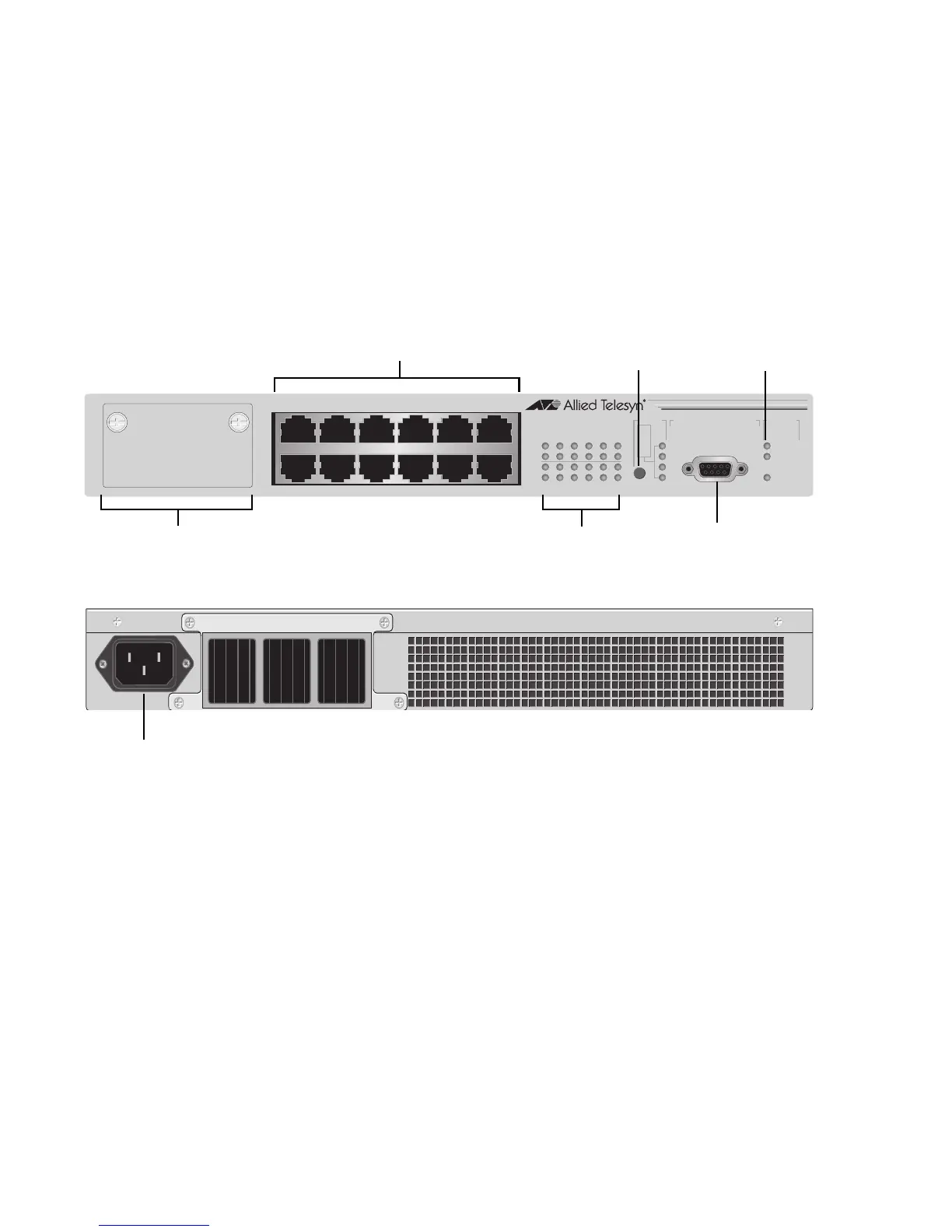

Figure 2. AT-8012M-QS Front and Back Panels
1357911
24681012
1357911
24681012
LINK
MODE
LINK
MODE
COL
100
FULL
ACT
FAU LT
MASTER
PWR
MODE
RS-232 TERMINAL PORT
STATUS
AT-8012M-QS
10Base-T / 100Base-TX Fast Ethernet Switch
RS-232
Terminal Port
Module Expansion Slot
10/100Base-TX Ports
Status LEDs
LED Mode
Select Button
AC Power
Connector
LED Mode
Select Button
