AT-8000 Series Fast Ethernet Switches Installation Guide
19
AT-8026FC The AT-8026FC is a 24-port 10/100Base-TX ports and two-port 100Base-
FX managed Fast Ethernet switch. The 100Base-FX fiber optic ports
feature SC connectors and a maximum operating distance of up to 2
kilometers (1.24 miles) or 412 meters (1,360 feet), depending on the
duplex mode. The 10/100Base-TX twisted pair ports feature RJ-45
connectors and a maximum operating distance of 100 meters (328 feet).
Refer to ”100Base-FX Fiber Optic Ports” on page 23 and ”10/100Base-TX
Twisted Pair Ports” on page 24 for additional information.

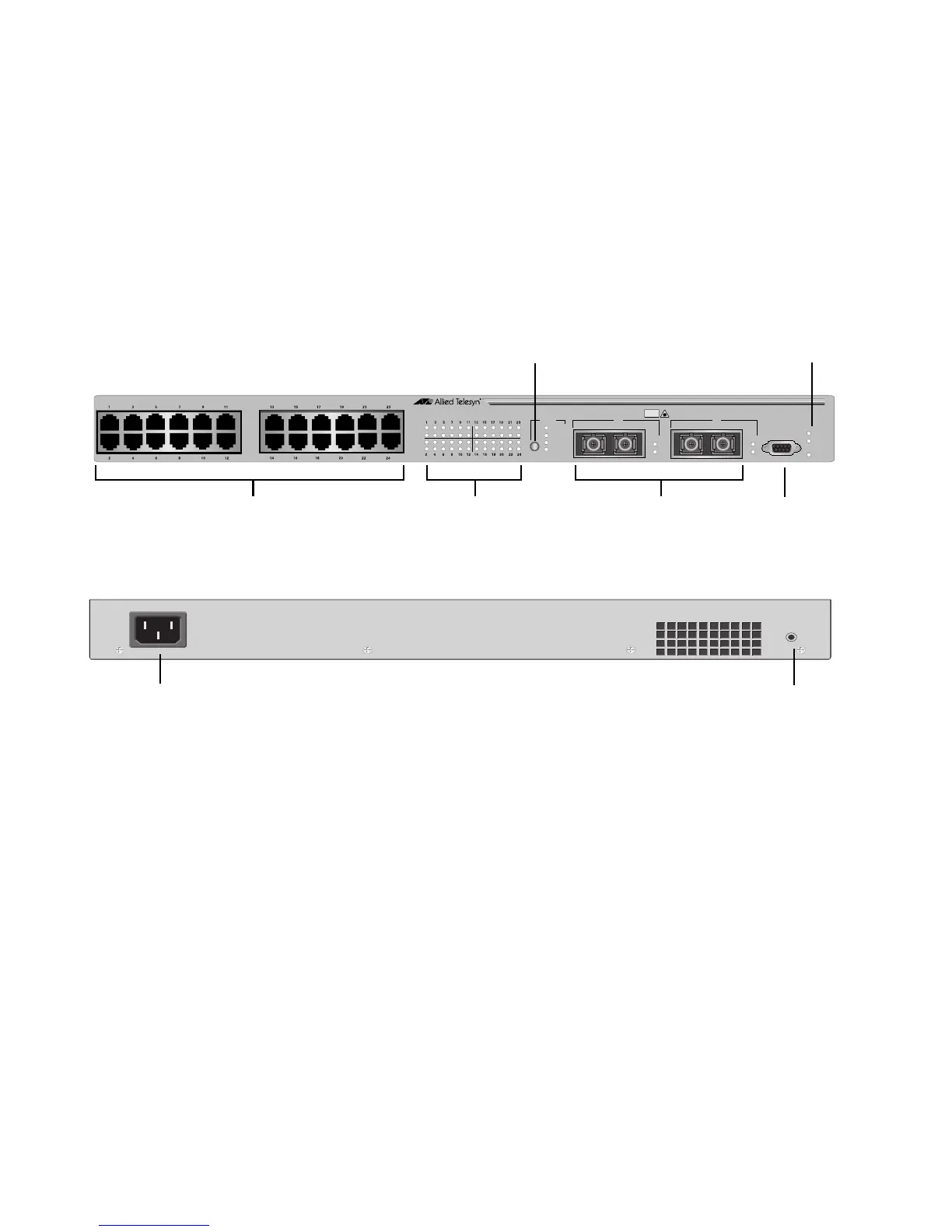

Figure 8 illustrates the front and back panel of the AT-8026FC switch.
Figure 8. AT-8026FC Front and Back Panels
Link
Mode
Link
Mode
100
FULL
ACT
MODE
COL
LINK
MODE
25
LINK
MODE
FAULT
MASTER
PWR
AT-8026FC
10Base-T/ 100Base-TX Fast Ethernet Switch
RS-232 TERMINAL PORT
CLASS 1
LASER PRODUCT
DO NOT STARE
INTO BEAM
TX TXRX RX
26
100Base-FX RS-232
10/100Base-TX Ports
Port LEDs
Terminal Port
System LEDs
LED Mode Select Button
Fiber Optic Ports
RESET
AC Power
Connector
Reset
Button
