Network Topologies
This section illustrates several of the network topologies you can create
with the AT-8000 Series Fast Ethernet Switches.
Power
Workgroup
Topology
The topology shown in Figure 14 is commonly referred to as a power
workgroup topology. Each workstation or end-node is connected
directly to a port on an AT-8024 Fast Ethernet Switch. Each end-node has
a dedicated data link to the switch for best performance and reliability.
The devices can operate at either 10 Mbps or 100 Mbps.

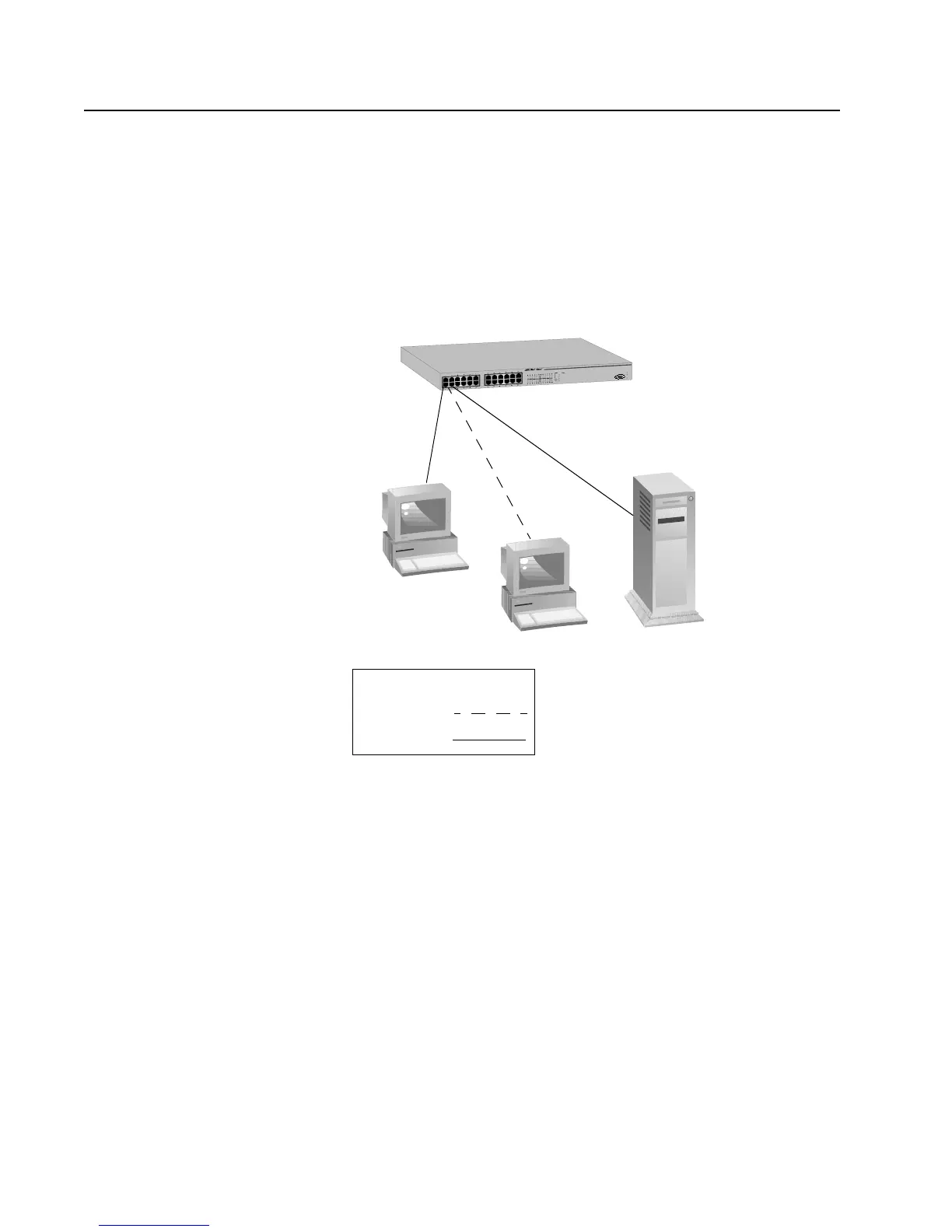

Figure 14. Power Workgroup Topology
