AT-8000 Series Fast Ethernet Switches Installation Guide
13
Model Descriptions
AT-8012M The AT-8012M is a 12-port 10/100Base-TX managed Fast Ethernet switch
with one module expansion slot. The expansion slot is compatible with
100Base and 1000Base fiber optic and twisted pair port expansion
modules and the AT-STACKM stacking module. The 10/100Base-TX
twisted pair ports feature RJ-45 connectors with a maximum operating
distance of 100 meters (328 feet). Refer to ”10/100Base-TX Twisted Pair
Ports” on page 24 and ”Module Expansion Slots” on page 29 for
additional information.

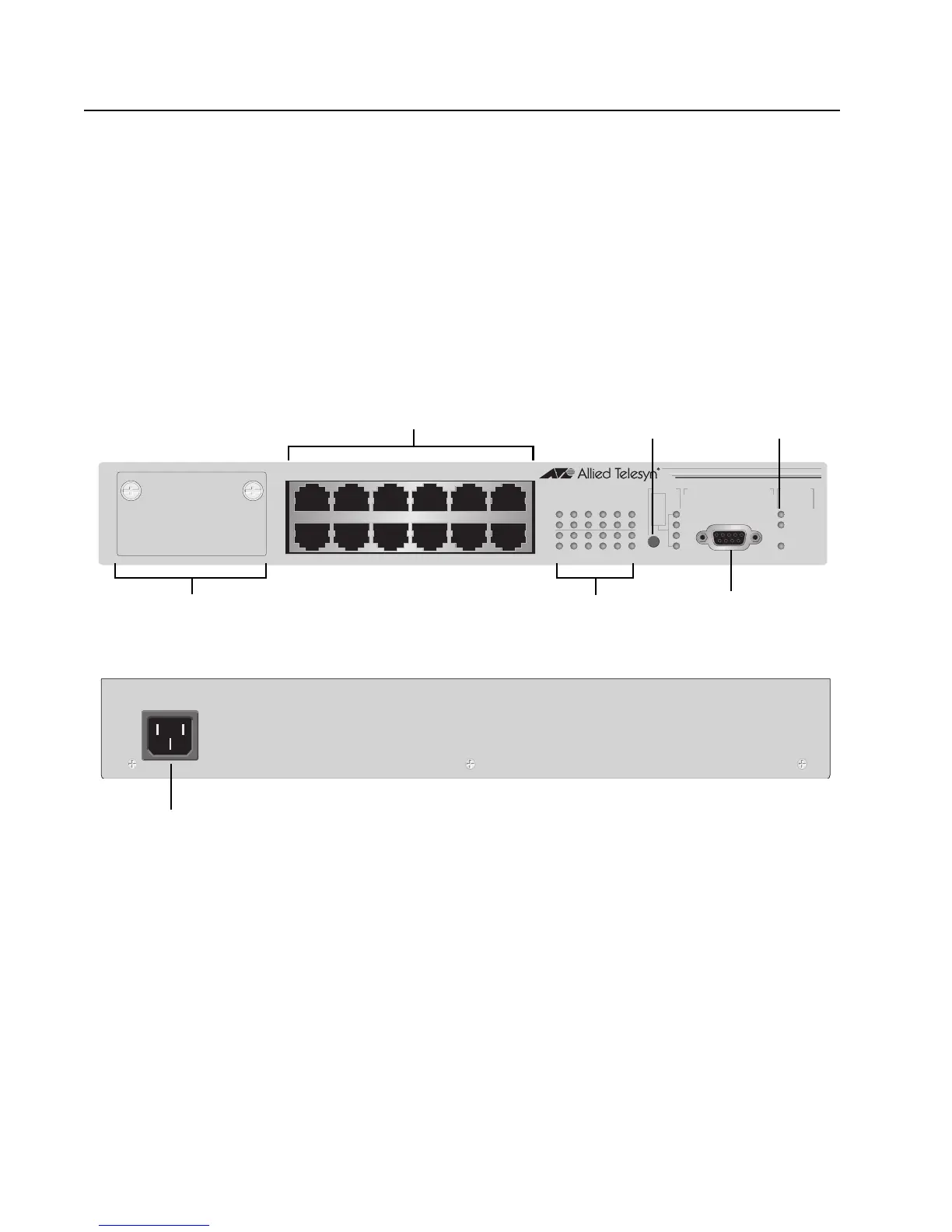

Figure 1 illustrates the front and back panels of the AT-8012M switch.
Figure 1. AT-8012M Front and Back Panels
1357911
24681012
1357911
24681012
LINK
MODE
LINK
MODE
COL
100
FULL
ACT
FAULT
MASTER
PWR
MODE
RS-232 TERMINAL PORT
STATUS
AT-8012M
10Base-T / 100Base-TX Fast Ethernet Switch
RS-232
Terminal Port
Module Expansion Slot
10/100Base-TX Ports
Status LEDs
LED Mode
Select Button
AC Power
Connector
LED Mode
Select Button
