AT-8000 Series Fast Ethernet Switches Installation Guide
87
RS-232 Terminal Port Pinouts

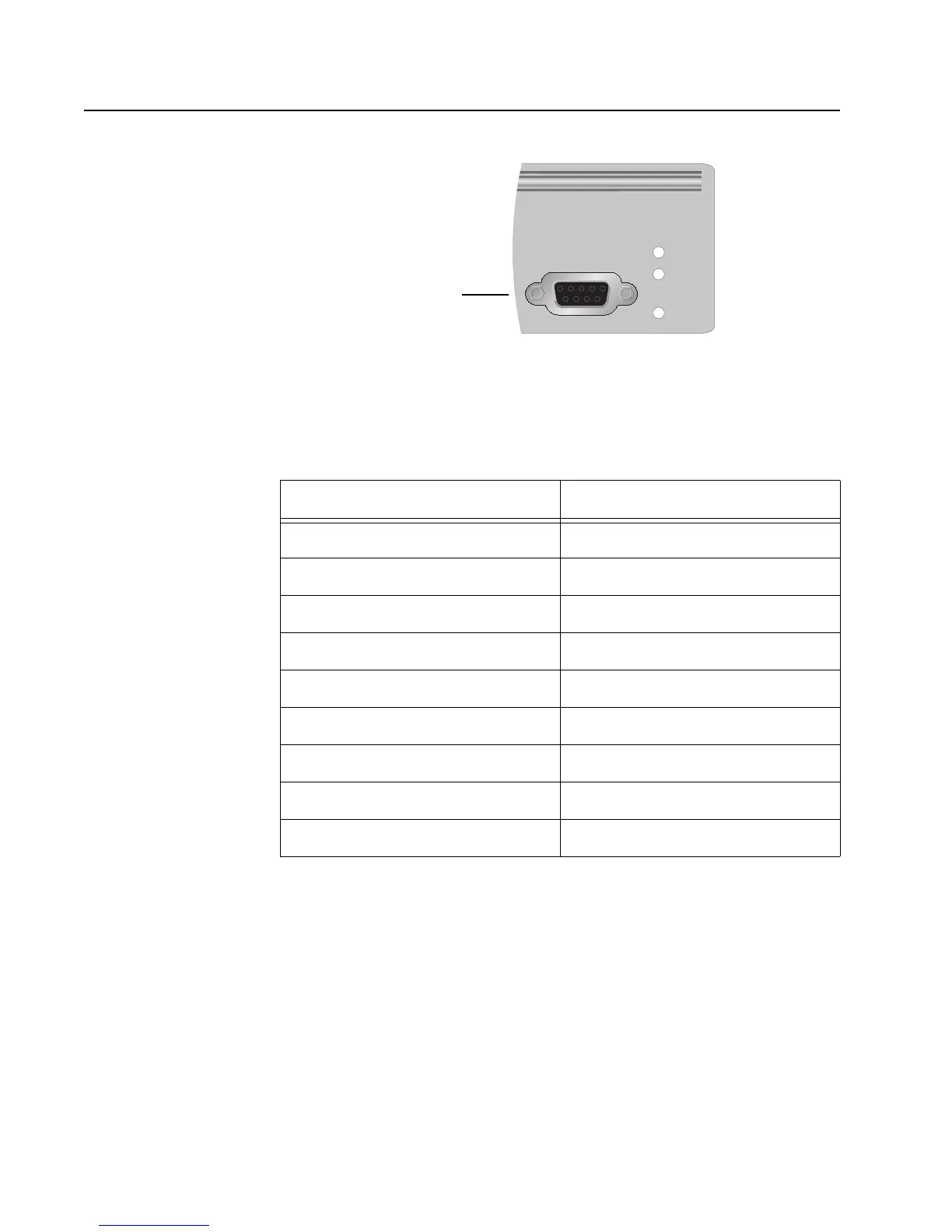

Figure 41. Table 12 lists the pin signals on the RS-232 Terminal Port.
Table 12. RS-232 Terminal Port Pin Signals
Pin Signal
1 Data Carrier Detect
2 Transmit Data
3 Receive Data
4 Data Set Ready
5Ground
6 Data Terminal Ready
7 Clear to Send
8 Request to Send
9 Ring Indicator
K
FAULT
MASTER
RS-232 TERMINAL PORT
PWR
RS-232 Terminal Port
