5. Install the second rackmounting bracket on the other side of the
switch using the four remaining screws.
6. Mount the switch in the 19-inch rack using standard screws (not
provided).

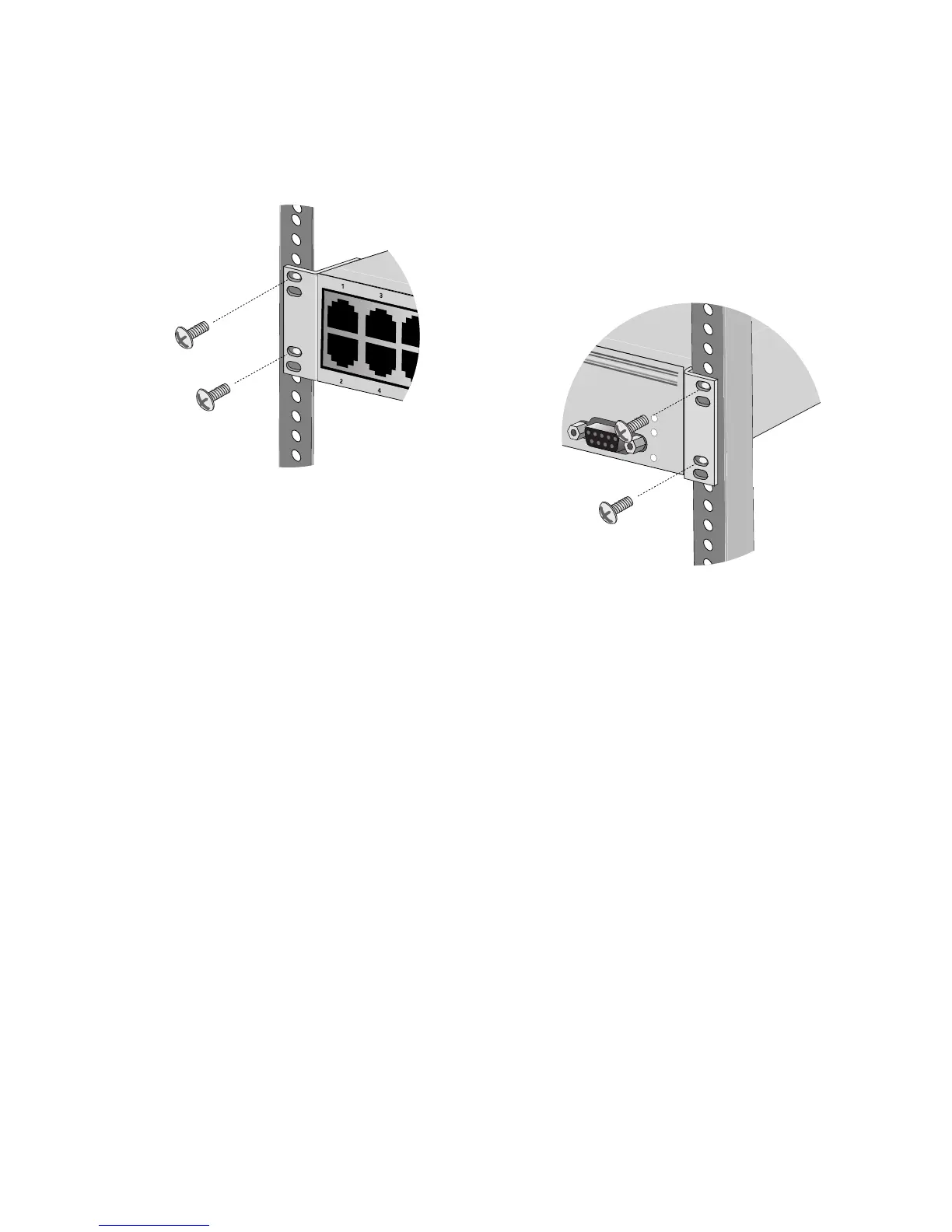

Figure 20. Mounting the Switch in a Rack
FAULT
MASTER
PWR
RS-232 TERMINAL PORT
