Allworx 9224 - 1 Getting Started; Contents Checklist; Connect the Phone

Phone Guide – 9224
Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
Revised: April 16, 2013
Page 1
1 Getting Started
1.1 Contents Checklist
Unpack the Allworx phone and applicable accessories, identify each item
with the following checklist and inspect for missing items.
• Allworx phone and base: Attach the base to the back of the phone.
See 2.1 Base Assembly and Adjusting the Angle of the Phone for
more information.
• Handset with cord: Attach the cord to the jack on the back of the
Allworx phone.
• Phone Functions Reference Card: Attach this quick operating
guide to the between the base and back of phone.
• Phone Guide: Read this document. Save for reference.
The Allworx phone requires, but does not include:
• Ethernet Cable: Connects the phone to the network, or
• Power Supply: Provides power to the Allworx phone - rated 24VDC,
400 mA.

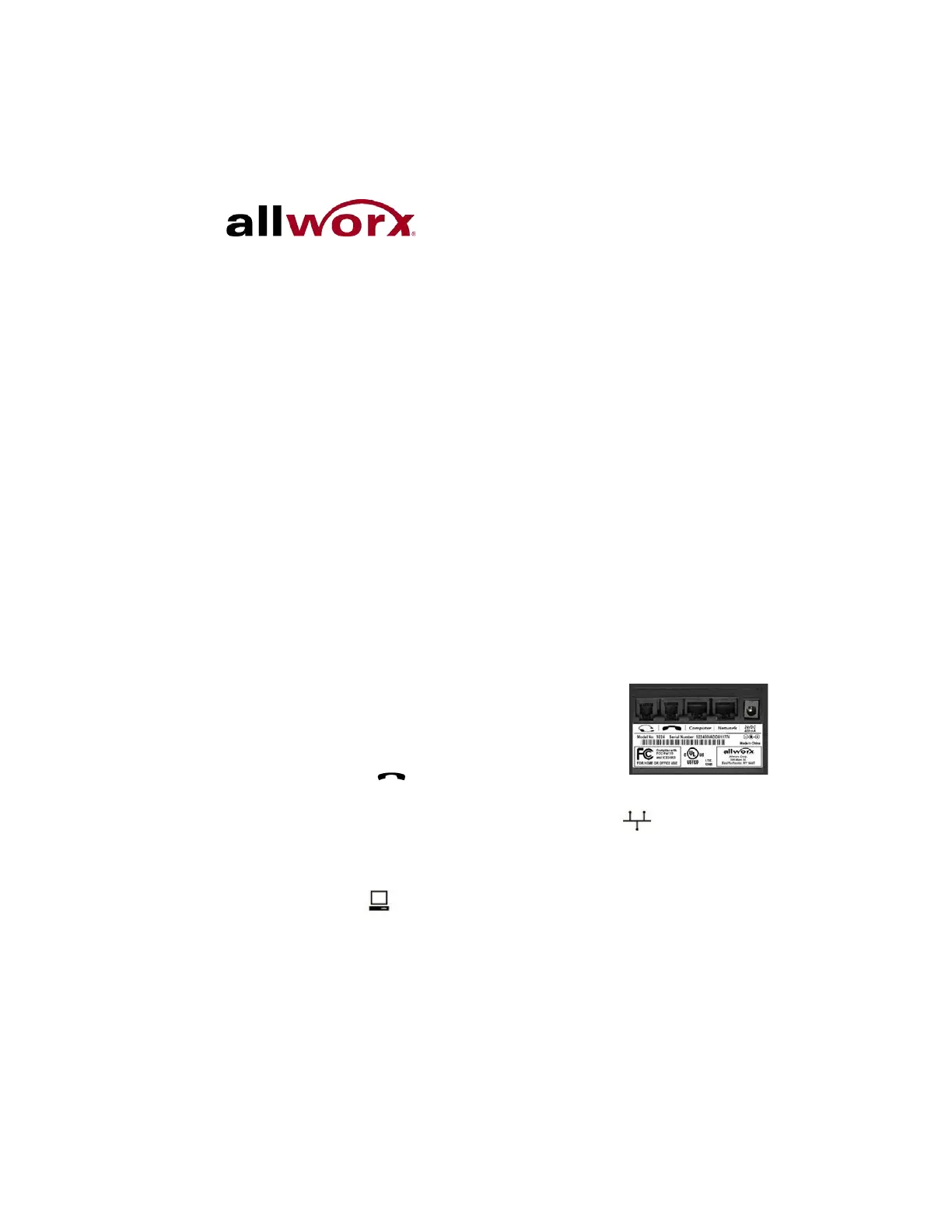

1.2 Connect the Phone
To connect the phone:
1. Insert the handset connector to the Handset jack on
the back of the phone using the coiled handset cord
into the handset ( ) plug.
2. Plug one end of the Ethernet cable into the Network jack on the back of
the phone. Plug the other end into the Ethernet jack ( ) on the wall.
CAUTION: Do not connect the phone to an analog phone line.
Users can connect a computer to the network through the phone’s
Computer jack ( ).
3. Connect the power supply. The phone initializes.
